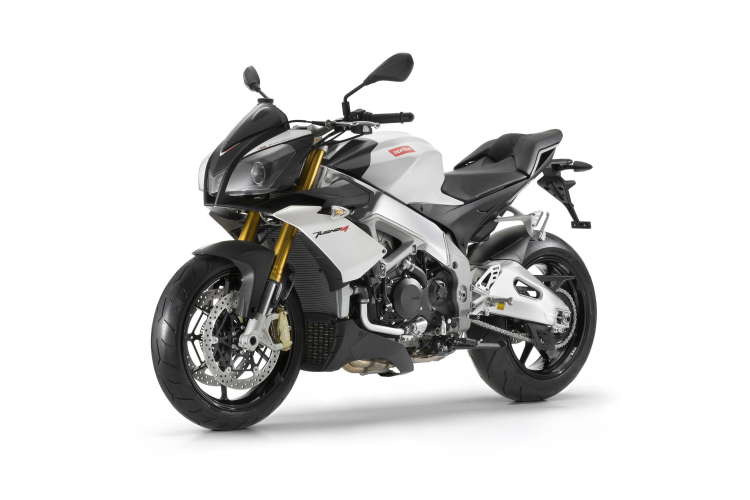

Aprilia Tuono V4 R ABS 2015 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 999.60 ccm (61.00 cubic inches) |
| Engine Type | Longitudinal 65° V-4 |
| Engine Details | V4, four-stroke |
| Power | 170.00 HP (124.1 kW)) @ 11500 RPM |
| Torque | 111.50 Nm (11.4 kgf-m or 82.2 ft.lbs) @ 9500 RPM |
| Max Rpm | 12300 |
| Compression | 13.0:1 |
| Bore X Stroke | 78.0 x 52.3 mm (3.1 x 2.1 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Airbox with front dynamic air intakes. 4 Weber-Marelli 48-mm throttle bodies with 4 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R |
| Ignition | Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and “stick-coil” type coils |
| Lubrication System | Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling) |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Multiplate wet clutch with mechanical slipper system. |
| Driveline | Straight cut gears and integrated flexible coupling, drive ratio: 73/44 primary drive. Chain 42/16 final drive. |
| Fuel Consumption | 8.07 litres/100 km (12.4 km/l or 29.15 mpg) |
| Greenhouse Gases | 187.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Emission Details | Integrated catalytic converter. Euro 3. |
| Exhaust System | 4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter (Euro 3) |
| Frame Type | Aluminium dual beam chassis with cast and pressed sheet elements. (Sachs steering damper on APRC version) |
| Front Brakes | Double disc. ABS. Floating stainless steel discs with lightweight stainless steel rotor with 6 studs. Brembo radial callipers with 4 diam. horizontally opposed 32 mm pistons. Sintered pads. Axial pump master cylinder and metal braided brake hoses. |
| Front Brakes Diameter | 320 mm (12.6 inches) |
| Front Suspension | Sachs upside down front fork with diam. 43 mm stanchions. Forged aluminium calliper mountings for radial callipers. Completely adjustable spring preload and hydraulic compression and rebound damping. |
| Front Tyre | 120/70-ZR17 |
| Front Wheel Travel | 120 mm (4.7 inches) |
| Rake | 25.0° |
| Rear Brakes | Single disc. ABS. Brembo floating calliper with two and #61638;32 mm isolated pistons. Pump with integrated tank and metal braided hose. |
| Rear Brakes Diameter | 220 mm (8.7 inches) |
| Rear Suspension | Sachs piggy back monoshock with completely adjustable: spring preload and hydraulic compression and rebound damping. APS progressive linkage |
| Rear Tyre | 190/55-ZR17 |
| Rear Wheel Travel | 130 mm (5.1 inches) |
| Trail | 108 mm (4.2 inches) |
| Wheels | Cast aluminium wheels with 3 split spoke design. Front.:3.5”X17” Rear:6.00”X17” |
| Dry Weight | 183.0 kg (403.4 pounds) |
| Fuel Capacity | 18.50 litres (4.89 gallons) |
| Ground Clearance | 125 mm (4.9 inches) |
| Overall Height | 1,090 mm (42.9 inches) |
| Overall Length | 2,065 mm (81.3 inches) |
| Power Weight Ratio | 0.9290 HP/kg |
| Reserve Fuel Capacity | 4.00 litres (1.06 gallons) |
| Seat Height | 835 mm (32.9 inches) If adjustable, lowest setting. |
| Color Options | Black, white |
| Electrical | Flywheel mounted 420W alternator with rare earth magnets. |
| Factory Warranty | 2-year unlimited-mileage warranty |
| Instruments | Analogue/digital |
| Starter | Electric |
