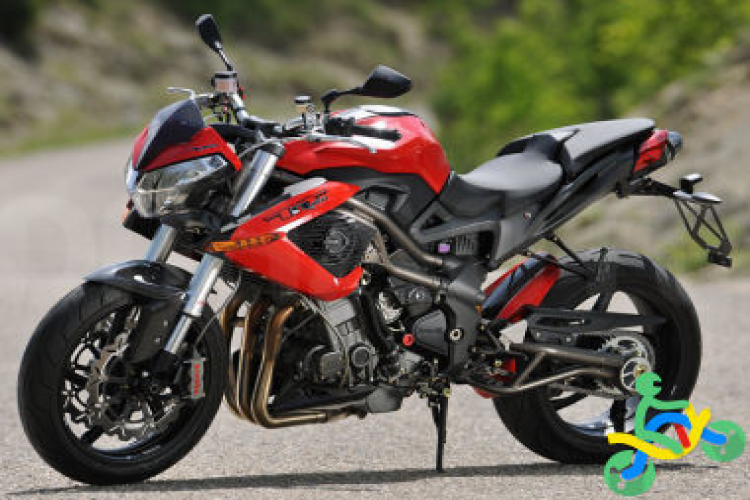

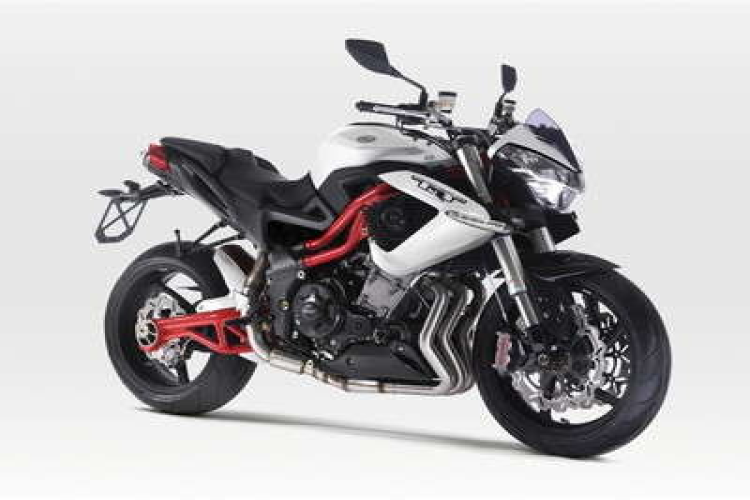

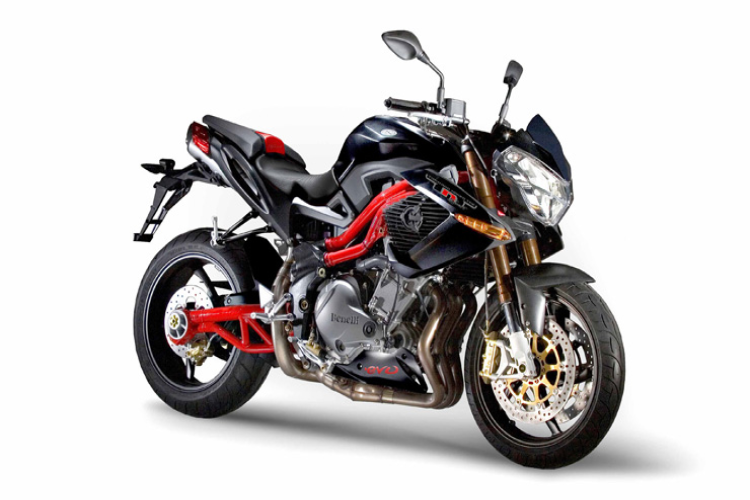

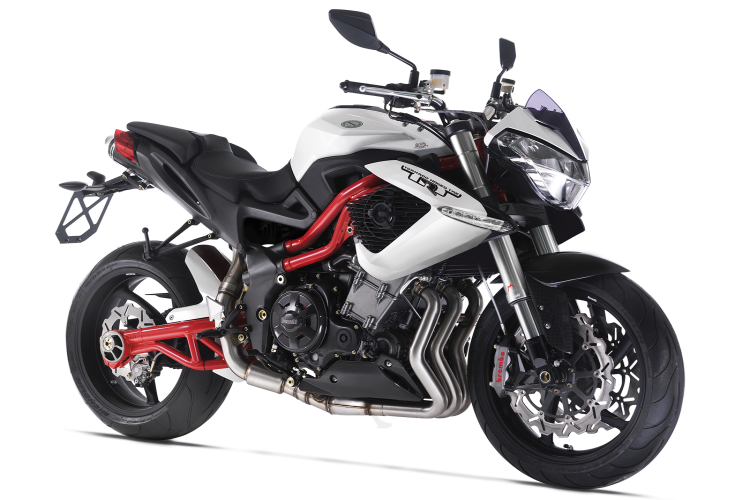

Benelli TNT 1130 R 2017 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Bore X Stroke | 88.0 x 62.0 mm (3.5 x 2.4 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Electronic injection with three throttle bodies ø53 mm |
| Ignition | Walbro ECUA-1 |
| Lubrication System | Wet sump |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Dry clutch with hydraulic command with slipper device |
| Driveline | 44/79 primary drive |
| Emission Details | Euro 3 |
| Exhaust System | With catalytic converter and oxigen sensor |
| Displacement | 1131.00 ccm (69.01 cubic inches) |
| Engine Type | Double overhead camshaft with balancer shaft |
| Engine Details | In-line three, four-stroke |
| Power | 157.80 HP (115.2 kW)) @ 10200 RPM |
| Torque | 120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 8400 RPM |
| Compression | 12.5:1 |
| Frame Type | Decomposable, front steel trestle, rear aluminium alloy casting |
| Front Brakes | Double disc. Floating Wave disk mm with radial monoblock 4 pistons calipers |
| Front Brakes Diameter | 320 mm (12.6 inches) |
| Front Suspension | 50 mm upside-down fork, with hydraulic rebound / compression and spring preload adjustments |
| Front Tyre | 120/70-17 |
| Front Wheel Travel | 120 mm (4.7 inches) |
| Rake | 25.0° |
| Rear Brakes | Single disc. Wave disk with double piston caliper |
| Rear Brakes Diameter | 240 mm (9.4 inches) |
| Rear Suspension | Steel tube trestle swingarm, rear dumper with hydraulic adjustment (rebound, high and low speed compression) and spring preload assembled with progressive link |
| Rear Tyre | 180/55-17 |
| Rear Wheel Travel | 120 mm (4.7 inches) |
| Trail | 95 mm (3.7 inches) |
| Wheels | Aluminium alloy |
| Dry Weight | 205.0 kg (451.9 pounds) |
| Fuel Capacity | 16.00 litres (4.23 gallons) |
| Ground Clearance | 135 mm (5.3 inches) |
| Oil Capacity | 4.00 litres (0.26 quarts) |
| Overall Height | 1,050 mm (41.3 inches) |
| Overall Length | 2,100 mm (82.7 inches) |
| Power Weight Ratio | 0.7698 HP/kg |
| Reserve Fuel Capacity | 4.00 litres (1.06 gallons) |
| Seat Height | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 215.0 kg (474.0 pounds) |
| Overall Width | 790 mm (31.1 inches) |
| Color Options | White/red, red/titanium |
| Comments | Italian brand. |
| Starter | Electric |
