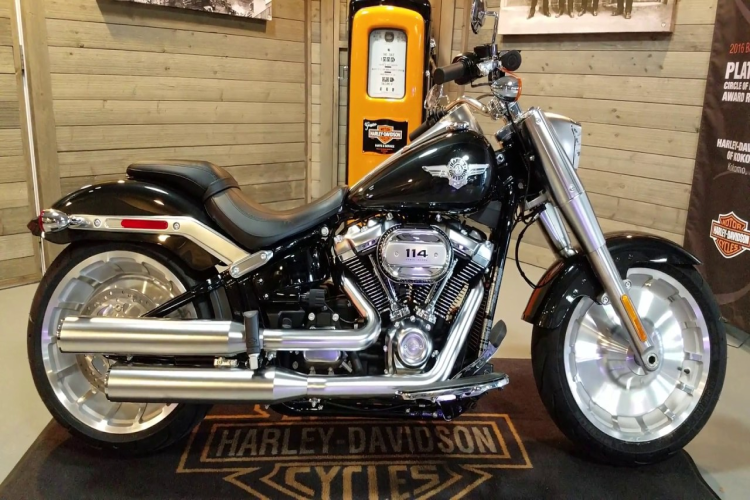

Harley-Davidson Softail Fat Boy 114 2018 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1868.00 ccm (113.99 cubic inches) |
| Engine Type | Milwaukee-Eight114 Big Twin |
| Engine Details | V2, four-stroke |
| Power | 94.00 HP (68.6 kW)) @ 5020 RPM |
| Torque | 155.00 Nm (15.8 kgf-m or 114.3 ft.lbs) @ 3000 RPM |
| Compression | 10.5:1 |
| Bore X Stroke | 102.0 x 114.0 mm (4.0 x 4.5 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection |
| Cooling System | Air |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Primary chain, 34/46 ratio |
| Fuel Consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse Gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | 2-into-2 staggered; catalyst in header |
| Front Brakes | Double disc. ABS. 4-piston. |
| Front Suspension | Telescopic fork |
| Front Tyre | 160/60-R18 |
| Rake | 30.0° |
| Rear Brakes | Single disc. ABS. 2-piston. |
| Rear Suspension | Twin shocks |
| Rear Tyre | 240/40-R18 |
| Trail | 104 mm (4.1 inches) |
| Wheels | Machined, Lakester cast aluminum |
| Overall Length | 2,370 mm (93.3 inches) |
| Power Weight Ratio | 0.3092 HP/kg |
| Seat Height | 675 mm (26.6 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 317.0 kg (698.9 pounds) |
| Dry Weight | 304.0 kg (670.2 pounds) |
| Fuel Capacity | 18.93 litres (5.00 gallons) |
| Ground Clearance | 115 mm (4.5 inches) |
| Oil Capacity | 4.70 litres (0.31 quarts) |
| Color Options | Vivid Black, Black Tempest, Industrial Gray, Bonneville Salt Pearl, Wicked Red/Twisted Cherry, Legend Blue/Vivid Black, Legend Blue Denim |
| Instruments | Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
| Light | High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings |
| Starter | Electric |
