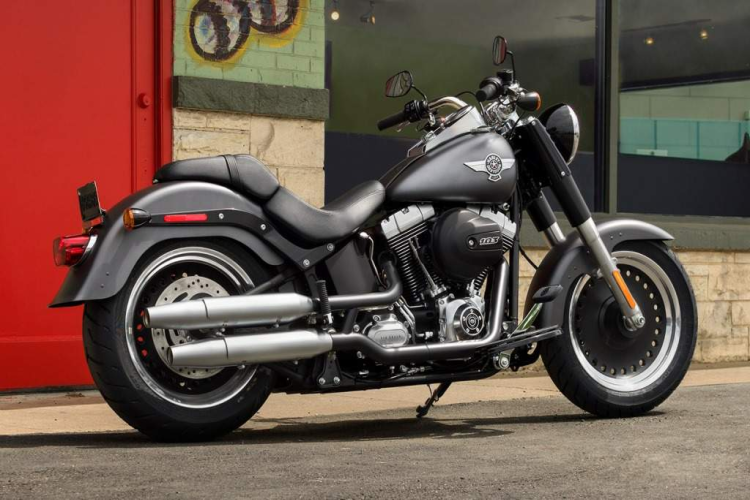

Harley-Davidson Softail Fat Boy Special 2016 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Power | 77.78 HP (56.8 kW)) @ 5250 RPM |
| Torque | 132.00 Nm (13.5 kgf-m or 97.4 ft.lbs) @ 3250 RPM |
| Compression | 9.6:1 |
| Bore X Stroke | 98.4 x 111.3 mm (3.9 x 4.4 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling System | Air |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Primary chain, 34/46 ratio |
| Fuel Consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse Gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Denim Black and Satin Chrome, over/under shotgun exhaust with dual mufflers |
| Displacement | 1690.00 ccm (103.12 cubic inches) |
| Engine Type | Air-cooled, Twin Cam 103B™ |
| Engine Details | V2, four-stroke |
| Valves Per Cylinder | 4 |
| Front Brakes | Double disc. 4-piston. ABS. |
| Front Tyre | 140/75-R17 |
| Rake | 31.6° |
| Rear Brakes | Single disc. 2-piston |
| Rear Tyre | 200/55-R17 |
| Trail | 147 mm (5.8 inches) |
| Wheels | Black, Bullet Hole Disc Cast Aluminum |
| Front Suspension | Telescopic fork |
| Rear Suspension | Twin shocks |
| Dry Weight | 318.0 kg (701.1 pounds) |
| Fuel Capacity | 18.90 litres (4.99 gallons) |
| Ground Clearance | 125 mm (4.9 inches) |
| Oil Capacity | 3.30 litres (0.22 quarts) |
| Overall Length | 2,385 mm (93.9 inches) |
| Power Weight Ratio | 0.2446 HP/kg |
| Seat Height | 670 mm (26.4 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 332.0 kg (731.9 pounds) |
| Color Options | Charcoal Pearl, Radioactive Green, Sand Cammo Denim, Black Denim, Vivid Black |
| Comments | Sold in Europe |
| Instruments | Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
| Light | High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings |
| Starter | Electric |
