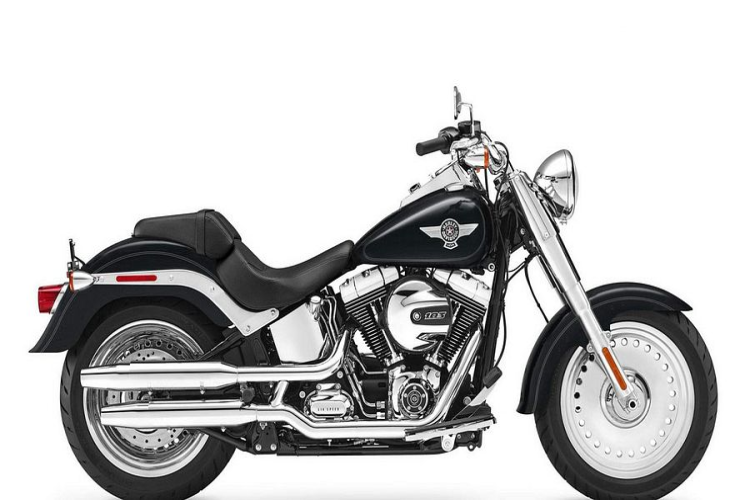

Harley-Davidson Softail Fat Boy 2017 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1690.00 ccm (103.12 cubic inches) |
| Engine Type | High Output Twin Cam 103B |
| Engine Details | V2, four-stroke |
| Power | 75.00 HP (54.7 kW)) @ 5020 RPM |
| Torque | 126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 3000 RPM |
| Compression | 9.6:1 |
| Bore X Stroke | 98.4 x 111.1 mm (3.9 x 4.4 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection |
| Cooling System | Air |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Primary chain, 34/46 ratio |
| Fuel Consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse Gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Chrome, over/under shotgun exhaust with dual mufflers |
| Top Speed | 155.0 km/h (96.3 mph) |
| Valves Per Cylinder | 2 |
| Front Brakes | Double disc. ABS. 4-piston. |
| Front Suspension | Telescopic fork |
| Front Tyre | 140/75-R17 |
| Rake | 31.0° |
| Rear Brakes | Single disc. ABS. 2-piston. |
| Rear Suspension | Twin shocks |
| Rear Tyre | 200/55-R17 |
| Trail | 147 mm (5.8 inches) |
| Wheels | Mirror Chrome Aluminum Bullet Hole Disc |
| Dry Weight | 320.0 kg (705.5 pounds) |
| Fuel Capacity | 18.93 litres (5.00 gallons) |
| Ground Clearance | 130 mm (5.1 inches) |
| Oil Capacity | 3.30 litres (0.22 quarts) |
| Overall Length | 2,396 mm (94.3 inches) |
| Power Weight Ratio | 0.2344 HP/kg |
| Seat Height | 670 mm (26.4 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 333.0 kg (734.1 pounds) |
| Light | High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings |
| Starter | Electric |
| Color Options | Velocity Red Sunglo, Vivid Black, Olive Gold, Superior Blue/Billet Silver, Black Hills Gold/Black Quartz |
| Instruments | Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
