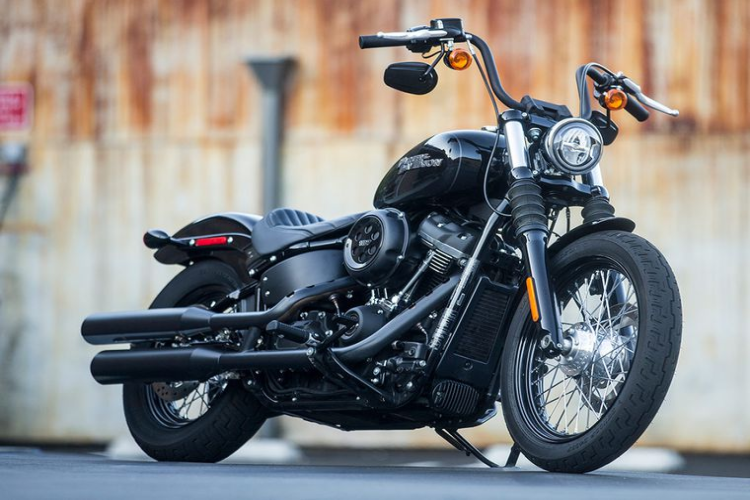

Harley-Davidson Softail Street Bob 2018 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1746.00 ccm (106.54 cubic inches) |
| Engine Type | Milwaukee-Eight® 107 |
| Engine Details | V2, four-stroke |
| Power | 86.00 HP (62.8 kW)) @ 5020 RPM |
| Torque | 145.00 Nm (14.8 kgf-m or 107.0 ft.lbs) @ 3000 RPM |
| Compression | 10.0:1 |
| Bore X Stroke | 100.0 x 111.1 mm (3.9 x 4.4 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling System | Air |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Chain 34/46 ratio primary drive |
| Fuel Consumption | 5.50 litres/100 km (18.2 km/l or 42.77 mpg) |
| Greenhouse Gases | 127.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | 2-into-2 offset shotgun; catalyst in muffler |
| Front Brakes | Single disc. Optional ABS. 4-piston |
| Front Suspension | Telescopic fork |
| Front Tyre | 100/90-B19 |
| Rake | 30.0° |
| Rear Brakes | Single disc. Optional ABS. 2-piston |
| Rear Suspension | Twin shocks |
| Rear Tyre | 150/80-B16 |
| Trail | 157 mm (6.2 inches) |
| Wheels | Wire spoked |
| Ground Clearance | 125 mm (4.9 inches) |
| Oil Capacity | 4.70 litres (0.31 quarts) |
| Overall Length | 2,320 mm (91.3 inches) |
| Power Weight Ratio | 0.3007 HP/kg |
| Seat Height | 680 mm (26.8 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 297.0 kg (654.8 pounds) |
| Dry Weight | 286.0 kg (630.5 pounds) |
| Fuel Capacity | 13.20 litres (3.49 gallons) |
| Color Options | Vivid Black, Olive Gold, Red Iron Denim, Wicked Red/Twisted Cherry, Industrial Gray Denim/Black Denim |
| Instruments | Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
| Light | High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings |
| Starter | Electric |

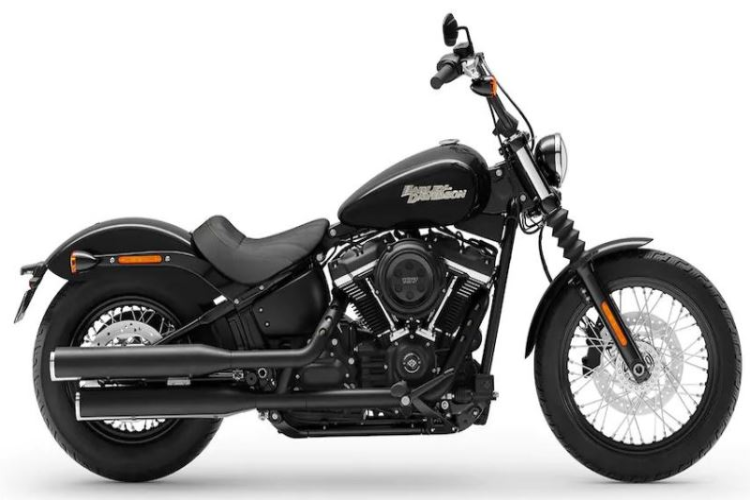

Other Harley-Davidson Softail Street Bob variants
