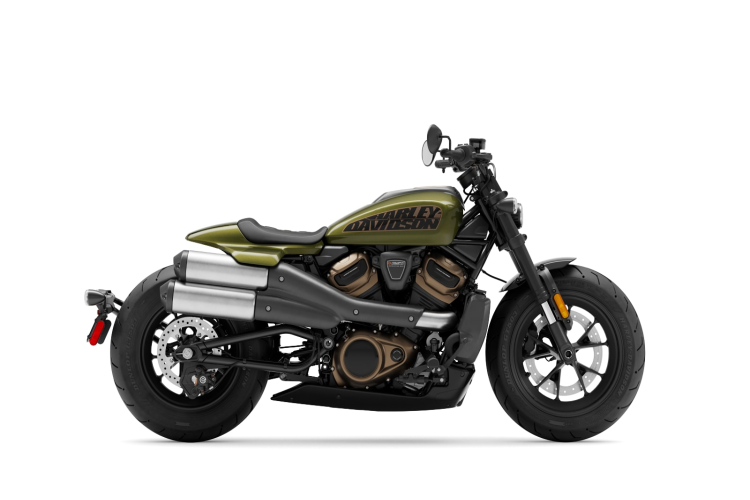

Harley-Davidson Sportster S 2022 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Engine Type | V2, four-stroke |
| Engine Details | Revolution Max 1250T engine |
| Power | 121.0 HP (88.3 kW)) @ 7500 RPM |
| Torque | 94.0 Nm (9.6 kgf-m or 69.3 ft.lbs) @ 6000 RPM |
| Compression | 12.0:1 |
| Bore X Stroke | 105.0 x 72.3 mm (4.1 x 2.8 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling System | Air |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Belt (final drive) |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Fuel Consumption | 4.80 litres/100 km (20.8 km/l or 49.00 mpg) |
| Greenhouse Gases | 111.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | 2-into-1-into-2, catalyst in muffler |
| Displacement | 1252.1 ccm (76.40 cubic inches) |
| Front Brakes | Single disc. ABS. Radially mounted, monoblock, 4-piston caliper |
| Front Suspension | 43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps. |
| Front Tyre | 160/70-ZR17 |
| Rake | 30.0° |
| Rear Brakes | Single disc. ABS. Floating, single piston caliper |
| Rear Suspension | Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability |
| Rear Tyre | 180/70-R16 |
| Trail | 147 mm (5.8 inches) |
| Wheels | Aluminum cast, satin black |
| Dry Weight | 220.9 kg (487.0 pounds) |
| Fuel Capacity | 11.73 litres (3.10 US gallons) |
| Ground Clearance | 76 mm (3.0 inches) |
| Oil Capacity | 4.50 litres (4.76 US quarts) |
| Overall Length | 2271 mm (89.4 inches) |
| Power Weight Ratio | 0.5478 HP/kg |
| Seat Height | 734 mm (28.9 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 227.7 kg (502.0 pounds) |
| Color Options | Vivid Black, White Sand Pearl, Mineral Green Metallic |
| Comments | Bluetooth. Cruise control. Traction control. Ride moedes. |
| Instruments | 4 inch TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation |
| Light | LED headlamp |
| Starter | Electric |
