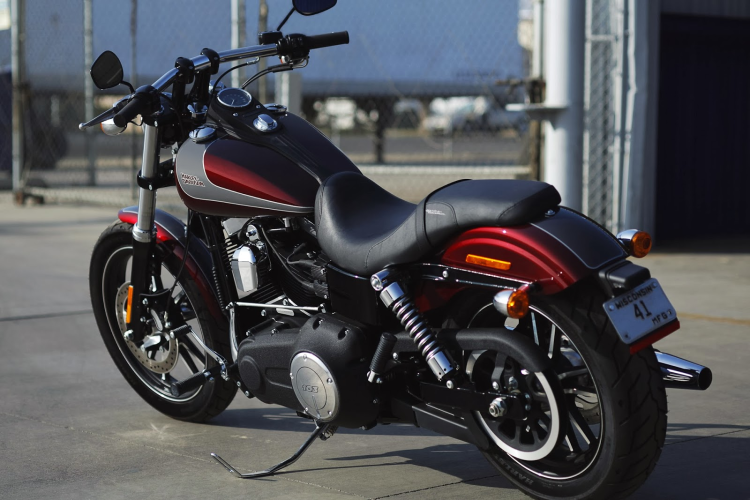

Harley-Davidson Street Bob Special Edition 2014 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1689.61 ccm (103.10 cubic inches) |
| Engine Type | Air-cooled, Twin Cam 103B |
| Engine Details | V2, four-stroke |
| Torque | 124.75 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 3000 RPM |
| Compression | 9.6:1 |
| Bore X Stroke | 95.3 x 111.3 mm (3.8 x 4.4 inches) |
| Fuel System | Injection. ESPFI |
| Lubrication System | Dry sump |
| Cooling System | Air |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Chain, 34/46 ratio primary drive |
| Fuel Consumption | 5.47 litres/100 km (18.3 km/l or 43.00 mpg) |
| Greenhouse Gases | 126.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Chrome, staggered, straight-cut shorty exhaust with dual mufflers |
| Front Brakes | Single disc. 4-piston fixed |
| Front Tyre | 100/90-19 |
| Rake | 29.0° |
| Rear Brakes | Single disc. 2-piston torque-free floating |
| Rear Tyre | 160/70-17 |
| Seat | Badlander® two-up saddle |
| Trail | 119 mm (4.7 inches) |
| Wheels | Split Five Spoke cast aluminium wheels |
| Dry Weight | 289.9 kg (639.0 pounds) |
| Fuel Capacity | 17.79 litres (4.70 gallons) |
| Ground Clearance | 125 mm (4.9 inches) |
| Oil Capacity | 2.80 litres (0.18 quarts) |
| Overall Length | 2,357 mm (92.8 inches) |
| Seat Height | 648 mm (25.5 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 304.8 kg (672.0 pounds) |
| Color Options | Black |
| Comments | A flat Drag-style handlebar replaces the stock mini-ape bar and lowers the bike’s profile. |
| Instruments | Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
| Light | High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings |
| Starter | Electric |
