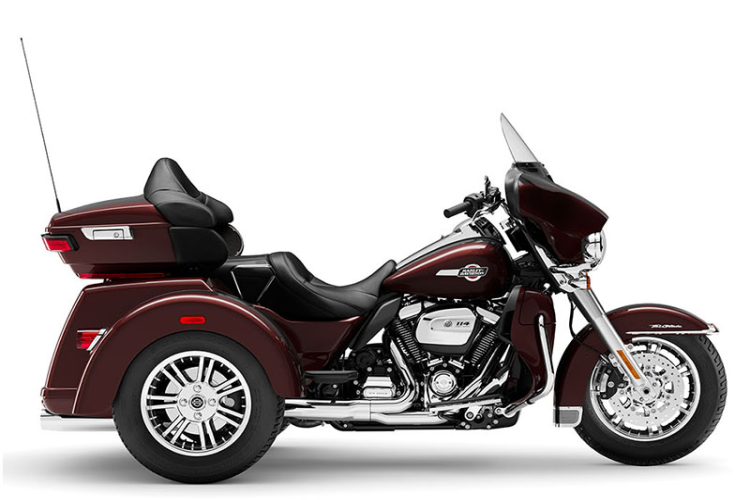

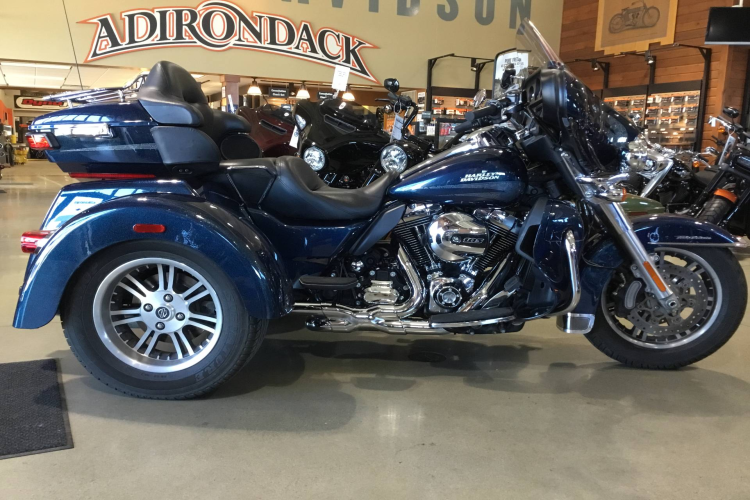

Harley-Davidson Tri Glide Ultra 2022 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1868.00 ccm (113.99 cubic inches) |
| Engine Type | Twin-Cooled™ Milwaukee-Eight® 114 engine |
| Engine Details | V2, four-stroke |
| Power | 100.00 HP (73.0 kW)) @ 5000 RPM |
| Torque | 164.08 Nm (16.7 kgf-m or 121.0 ft.lbs) @ 3250 RPM |
| Compression | 10.5:1 |
| Bore X Stroke | 102.0 x 114.3 mm (4.0 x 4.5 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling System | Air |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Chain, 34/46 ratio primary drive |
| Fuel Consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse Gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Front Brakes | Double disc. 6 piston. ABS. |
| Front Suspension | Telescopic fork |
| Front Tyre | MT90-B16 |
| Rake | 26.0° |
| Rear Brakes | Single disc. ABS. Integrated park brake. |
| Rear Tyre | 205/65-R15 |
| Trail | 100 mm (3.9 inches) |
| Wheels | Black, 7-spoke Cast Aluminum. Two rear wheels. |
| Rear Suspension | Hand-adjustable emulsion rear suspension |
| Seat Height | 688 mm (27.1 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 567.0 kg (1,250.0 pounds) |
| Dry Weight | 545.7 kg (1,203.0 pounds) |
| Fuel Capacity | 22.71 litres (6.00 gallons) |
| Ground Clearance | 125 mm (4.9 inches) |
| Oil Capacity | 4.70 litres (0.31 quarts) |
| Overall Length | 2,670 mm (105.1 inches) |
| Power Weight Ratio | 0.1833 HP/kg |
| Carrying Capacity | Trunk and top box |
| Color Options | Sand Pearl/Canyon Brown, Mysterious Red Sunglo/Blackened Cayenne Sunglo, Big Blue Pearl/Vivid Black, Blackened Cayenne Sunglo, Vivid Black |
| Comments | Trike. Windshield. |
| Instruments | Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges |
| Light | High Beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), 6 speed, low fuel warning, reverse enabled |
| Starter | Electric |
