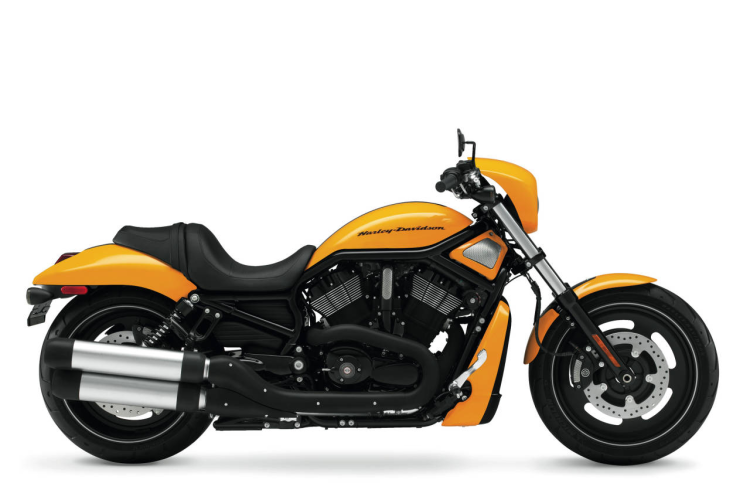

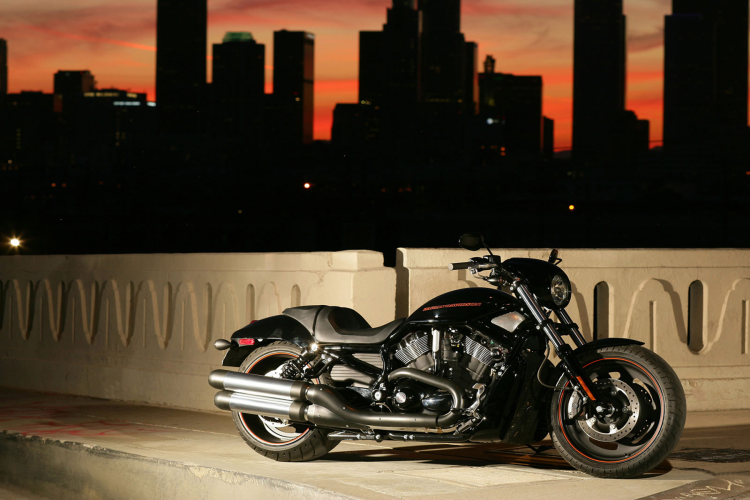

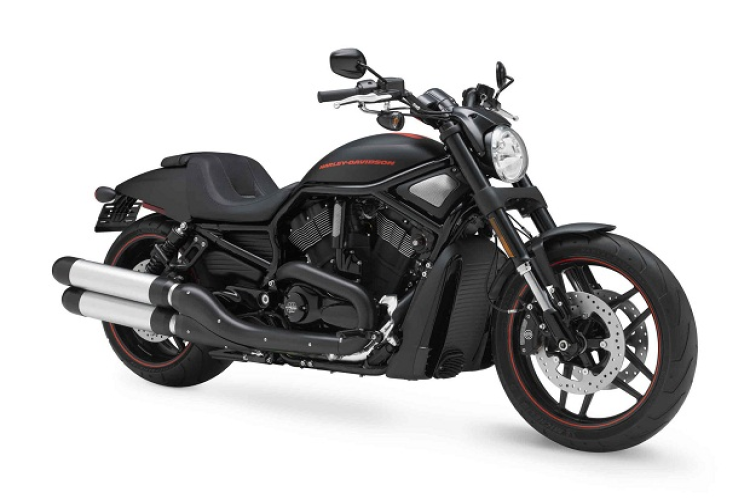

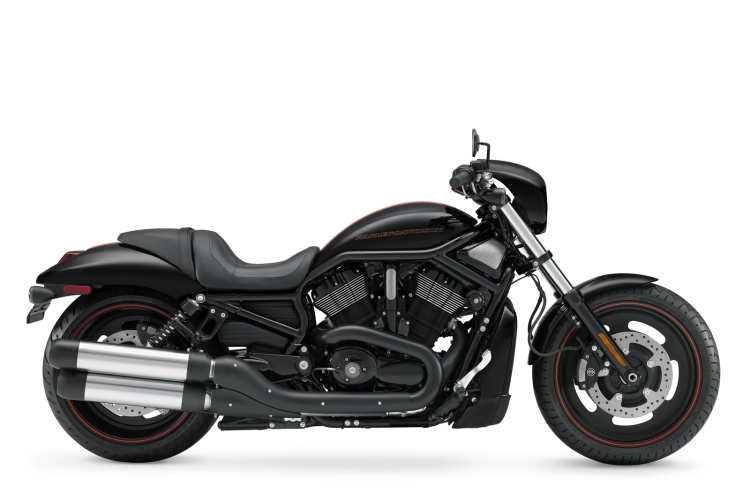

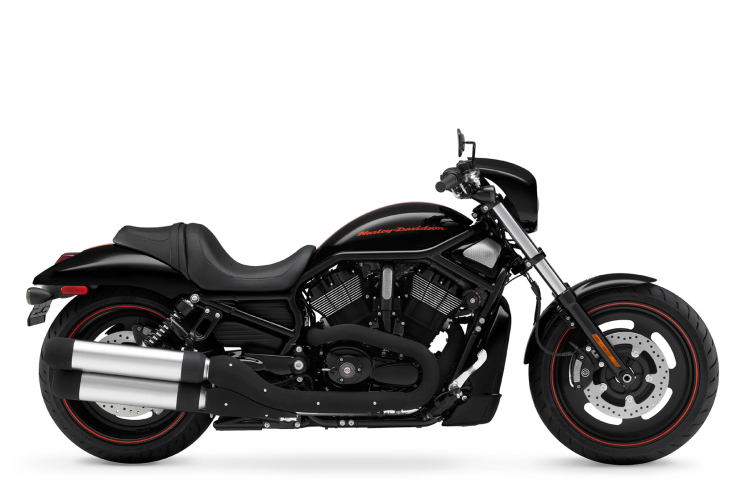

Harley-Davidson VRSCDX Night Rod Special 2012 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1250.00 ccm (76.28 cubic inches) |
| Engine Details | V2, four-stroke |
| Torque | 111.00 Nm (11.3 kgf-m or 81.9 ft.lbs) @ 7200 RPM |
| Bore X Stroke | 105.0 x 72.0 mm (4.1 x 2.8 inches) |
| Fuel System | Injection |
| Cooling System | Liquid |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | 9-plate, wet, A and S (Assist and Slip) |
| Exhaust System | Brushed, straight-shot exhaust with dual mufflers, |
| Compression | 11.5:1 |
| Fuel Consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse Gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Engine Type | Liquid-cooled, Revolution®, 60° V-Twin. Overhead cam, 4 valves per cylinder, solid tappet with shim-under-bucket lash adjustment. |
| Valves Per Cylinder | 4 |
| Lubrication System | Pressurized, dry-sump |
| Driveline | Primary Drive Gear, 117/64 ratio Final Drive Belt, 72/28 ratio. High-performance carbon-fiber drive belt. |
| Front Tyre | 120/70-ZR19 |
| Front Wheel Travel | 102 mm (4.0 inches) |
| Rake | 34.0° |
| Rear Brakes | Single disc. 4-piston |
| Rear Brakes Diameter | 300 mm (11.8 inches) |
| Rear Suspension | Preload adjustable |
| Rear Tyre | 240/40-R18 |
| Rear Wheel Travel | 102 mm (4.0 inches) |
| Trail | 114 mm (4.5 inches) |
| Frame Type | Steel perimeter upper frame with hydroformed main rails |
| Front Brakes | Double disc. Bremo, 4-piston calipers, ABS |
| Front Brakes Diameter | 300 mm (11.8 inches) |
| Front Suspension | Wide, 49mm custom fork |
| Wheels | Black, Split 5-Spoke Cast Aluminum w/ Orange Pinstripe |
| Dry Weight | 292.0 kg (643.7 pounds) |
| Fuel Capacity | 18.90 litres (4.99 gallons) |
| Ground Clearance | 140 mm (5.5 inches) |
| Oil Capacity | 4.40 litres (0.29 quarts) |
| Overall Length | 2,460 mm (96.9 inches) |
| Seat Height | 690 mm (27.2 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 306.6 kg (676.0 pounds) |
| Color Options | Black Denim with Brilliant Silver Denim Racing Stripe, Vivid Black with Brilliant |
| Comments | Black powder-coated engine with black treatment covers; Sport front fender with painted brace supports; Low-profile rear fender; 240mm wide rear tyre; Colour-matched headlamp nacelle; Slipper clutch; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel, low-rise handlebars; Two-piece, two-up textured vinyl seat; 4-piston front and rear caliper Brembo® brakes with dual front rotor; Wide, 49mm custom forks; ABS as standard |
| Starter | Electric |
| Electrical | Sealed, maintenance-free battery, 12V, 19-amp/hour, 270 cca |
| Factory Warranty | 2 years, unlimited mileage. |
| Instruments | Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer |
| Light | 55-watt low beam, 60-watt high beam headlight |
