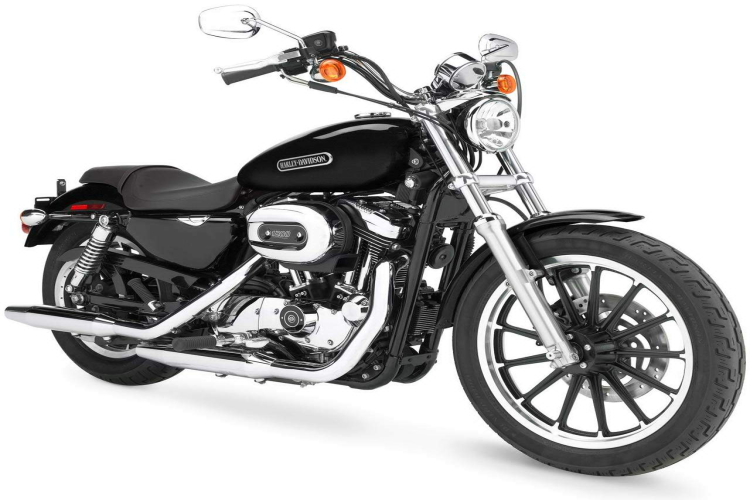

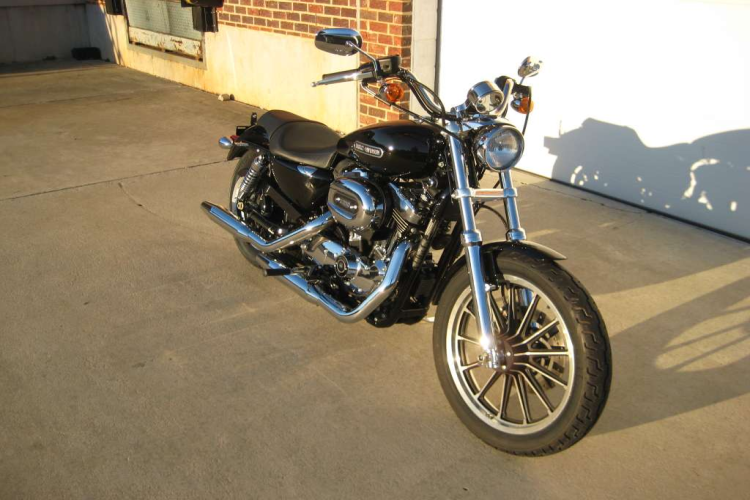

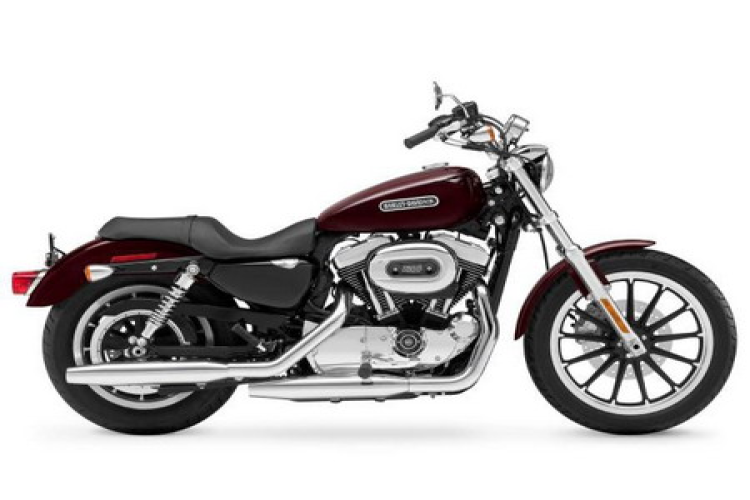

Harley-Davidson XL 1200L Sportster 1200 Low 2011 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1199.61 ccm (73.20 cubic inches) |
| Engine Details | V2, four-stroke |
| Torque | 107.12 Nm (10.9 kgf-m or 79.0 ft.lbs) @ 3500 RPM |
| Compression | 9.7:1 |
| Bore X Stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Valves Per Cylinder | 2 |
| Fuel System | Carburettor |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Wet multi-plate |
| Exhaust System | Chrome, staggered shorty duals |
| Engine Type | Evolution engine. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters. |
| Lubrication System | Dry-sump |
| Driveline | Primary Drive Chain, 57/38 ratio. Final Drive Belt, 68/29 ratio. |
| Fuel Consumption | 4.75 litres/100 km (21.1 km/l or 49.52 mpg) |
| Greenhouse Gases | 110.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Rear Suspension | Coil-over; preload dual-adjustable |
| Rear Tyre | 150/80-16 |
| Rear Wheel Travel | 54 mm (2.1 inches) |
| Trail | 119 mm (4.7 inches) |
| Front Brakes | Double disc |
| Front Tyre | 100/90-19 |
| Rake | 29.6° |
| Rear Brakes | Single disc |
| Frame Type | Mild steel, tubular frame; circular sections; cast junctions. |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Suspension | 39 mm fork |
| Front Wheel Travel | 105 mm (4.1 inches) |
| Rear Brakes Diameter | 260 mm (10.2 inches) |
| Wheels | Black, 13-Spoke Cast Aluminum |
| Dry Weight | 251.0 kg (553.4 pounds) |
| Fuel Capacity | 17.00 litres (4.49 gallons) |
| Ground Clearance | 112 mm (4.4 inches) |
| Overall Length | 2,250 mm (88.6 inches) |
| Seat Height | 668 mm (26.3 inches) If adjustable, lowest setting. |
| Alternate Seat Height | 711 mm (28.0 inches) If adjustable, highest setting. |
| Weight Incl Oil Gas Etc | 260.8 kg (575.0 pounds) |
| Oil Capacity | 2.80 litres (0.18 quarts) |
| Overall Height | 1,189 mm (46.8 inches) |
| Overall Width | 894 mm (35.2 inches) |
| Color Options | Vivid Black, Dark Blue Pearl, Flame Blue Pearl, Red Hot Sunglo, White Gold Pearl and Pewter Pearl. |
| Comments | Black powder-coated engine with chrome covers; Chrome headlamp visor; Chrome trim ring with black body headlamp; Chrome riser; Mid-mounted rider footpegs; Standard passenger footpegs; Stainless steel, pull-back handlebars; One-piece, two-up Sportster® classic seat; Low-profile front forks; |
| Modifications Compared To Previous Model | New lowprofile rear shocks for improved ride quality; New low-profile front fender |
| Electrical | Sealed lead acid, maintenance-free batery, 12V, 12 amp/hour, 200 cca. 30-amp, permanent magnet, single-phase alternator with solid-state regulator. |
| Factory Warranty | 24 months, unlimited mileage. (US) |
| Instruments | Handlebar-mounted electronic speedometer with odometer, time-of-day clock odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lightsHandlebar-mounted electronic speedometer with odometer, tim |
| Light | 55-watt low beam, 60-watt high beam |
| Starter | Electric |
