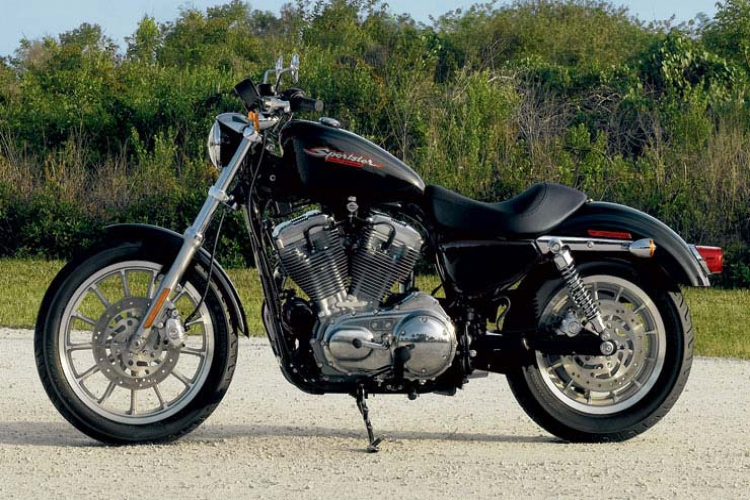

Harley-Davidson XL 883 Sportster 883 2006 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 882.66 ccm (53.86 cubic inches) |
| Engine Details | V2, four-stroke |
| Torque | 69.15 Nm (7.1 kgf-m or 51.0 ft.lbs) @ 4300 RPM |
| Compression | 8.9:1 |
| Bore X Stroke | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Valves Per Cylinder | 2 |
| Fuel System | Carburettor |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate clutch with diaphragm spring in oil bath |
| Fuel Consumption | 4.43 litres/100 km (22.6 km/l or 53.10 mpg) |
| Greenhouse Gases | 102.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Chrome, staggered shorty duals |
| Frame Type | Mild steel tubular frame; circular sections; cast junctions |
| Front Brakes | Single disc. 2-piston calipers |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Suspension | 39mm fork |
| Front Tyre | 100/90-19 |
| Front Wheel Travel | 105 mm (4.1 inches) |
| Rake | 30.0° |
| Rear Brakes | Single disc. Single piston |
| Rear Brakes Diameter | 292 mm (11.5 inches) |
| Rear Suspension | Coil-over; preload dual-adjustable |
| Rear Tyre | 150/80-16 |
| Trail | 117 mm (4.6 inches) |
| Dry Weight | 251.0 kg (553.4 pounds) |
| Fuel Capacity | 12.50 litres (3.30 gallons) |
| Ground Clearance | 141 mm (5.6 inches) |
| Overall Length | 2,260 mm (89.0 inches) |
| Seat Height | 693 mm (27.3 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 260.4 kg (574.0 pounds) |
| Color Options | Vivid Black, Flame Blue Pearl |
| Comments | Silver powder-coated engine with polished treatment covers; Polished headlamp visor; Black riser; Mid-mounted rider footpegs; Stainless steel, low-rise handlebar; One-piece, solo Sportster® classic seat; Chrome trim ring with black body headlamp; Chrome riser; Mid-mounted rider footpegs; Standard passenger footpegs; Stainless steel, pull-back handlebars; One-piece, two-up Sportster® classic seat; Low-profile front forks; |
| Modifications Compared To Previous Model | New low-profile front fender; New rear shocks for improved ride quality. |
| Starter | Electric |

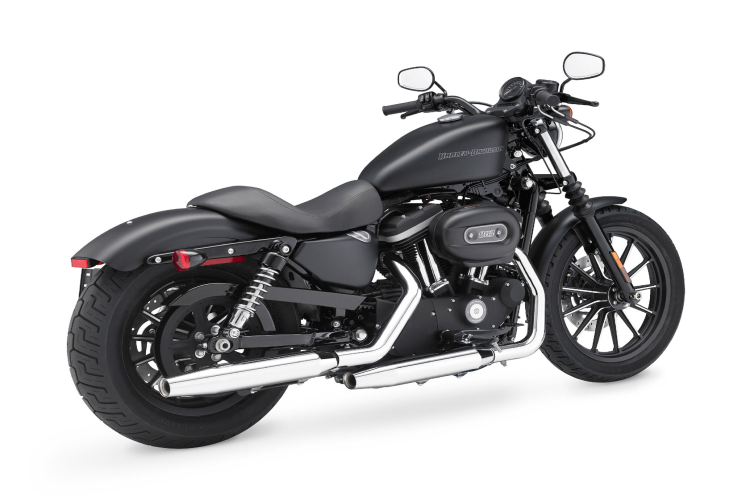

Other Harley-Davidson XL 883 Sportster 883 variants
