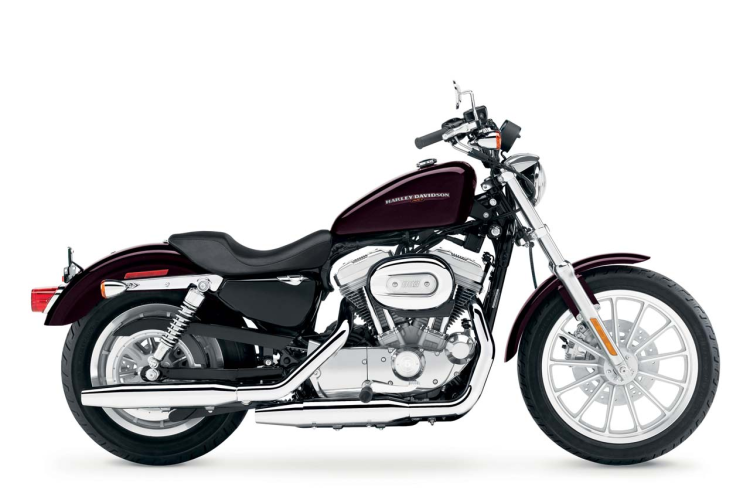

Harley-Davidson XL 883 Sportster 2004 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 883.00 ccm (53.88 cubic inches) |
| Engine Details | V2, four-stroke |
| Torque | 69.00 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4200 RPM |
| Compression | 9.0:1 |
| Bore X Stroke | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Valves Per Cylinder | 2 |
| Fuel System | Carburettor |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate clutch with diaphragm spring in oil bath. |
| Exhaust System | Staggered shorty duals |
| Front Brakes | Single disc |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Tyre | 100/90-19 |
| Rake | 29.6° |
| Rear Brakes | Single disc |
| Rear Brakes Diameter | 292 mm (11.5 inches) |
| Rear Tyre | 150/80-16 |
| Trail | 117 mm (4.6 inches) |
| Dry Weight | 251.0 kg (553.4 pounds) |
| Fuel Capacity | 12.90 litres (3.41 gallons) |
| Ground Clearance | 141 mm (5.6 inches) |
| Overall Length | 2,260 mm (89.0 inches) |
| Seat Height | 693 mm (27.3 inches) If adjustable, lowest setting. |
| Reserve Fuel Capacity | 12.90 litres (3.41 gallons) |
| Color Options | Vivid black, brilliant silver pearl, sierra red pearl, chopper blue pearl |
| Comments | Rubber-mounted engine. |
