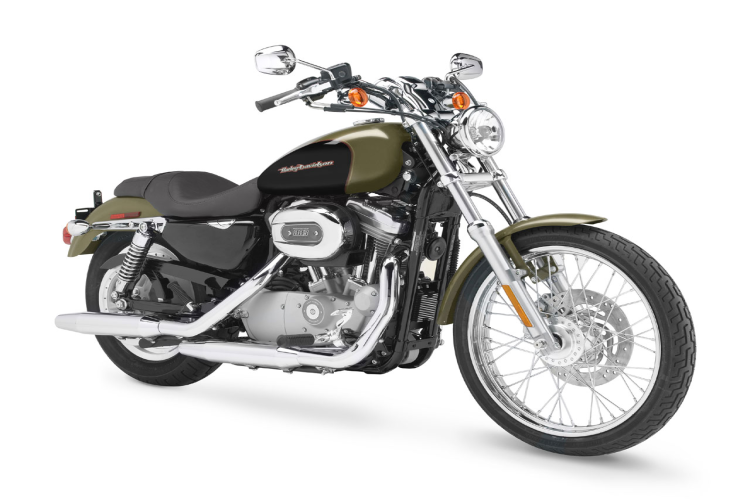

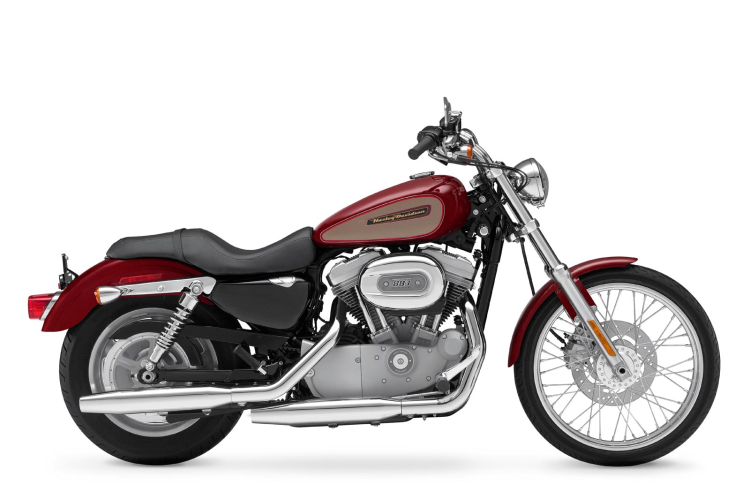

Harley-Davidson XL 883C Sportster 883 Custom 2010 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 883.00 ccm (53.88 cubic inches) |
| Engine Details | V2, four-stroke |
| Torque | 70.00 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM |
| Compression | 9.0:1 |
| Bore X Stroke | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication System | Wet sump |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | 9-plate, wet |
| Exhaust System | Chrome, staggered shorty exhaust with dual mufflers |
| Valves Per Cylinder | 2 |
| Fuel Consumption | 4.43 litres/100 km (22.6 km/l or 53.10 mpg) |
| Greenhouse Gases | 102.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Frame Type | Mild steel tubular frame; circular sections; cast junctions |
| Front Brakes | Single disc. Dual Piston |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Suspension | Fork 39mm |
| Front Tyre | 402/90-21 |
| Front Wheel Travel | 145 mm (5.7 inches) |
| Rake | 30.0° |
| Rear Brakes | Single disc. Single piston |
| Rear Brakes Diameter | 292 mm (11.5 inches) |
| Rear Suspension | Coil-over shocks, preload dual adjustments |
| Rear Tyre | 150/80-16 |
| Rear Wheel Travel | 54 mm (2.1 inches) |
| Trail | 120 mm (4.7 inches) |
| Dry Weight | 255.0 kg (562.2 pounds) |
| Fuel Capacity | 12.50 litres (3.30 gallons) |
| Ground Clearance | 120 mm (4.7 inches) |
| Oil Capacity | 2.50 litres (0.17 quarts) |
| Overall Length | 2,275 mm (89.6 inches) |
| Seat Height | 715 mm (28.1 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 262.6 kg (579.0 pounds) |
| Color Options | Vivid Black, Scarlet Red, Brilliant Silver Pearl, Flame Blue Pearl |
| Comments | Silver powder-coated engine; Chrome, bullet headlamp; Chrome, tall pull-back riser; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel, low-rise handlebars; One-piece, two-up Sportster® classic seat; Low-profile front fender |
| Modifications Compared To Previous Model | New low profile rear shocks for improved ride quality; New low-profile front fender. |
| Starter | Electric |
