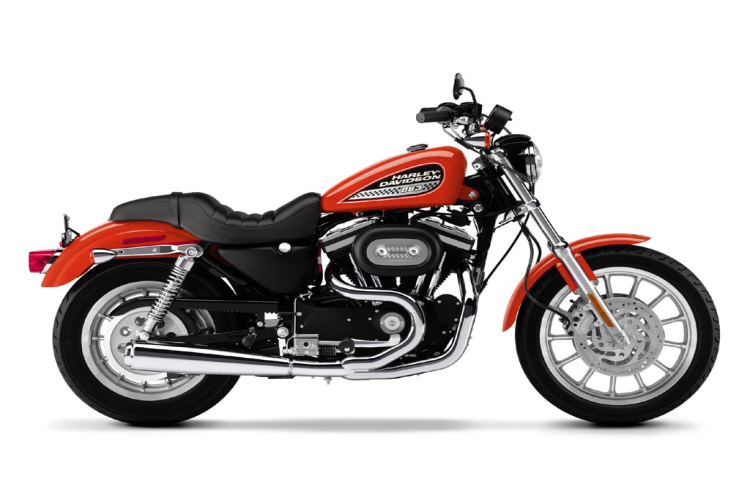

Harley-Davidson XL 883R Sportster 883R 2011 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 883.00 ccm (53.88 cubic inches) |
| Engine Type | Air-cooled Evolution engine. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters. |
| Engine Details | V2, four-stroke |
| Torque | 66.00 Nm (6.7 kgf-m or 48.7 ft.lbs) @ 3500 RPM |
| Compression | 8.9:1 |
| Bore X Stroke | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Valves Per Cylinder | 2 |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication System | Dry-sump |
| Cooling System | Air |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate, wet |
| Driveline | Belt, 28/68 ratio |
| Fuel Consumption | 5.23 litres/100 km (19.1 km/l or 44.98 mpg) |
| Greenhouse Gases | 121.3 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Chrome, staggered shorty exhaust with dual mufflers |
| Frame Type | Mild steel, tubular frame; circular |
| Front Brakes | Single disc. Patented, uniform expansion rotors. Dual-piston. |
| Front Suspension | Fork, 39 mm |
| Front Tyre | 100/90-19 |
| Front Wheel Travel | 108 mm (4.3 inches) |
| Rake | 29.7° |
| Rear Brakes | Single disc. Patented, uniform expansion rotors. Single-piston. |
| Rear Suspension | Coil-over; preload dual-adjustable |
| Rear Tyre | 100/90-19 |
| Trail | 112 mm (4.4 inches) |
| Wheels | Black, 13-Spoke Cast Aluminum |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Rear Brakes Diameter | 292 mm (11.5 inches) |
| Rear Wheel Travel | 104 mm (4.1 inches) |
| Dry Weight | 243.1 kg (536.0 pounds) |
| Fuel Capacity | 12.50 litres (3.30 gallons) |
| Ground Clearance | 141 mm (5.6 inches) |
| Overall Length | 2,245 mm (88.4 inches) |
| Seat Height | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Oil Capacity | 2.50 litres (0.17 quarts) |
| Electrical | Sealed lead acid, maintenance-free batery, 12V, 12 amp/hour, 200 cca. 30-amp, permanent magnet, single-phase alternator with solid-state regulator. |
| Instruments | High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warnings, optional security system |
| Light | 55-watt low beam, 60-watt high beam |
| Color Options | Vivid Black, Brilliant Silver Pearl, Mirage Orange Pearl |
| Comments | Black powder-coated engine with wrinkle-black treatment; Satin black finish on side covers, air cleaner, front forks and visor; Mid-mounted rider footpegs; Standard passenger footpegs; Black, low-rise handlebars; One-piece, two-up Sportster® classic seat; Low-profile front fender |
| Starter | Electric |
