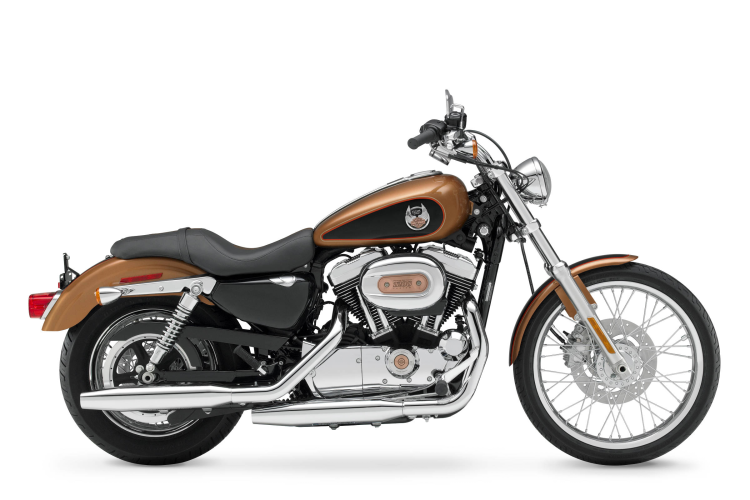

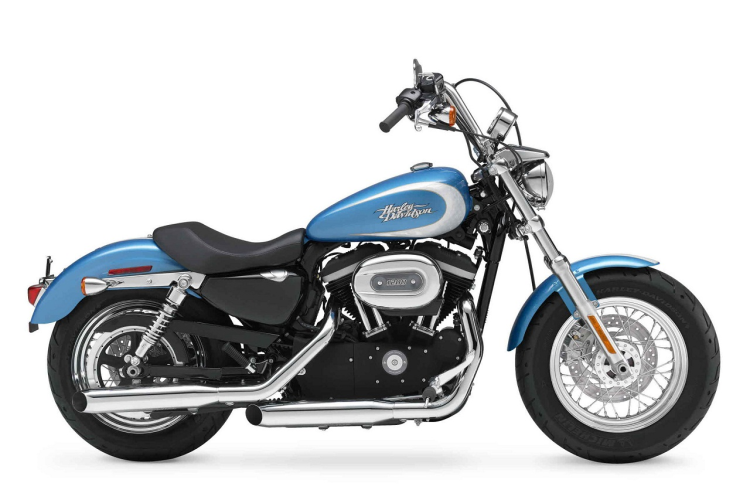

Harley-Davidson XL1200C Sportster 1200 Custom 2012 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1199.61 ccm (73.20 cubic inches) |
| Engine Details | V2, four-stroke |
| Torque | 107.12 Nm (10.9 kgf-m or 79.0 ft.lbs) @ 4000 RPM |
| Compression | 9.7:1 |
| Bore X Stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Fuel Consumption | 4.12 litres/100 km (24.3 km/l or 57.09 mpg) |
| Greenhouse Gases | 95.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Chrome, staggered shorty exhaust w/ dual mufflers |
| Engine Type | Air-cooled, Evolution® Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder |
| Lubrication System | Dry-sump |
| Driveline | Chain primary drive, 57/38 ratio |
| Rear Suspension | Mild steel, rectangular tube section, stamped junctions, MIG welded swing-arm. Coil-over; preload dual-adjustable shocks. |
| Rear Tyre | 150/80-B16 |
| Rear Wheel Travel | 54 mm (2.1 inches) |
| Seat | Two-up seat is standard with 26.5 inch laden seat height |
| Trail | 107 mm (4.2 inches) |
| Wheels | Chrome, 5-Spoke Cast Aluminum |
| Front Brakes | Single disc |
| Front Tyre | 100/90-H19 |
| Rake | 30.1° |
| Rear Brakes | Single disc |
| Frame Type | Mild steel, tubular frame; circular sections; cast junctions |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Suspension | 39 mm |
| Front Wheel Travel | 105 mm (4.1 inches) |
| Rear Brakes Diameter | 260 mm (10.2 inches) |
| Dry Weight | 250.8 kg (553.0 pounds) |
| Fuel Capacity | 17.03 litres (4.50 gallons) |
| Ground Clearance | 112 mm (4.4 inches) |
| Oil Capacity | 2.60 litres (0.17 quarts) |
| Overall Length | 2,220 mm (87.4 inches) |
| Seat Height | 676 mm (26.6 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 264.0 kg (582.0 pounds) |
| Color Options | Vivid Black, Big Blue Pearl, Brilliant Silver Pearl, Two-Tone Ember Red Sunglo/Merlot Sunglo |
| Electrical | Sealed lead acid battery, maintenance-free, 12V, 12 amp/hour, 200 cca. |
| Factory Warranty | 24 months, unlimited mileage. |
| Instruments | Handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights |
| Starter | Electric |
| Comments | Black powder-coated engine (including cylinders and cylinder heads) with chrome covers; Chrome, Laced Steel front wheel; Chrome, Slotted Disc Cast Aluminum rear wheel; forward-mounted foot controls; chrome, pull-back riser; chrome bullet headlamp |
