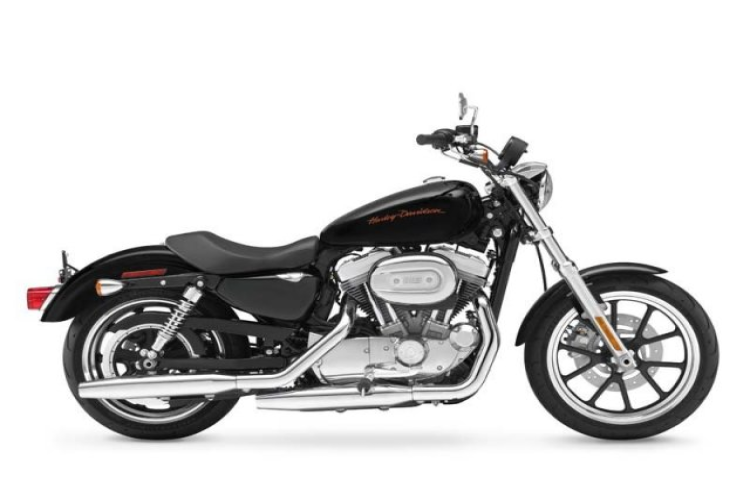

Harley-Davidson XL883L Sportster SuperLow 2012 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 883.32 ccm (53.90 cubic inches) |
| Engine Type | Air-cooled, Evolution®. Silver, powder-coated engine with polished covers. |
| Engine Details | V2, four-stroke |
| Torque | 74.58 Nm (7.6 kgf-m or 55.0 ft.lbs) @ 3500 RPM |
| Compression | 8.9:1 |
| Bore X Stroke | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication System | Dry-sump |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Chain primary drive, 57/34 ratio |
| Fuel Consumption | 4.61 litres/100 km (21.7 km/l or 51.02 mpg) |
| Greenhouse Gases | 107.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Chrome, staggered, shorty exhaust with dual mufflers |
| Frame Type | Mild steel, tubular frame; circular sections; cast junctions |
| Front Brakes | Single disc. Dual-piston |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Suspension | 39 mm Showa® |
| Front Tyre | 120/70-ZR18 |
| Rake | 31.1° |
| Rear Brakes | Single disc. Single-piston |
| Rear Brakes Diameter | 260 mm (10.2 inches) |
| Rear Suspension | Mild steel, rectangular tube section, stamped junctions, MIG welded swing-arm. Coil-over; preload dual-adjustable shocks. |
| Rear Tyre | 150/60-ZR17 |
| Seat | Solo seat with deep bucket shape |
| Trail | 145 mm (5.7 inches) |
| Wheels | Black, Split 5-Spoke with Machined Rim |
| Ground Clearance | 97 mm (3.8 inches) |
| Oil Capacity | 2.60 litres (0.17 quarts) |
| Overall Length | 2,187 mm (86.1 inches) |
| Seat Height | 648 mm (25.5 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 255.4 kg (563.0 pounds) |
| Dry Weight | 243.1 kg (536.0 pounds) |
| Fuel Capacity | 17.03 litres (4.50 gallons) |
| Color Options | Vivid Black, Ember Red Sunglo, Midnight Pearl/Cool Blue Pearl, Birch White/Sunburst Red |
| Electrical | Sealed lead acid battery, maintenance-free, 12V, 12 amp/hour, 200 cca. |
| Factory Warranty | 24 months, unlimited mileage. |
| Instruments | Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights |
| Light | High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional) |
| Starter | Electric |
