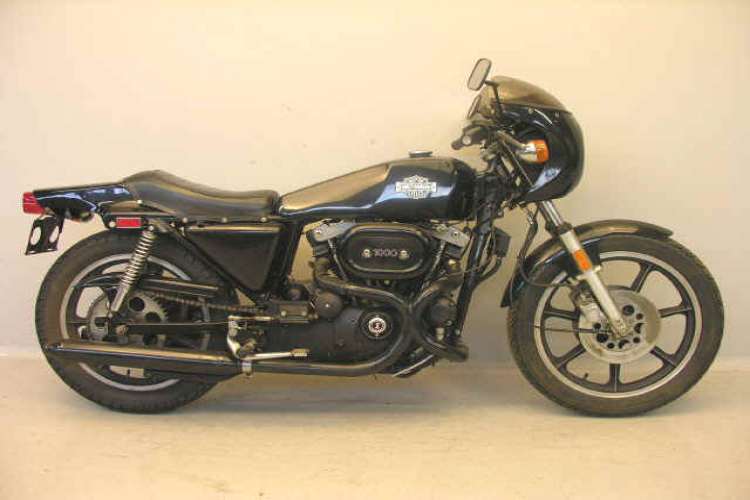

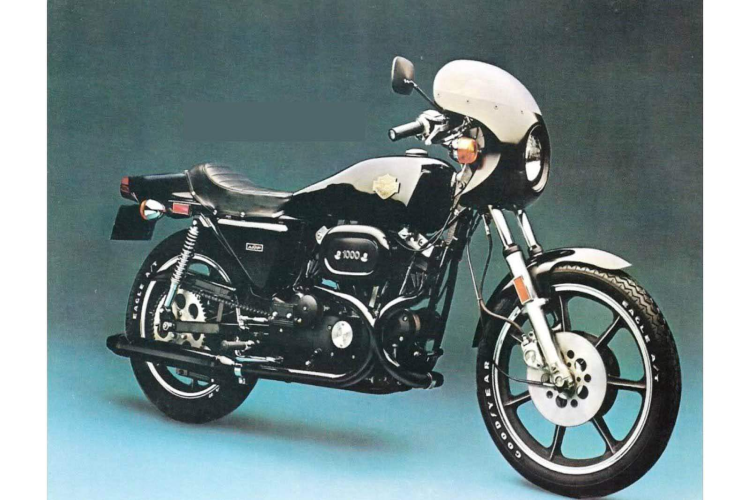

Harley-Davidson XLCR 1000 Cafe Racer 1977 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 997.00 ccm (60.84 cubic inches) |
| Engine Details | V2, four-stroke |
| Power | 57.00 HP (41.6 kW)) @ 6000 RPM |
| Top Speed | 180.0 km/h (111.8 mph) |
| Compression | 9.0:1 |
| Bore X Stroke | 81.0 x 96.8 mm (3.2 x 3.8 inches) |
| Valves Per Cylinder | 2 |
| Cooling System | Air |
| Gearbox | 4-speed |
| Transmission Type Final Drive | Chain |
| Torque | 70.51 Nm (7.2 kgf-m or 52.0 ft.lbs) @ 3800 RPM |
| Max Rpm | 6800 |
| Fuel System | Carburettor. Keihin |
| Lubrication System | Dry sump |
| Clutch | Wet plate |
| Exhaust System | double with siamise primary |
| Front Brakes | Dual disc |
| Front Tyre | 3.75-19 |
| Rear Brakes | Single disc |
| Rear Tyre | 4.25-18 |
| Frame Type | Steel tube |
| Front Brakes Diameter | 254 mm (10.0 inches) |
| Rake | 30.0° |
| Rear Brakes Diameter | 254 mm (10.0 inches) |
| Fuel Capacity | 9.00 litres (2.38 gallons) |
| Weight Incl Oil Gas Etc | 218.0 kg (480.6 pounds) |
| Ground Clearance | 178 mm (7.0 inches) |
| Overall Height | 1,016 mm (40.0 inches) |
| Overall Length | 2,210 mm (87.0 inches) |
| Overall Width | 889 mm (35.0 inches) |
| Color Options | Black |
| Comments | manufactured 1200 pcs |
| Starter | Electric |
