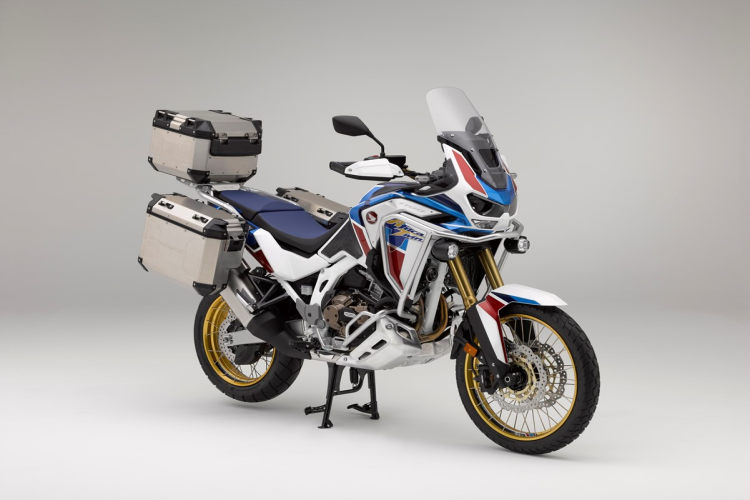

Honda Africa Twin Adventure Sports 2020 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1084.0 ccm (66.15 cubic inches) |
| Engine Type | Twin, four-stroke |
| Power | 101.0 HP (73.7 kW)) @ 7500 RPM |
| Torque | 105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 6250 RPM |
| Compression | 10.1:1 |
| Bore X Stroke | 92.0 x 81.5 mm (3.6 x 3.2 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. PGM-FI electronic fuel injection (throttle by wire) |
| Ignition | Full transistorized ignition |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain (final drive) |
| Clutch | Wet, multi-plate with coil springs, aluminum cam assist and slipper clutch |
| Driveline | #525 Chain; 16T/42T |
| Engine Details | Twin, four-stroke |
| Emission Details | Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment. |
| Frame Type | Steel semi-double cradle type with high-tensile strength steel rear sub-frame |
| Front Brakes | Double disc. Switchable ABS. 4-piston calipers and sintered metal pads |
| Front Brakes Diameter | 310 mm (12.2 inches) |
| Front Suspension | Showa 45mm cartridge-type inverted telescopic fork with dial-style preload adjuster and damping adjustment |
| Front Tyre | 90/90-21 |
| Front Wheel Travel | 230 mm (9.1 inches) |
| Rake | 27.5° |
| Rear Brakes | Single disc. Switchable ABS. 2-piston caliper and sintered metal pads. |
| Rear Brakes Diameter | 256 mm (10.1 inches) |
| Rear Suspension | Monoblock aluminium swing arm with Pro-Link with SHOWA gas-charged damper, hydraulic dial-style preload adjuster and rebound damping adjustments |
| Rear Tyre | 150/70-R18 |
| Rear Wheel Travel | 220 mm (8.7 inches) |
| Trail | 113 mm (4.4 inches) |
| Wheels | Bridgestone Battlax Adventurecross |
| Alternate Seat Height | 870 mm (34.3 inches) If adjustable, highest setting. |
| Fuel Capacity | 24.80 litres (6.55 US gallons) |
| Ground Clearance | 250 mm (9.8 inches) |
| Oil Capacity | 4.30 litres (4.54 US quarts) |
| Overall Height | 1490 mm (58.7 inches) |
| Overall Length | 2330 mm (91.7 inches) |
| Overall Width | 960 mm (37.8 inches) |
| Reserve Fuel Capacity | 4.90 litres (1.29 US gallons) |
| Seat Height | 850 mm (33.5 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 238.0 kg (524.7 pounds) |
| Factory Warranty | 1 year |
| Starter | Electric |
| Color Options | Pearl Glare White Tricolour, Matte Ballistic Black Metallic |
| Electrical | 12V-6Ah Li-ion battery |
| Light | Dual LED Headlights |
| Modifications Compared To Previous Model | Refined DCT settings for smoother handling in the first two gears. |
| Comments | Small windscreen. Cruise control. |
