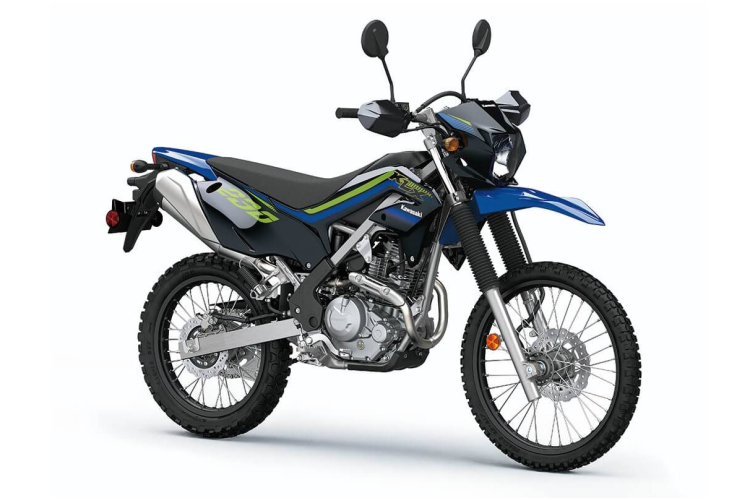

Kawasaki KLX 230 SE 2022 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 233.0 ccm (14.22 cubic inches) |
| Engine Type | Single cylinder, four-stroke |
| Compression | 9.4:1 |
| Bore X Stroke | 67.0 x 66.0 mm (2.6 x 2.6 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. DFI® with 32mm Keihin throttle body |
| Ignition | TCBI Electronic Advance |
| Lubrication System | Forced lubrication, wet sump |
| Cooling System | Air |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain (final drive) |
| Clutch | Wet multi-disc, manual |
| Driveline | Sealed Chain |
| Frame Type | High-Tensile steel, box-section perimeter |
| Front Brakes | Single disc. Dual-piston. Petal disc. Optional ABS. |
| Front Brakes Diameter | 240 mm (9.4 inches) |
| Front Suspension | 37mm telescopic fork |
| Front Tyre | 80/100-21 |
| Front Wheel Travel | 221 mm (8.7 inches) |
| Rake | 27.5° |
| Rear Brakes | Single disc. Single-piston. Petal disc. Optional ABS. |
| Rear Brakes Diameter | 220 mm (8.7 inches) |
| Rear Suspension | Uni-Trak® linkage system and single shock with adjustable spring preload |
| Rear Tyre | 100/100-18 |
| Rear Wheel Travel | 224 mm (8.8 inches) |
| Trail | 117 mm (4.6 inches) |
| Wheels | Wire spoked. Black anodized rims. |
| Fuel Capacity | 7.57 litres (2.00 US gallons) |
| Ground Clearance | 211 mm (8.3 inches) |
| Overall Height | 1158 mm (45.6 inches) |
| Overall Length | 2106 mm (82.9 inches) |
| Overall Width | 836 mm (32.9 inches) |
| Seat Height | 884 mm (34.8 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 132.0 kg (291.1 pounds) |
| Color Options | Firecracker Red, Oriental Blue |
| Comments | Special edition. Hand guards. Tapered handlebar. Skid plate. Frame covers. |
| Factory Warranty | 12 months |
| Starter | Electric |
