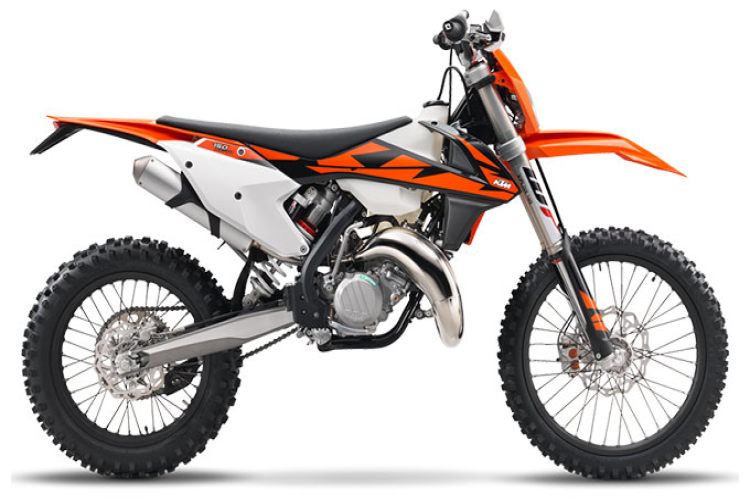

KTM 150 XC-W 2018 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 143.90 ccm (8.78 cubic inches) |
| Engine Type | Reed intake. |
| Engine Details | Single cylinder, two-stroke |
| Bore X Stroke | 58.0 x 54.5 mm (2.3 x 2.1 inches) |
| Fuel System | Carburettor. Mikuni TMX. |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Multi-plate clutch, Brembo hydraulics |
| Driveline | 14:50. Primary drive: 23:73. |
| Frame Type | 25CrMo4 steel central-tube frame |
| Front Brakes | Single disc. Four-piston calipers. |
| Front Brakes Diameter | 260 mm (10.2 inches) |
| Front Suspension | WP XPlor 48 upside-down fork |
| Front Wheel Travel | 300 mm (11.8 inches) |
| Rake | 26.5° |
| Rear Brakes | Single disc. Two-piston calipers. |
| Rear Brakes Diameter | 220 mm (8.7 inches) |
| Rear Suspension | WP Xplor PDS shock absorber |
| Rear Wheel Travel | 310 mm (12.2 inches) |
| Dry Weight | 91.5 kg (201.7 pounds) |
| Fuel Capacity | 10.00 litres (2.64 gallons) |
| Ground Clearance | 370 mm (14.6 inches) |
| Seat Height | 960 mm (37.8 inches) If adjustable, lowest setting. |
| Color Options | Orange/white |
| Starter | Kick |
