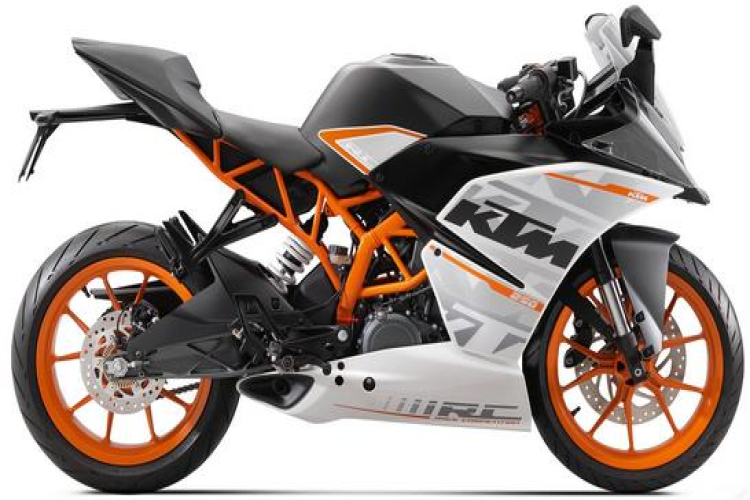

KTM RC 250 R 2016 specs

Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.

Displacement 248.80 ccm (15.18 cubic inches)
Engine Details Single cylinder, four-stroke
Power 30.84 HP (22.5 kW))
Compression 14.5:1
Bore X Stroke 72.0 x 61.1 mm (2.8 x 2.4 inches)
Fuel System Injection
Ignition Bosch EMS
Lubrication System Wet sump
Cooling System Liquid
Gearbox 6-speed
Transmission Type Final Drive Chain
Clutch Antihopping clutch, mechanically operated
Driveline 5/8  x  1/4 X Ring. Primary drive: 22:72.
Exhaust System Akrapovic
Engine Type Reed intake.
Torque 28.00 Nm (2.9 kgf-m or 20.7 ft.lbs) @ 11000 RPM

Frame Type Steel trellis, powder coated
Front Brakes Single disc
Front Brakes Diameter 300 mm (11.8 inches)
Front Suspension WP upside-down Ø 43 mm
Front Tyre 95/75-R17
Front Wheel Travel 125 mm (4.9 inches)
Rake 23.5°
Rear Brakes Single disc
Rear Brakes Diameter 230 mm (9.1 inches)
Rear Suspension WP monoshock
Rear Tyre 115/75-R17
Rear Wheel Travel 150 mm (5.9 inches)

Alternate Seat Height 766 mm (30.2 inches) If adjustable, highest setting.
Fuel Capacity 10.00 litres (2.64 gallons)
Ground Clearance 179 mm (7.0 inches)
Seat Height 758 mm (29.8 inches) If adjustable, lowest setting.
Dry Weight 82.0 kg (180.8 pounds)
Reserve Fuel Capacity 1.50 litres (0.40 gallons)

Color Options Orange/grey
Starter Electric
Electrical External starter / 12 V 0.8 Ah battery.
