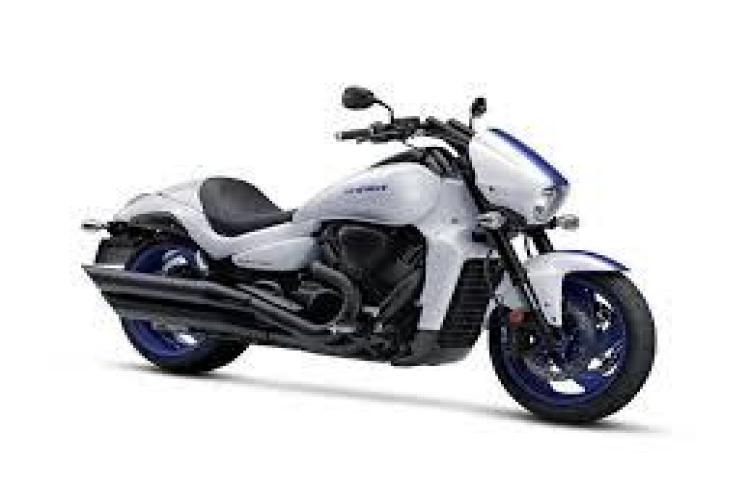

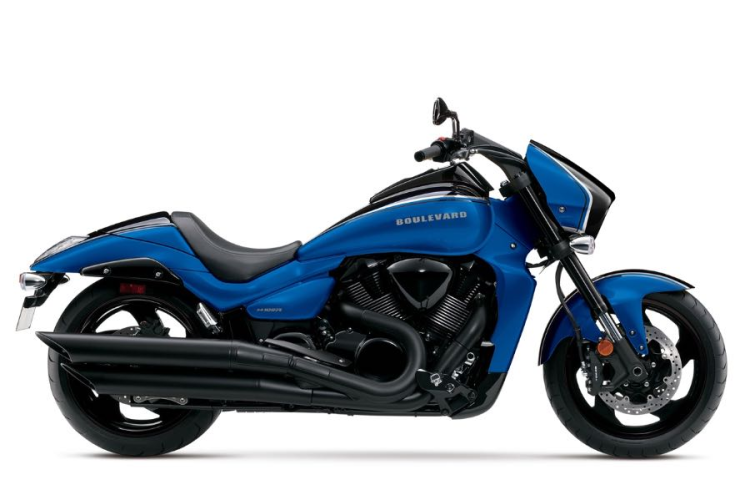

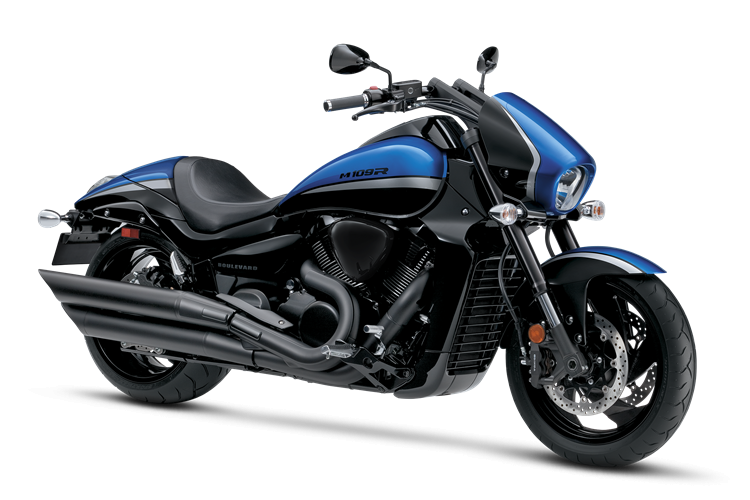

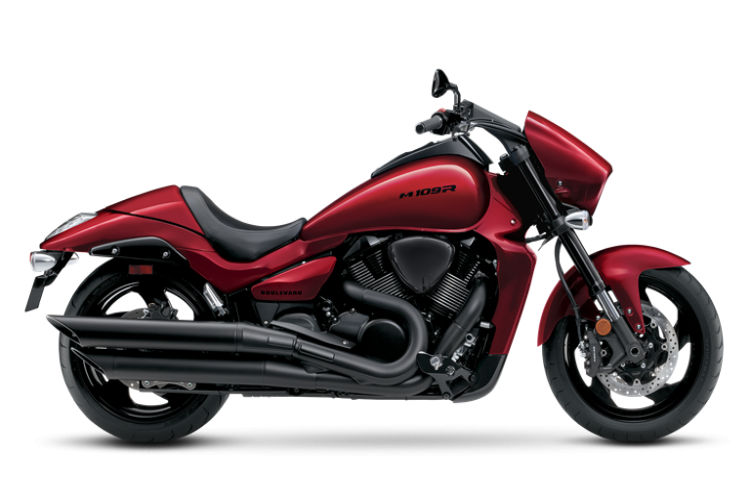

Suzuki Boulevard M109R B O S S 2020 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1783.00 ccm (108.80 cubic inches) |
| Engine Type | 54-degree V-twin |
| Engine Details | V2, four-stroke |
| Power | 125.00 HP (91.2 kW)) @ 6200 RPM |
| Torque | 160.00 Nm (16.3 kgf-m or 118.0 ft.lbs) @ 3200 RPM |
| Compression | 10.5:1 |
| Bore X Stroke | 112.0 x 90.5 mm (4.4 x 3.6 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Suzuki Dual Throttle Valve system |
| Ignition | Electronic ignition |
| Cooling System | Liquid |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Shaft drive (cardan) |
| Driveline | Constant mesh |
| Exhaust System | 2-into-1-into-2 stainless steel blacked-out exhaust |
| Lubrication System | Wet sump |
| Clutch | Wet multi-plate |
| Frame Type | Double cradle steel frame |
| Front Brakes | Double disc. Dual piston |
| Front Brakes Diameter | 310 mm (12.2 inches) |
| Front Suspension | Inverted telescopic, coil spring, oil damped |
| Front Tyre | 130/70-R18 |
| Front Wheel Travel | 130 mm (5.1 inches) |
| Rear Brakes | Single disc. Single piston |
| Rear Brakes Diameter | 275 mm (10.8 inches) |
| Rear Suspension | Link style, solo shock, coil spring, oil damped |
| Rear Tyre | 240/40-R18 |
| Rear Wheel Travel | 118 mm (4.6 inches) |
| Overall Width | 875 mm (34.4 inches) |
| Seat Height | 705 mm (27.8 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 347.0 kg (765.0 pounds) |
| Fuel Capacity | 18.55 litres (4.90 gallons) |
| Ground Clearance | 130 mm (5.1 inches) |
| Overall Length | 2,450 mm (96.5 inches) |
| Overall Height | 1130 mm (44.5 inches) |
| Starter | Electric |
| Color Options | Glass Sparkle Black/Candy Max Orange, Metallic Mystic Silver/Glass Sparkle Black |
| Factory Warranty | 12 month unlimited mileage limited warranty. |
| Instruments | Tank-mounted analog speedometer and LCD odometer, dual tripmeters, fuel gauge and clock. |
| Comments | Solo-seat cover (included) can be quickly swapped for the passenger seat. Blacked-out exhaust system, clutch cover, magneto cover, cylinder head covers, air cleaner cover, and final drive case. |
