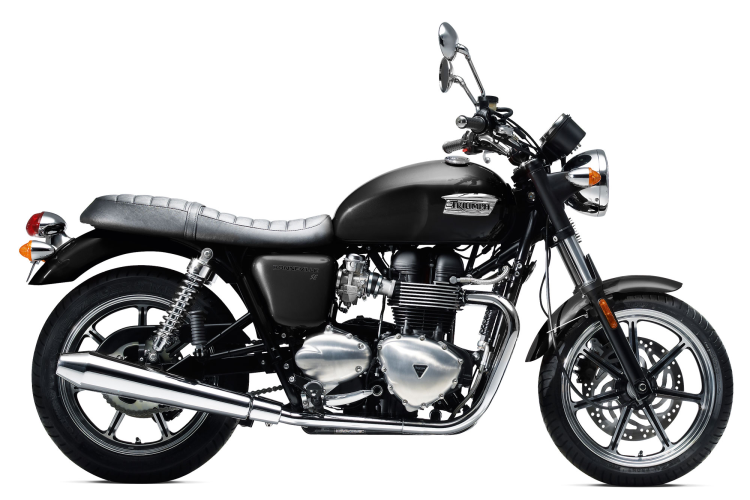

Triumph Bonneville SE 2012 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 865.00 ccm (52.78 cubic inches) |
| Engine Type | 360 degree firing interval |
| Engine Details | Twin, four-stroke |
| Power | 66.00 HP (48.2 kW)) @ 7500 RPM |
| Torque | 67.80 Nm (6.9 kgf-m or 50.0 ft.lbs) @ 5800 RPM |
| Compression | 9.2:1 |
| Bore X Stroke | 90.0 x 68.0 mm (3.5 x 2.7 inches) |
| Fuel System | Injection. Multipoint sequential electronic fuel injection with SAI |
| Ignition | Digital-inductive type via engine management system |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Wet. multi-plate |
| Driveline | X ring chain. Primary drive: Gear. |
| Fuel Consumption | 4.70 litres/100 km (21.3 km/l or 50.05 mpg) |
| Greenhouse Gases | 109.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Stainless steel headers, twin chromed upswept mufflers |
| Frame Type | Tubular steel cradle. Swing arm: Engine. |
| Front Brakes | Single disc |
| Front Brakes Diameter | 310 mm (12.2 inches) |
| Front Suspension | Kayaba 41mm forks. 120mm travel |
| Front Tyre | 110/70-R17 |
| Rake | 27.0° |
| Rear Brakes | Single disc |
| Rear Brakes Diameter | 255 mm (10.0 inches) |
| Rear Suspension | Kayaba chromed spring twin shocks with adjustable preload. 100mm rear wheel travel |
| Rear Tyre | 130/80-R17 |
| Wheels | Cast aluminum alloy |
| Front Wheel Travel | 120 mm (4.7 inches) |
| Rear Wheel Travel | 100 mm (3.9 inches) |
| Trail | 106 mm (4.2 inches) |
| Fuel Capacity | 16.00 litres (4.23 gallons) |
| Oil Capacity | 4.50 litres (0.30 quarts) |
| Overall Height | 1,130 mm (44.5 inches) |
| Overall Length | 2,113 mm (83.2 inches) |
| Overall Width | 790 mm (31.1 inches) |
| Seat Height | 739 mm (29.1 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 225.0 kg (496.0 pounds) |
| Dry Weight | 203.0 kg (447.5 pounds) |
| Power Weight Ratio | 0.3350 HP/kg |
| Color Options | Phantom Black. Intense Orange and Phantom Black. Pacific Blue and Fusion White |
| Factory Warranty | 2 yeras |
| Instruments | Analogue speedometer and tachometer with odometer, clock and trip information |
| Starter | Electric |
| Comments | Special edition |
