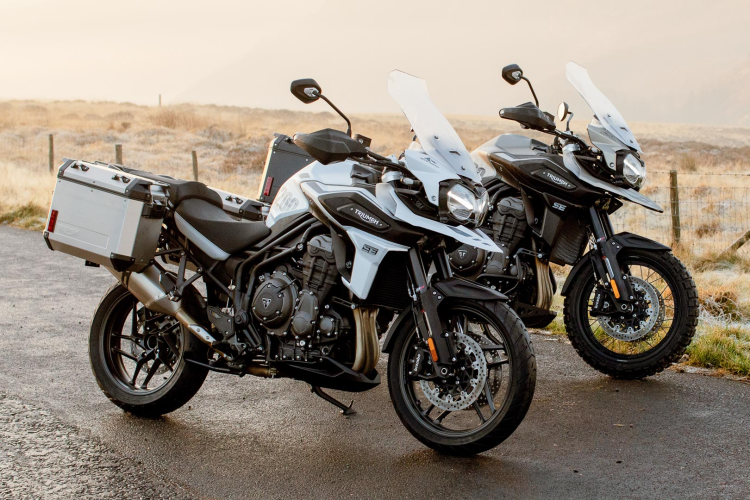

Triumph Tiger 1200 XRX 2020 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1215.00 ccm (74.14 cubic inches) |
| Engine Details | In-line three, four-stroke |
| Power | 139.00 HP (101.5 kW)) @ 9350 RPM |
| Torque | 122.00 Nm (12.4 kgf-m or 90.0 ft.lbs) @ 7600 RPM |
| Compression | 11.0:1 |
| Bore X Stroke | 85.0 x 71.4 mm (3.3 x 2.8 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Shaft drive (cardan) |
| Clutch | Wet, multi-plate hydraulically operated, torque assist |
| Fuel Consumption | 4.90 litres/100 km (20.4 km/l or 48.00 mpg) |
| Greenhouse Gases | 113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Stainless steel 3 into 1 side mounted stainless steel silencer |
| Frame Type | Tubular steel trellis frame. Single-sided, cast aluminium alloy swing arm with shaft drive. |
| Front Brakes | Double disc. Floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS. |
| Front Brakes Diameter | 305 mm (12.0 inches) |
| Front Suspension | WP 48 mm upside down forks, electronically adjustable damping, |
| Front Tyre | 120/70-R19 |
| Front Wheel Travel | 168 mm (6.6 inches) |
| Rake | 23.2° |
| Rear Brakes | Single disc. Nissin 2-piston sliding caliper, Switchable ABS |
| Rear Brakes Diameter | 282 mm (11.1 inches) |
| Rear Suspension | WP monoshock, electronically adjustable semi active damping, |
| Rear Tyre | 170/60-R17 |
| Rear Wheel Travel | 158 mm (6.2 inches) |
| Trail | 100 mm (3.9 inches) |
| Wheels | Cast aluminum alloy 10-spoke |
| Dry Weight | 244.0 kg (537.9 pounds) |
| Fuel Capacity | 20.00 litres (5.28 gallons) |
| Oil Capacity | 4.00 litres (0.26 quarts) |
| Overall Height | 1,450 mm (57.1 inches) |
| Overall Length | 2,248 mm (88.5 inches) |
| Overall Width | 830 mm (32.7 inches) |
| Power Weight Ratio | 0.5697 HP/kg |
| Seat Height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Alternate Seat Height | 855 mm (33.7 inches) If adjustable, highest setting. |
| Color Options | Jet Black, Pure White, Lucerne Blue, Matt Jet Black |
| Factory Warranty | 24 months unlimited mileage |
| Instruments | LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system |
| Starter | Electric |
| Comments | Windscreen. Auxiliary lights. Engine protection bars. Hand guards. Sump guard. Advanced On Board computer. Cruise Control. Semi Active Suspension. |

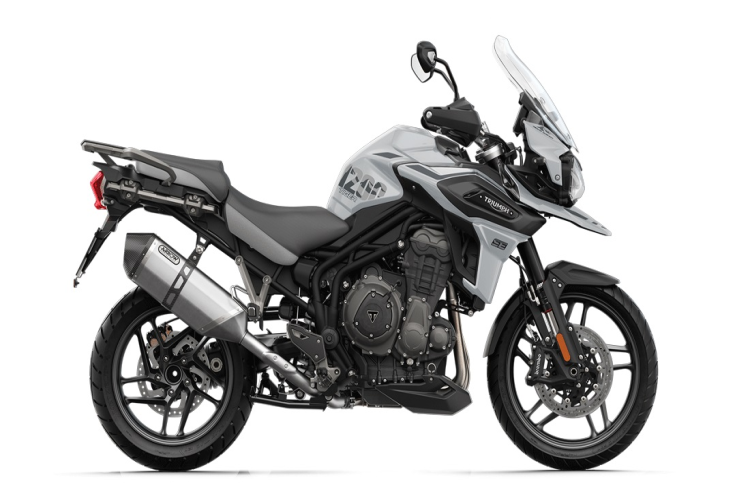

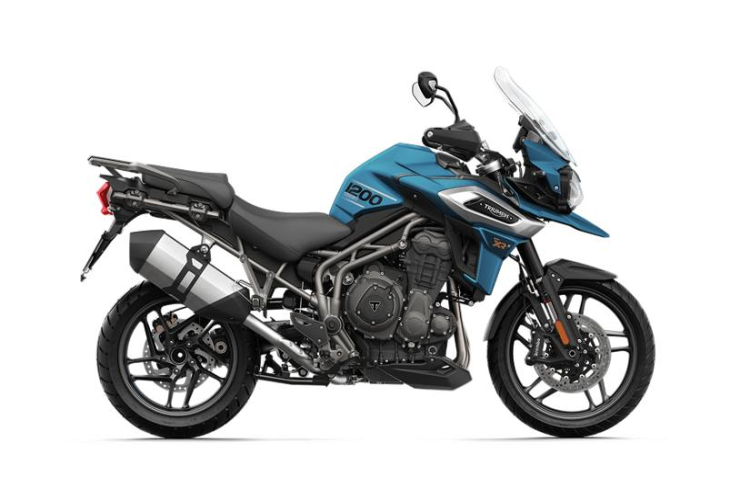

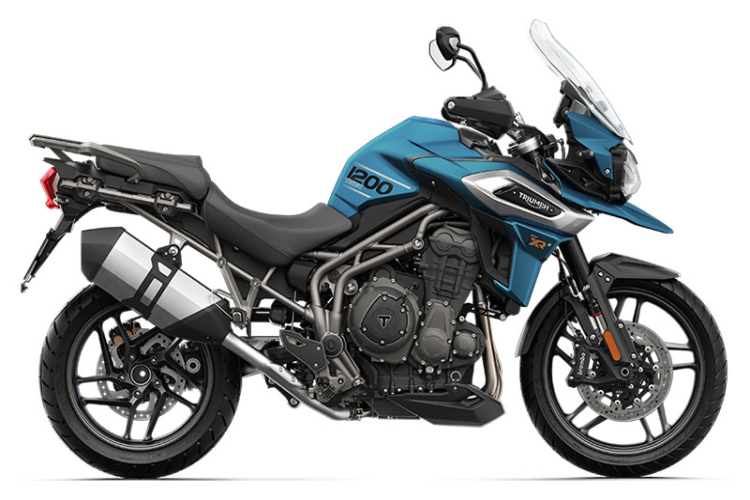

Other Triumph Tiger 1200 XRX variants
