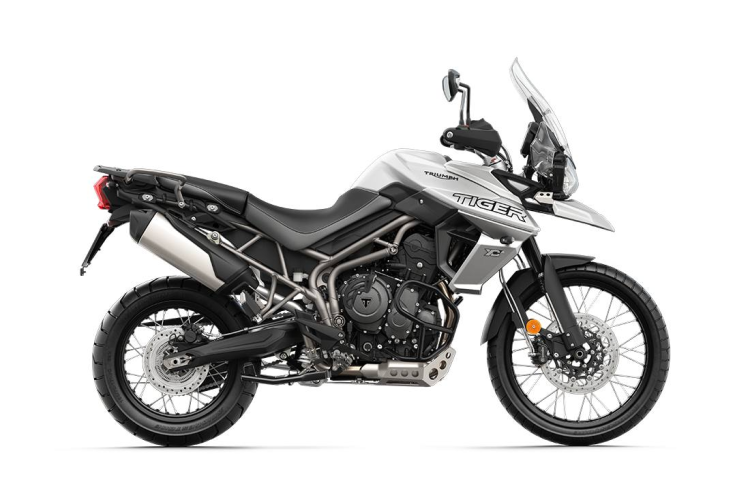

Triumph Tiger 800 XCA 2019 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 800.00 ccm (48.82 cubic inches) |
| Engine Details | In-line three, four-stroke |
| Power | 95.00 HP (69.3 kW)) @ 9500 RPM |
| Torque | 79.00 Nm (8.1 kgf-m or 58.3 ft.lbs) @ 8050 RPM |
| Compression | 11.3:1 |
| Bore X Stroke | 74.1 x 61.9 mm (2.9 x 2.4 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Multipoint sequential electronic fuel injection |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Wet. multi-plate |
| Driveline | O ring chain |
| Fuel Consumption | 5.74 litres/100 km (17.4 km/l or 40.98 mpg) |
| Greenhouse Gases | 133.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Stainless steel 3 into 1. high level stainless steel silencer |
| Rear Tyre | 150/70-17 |
| Rear Wheel Travel | 215 mm (8.5 inches) |
| Trail | 95 mm (3.8 inches) |
| Wheels | Aluminium rims, wire spoked |
| Frame Type | Tubular steel trellis. Twin-sided, cast aluminium alloy swingarm. |
| Front Brakes | Double disc. Floating discs, Brembo 2-piston sliding calipers, Switchable ABS. |
| Front Brakes Diameter | 305 mm (12.0 inches) |
| Front Suspension | WP 1.69 in (43 mm) upside down forks, with adjustable rebound and compression damping |
| Front Tyre | 90/90-21 |
| Front Wheel Travel | 220 mm (8.7 inches) |
| Rake | 23.4° |
| Rear Brakes | Single disc. Nissin single piston sliding caliper, Switchable ABS. |
| Rear Brakes Diameter | 255 mm (10.0 inches) |
| Rear Suspension | WP monoshock with remote oil reservoir, hydraulically adjustable preload |
| Alternate Seat Height | 860 mm (33.9 inches) If adjustable, highest setting. |
| Dry Weight | 203.0 kg (447.5 pounds) |
| Fuel Capacity | 19.00 litres (5.02 gallons) |
| Oil Capacity | 3.70 litres (0.24 quarts) |
| Overall Height | 1,390 mm (54.7 inches) |
| Overall Length | 2,215 mm (87.2 inches) |
| Overall Width | 845 mm (33.3 inches) |
| Power Weight Ratio | 0.4680 HP/kg |
| Seat Height | 840 mm (33.1 inches) If adjustable, lowest setting. |
| Carrying Capacity | Top box, saddle bags |
| Color Options | Matt Khaki Green |
| Comments | Windscreen. Heated grips. Heated rider and passenger seat |
| Instruments | LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, switchable ABS and clock |
| Starter | Electric |

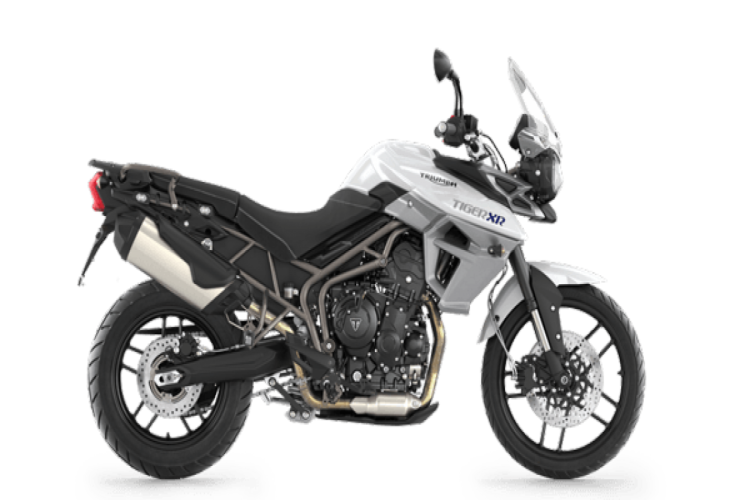

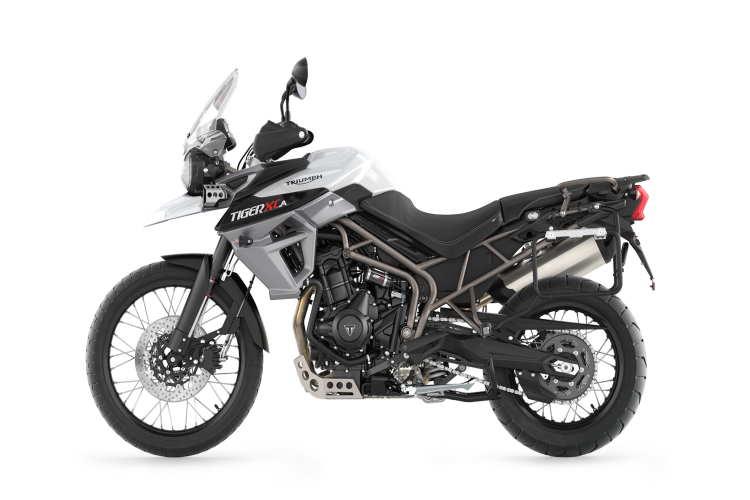

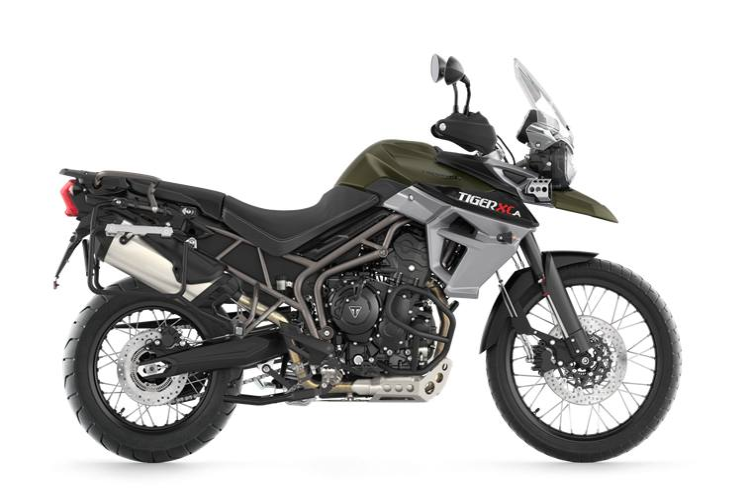

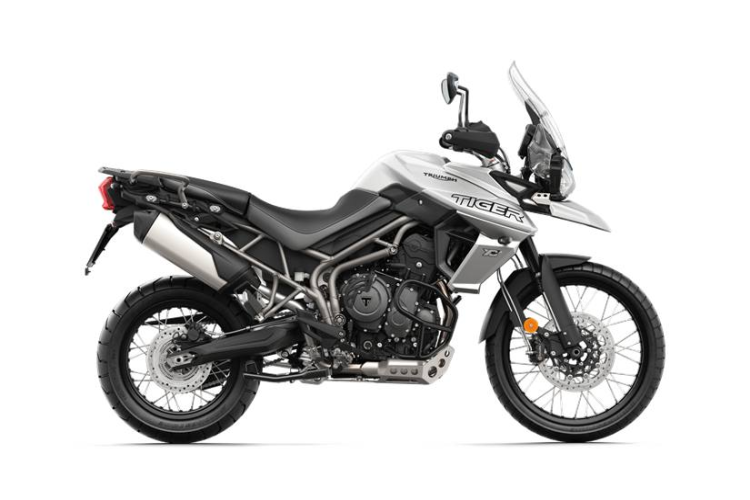

Other Triumph Tiger 800 XCA variants
