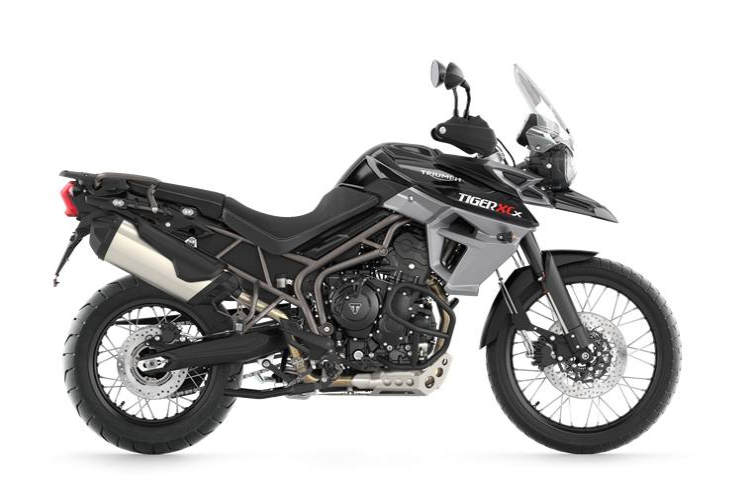

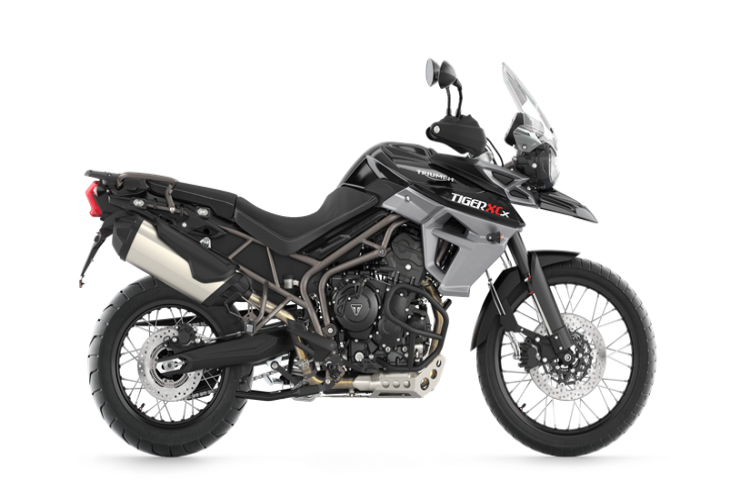

Triumph Tiger 800 XCx Low 2016 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 799.00 ccm (48.75 cubic inches) |
| Engine Details | In-line three, four-stroke |
| Power | 95.00 HP (69.3 kW)) @ 9300 RPM |
| Torque | 79.00 Nm (8.1 kgf-m or 58.3 ft.lbs) @ 7850 RPM |
| Compression | 11.3:1 |
| Bore X Stroke | 74.0 x 61.9 mm (2.9 x 2.4 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Multipoint sequential electronic fuel injection |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Wet. multi-plate |
| Driveline | O ring chain |
| Exhaust System | Stainless steel 3 into 1. high level stainless steel silencer |
| Frame Type | Tubular steel trellis. Twin-sided, cast aluminium alloy swingarm. |
| Front Brakes | Double disc. Floating discs, Nissin 2-piston sliding calipers, Switchable ABS. |
| Front Brakes Diameter | 308 mm (12.1 inches) |
| Front Suspension | WP 43 mm upside down forks, adjustable rebound and compression damping |
| Front Tyre | 90/90-21 |
| Front Wheel Travel | 220 mm (8.7 inches) |
| Rake | 24.3° |
| Rear Brakes | Single disc. Nissin single piston sliding caliper, Switchable ABS. |
| Rear Brakes Diameter | 255 mm (10.0 inches) |
| Rear Suspension | WP monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment |
| Rear Tyre | 150/70-17 |
| Rear Wheel Travel | 164 mm (6.5 inches) |
| Trail | 95 mm (3.8 inches) |
| Wheels | Wire spoked, aluminium rim |
| Alternate Seat Height | 810 mm (31.9 inches) If adjustable, highest setting. |
| Dry Weight | 196.0 kg (432.1 pounds) |
| Fuel Capacity | 19.00 litres (5.02 gallons) |
| Oil Capacity | 3.70 litres (0.24 quarts) |
| Overall Height | 1,390 mm (54.7 inches) |
| Overall Length | 2,215 mm (87.2 inches) |
| Overall Width | 845 mm (33.3 inches) |
| Power Weight Ratio | 0.4847 HP/kg |
| Seat Height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 220.0 kg (485.0 pounds) |
| Carrying Capacity | Top box, saddle bags |
| Color Options | White, black, blue, silver |
| Comments | Windscreen. Traction control. Cruise control. |
| Factory Warranty | 24 months |
| Instruments | LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, switchable ABS and clock |
| Starter | Electric |
