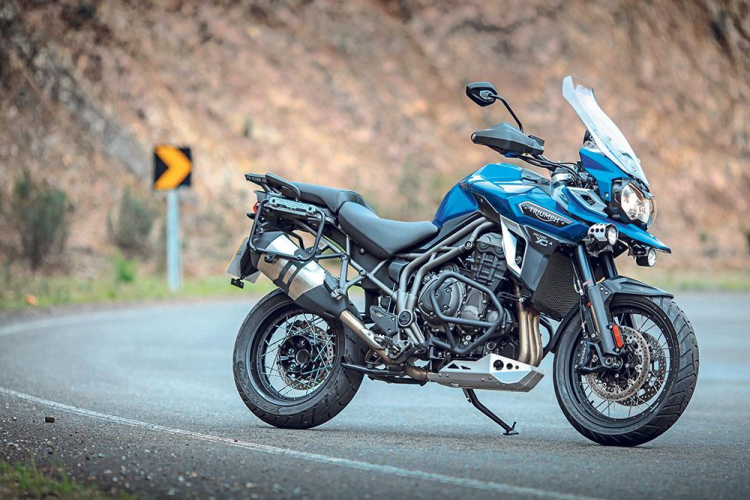

Triumph Tiger Explorer XRt 2017 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1215.00 ccm (74.14 cubic inches) |
| Engine Details | In-line three, four-stroke |
| Power | 139.00 HP (101.5 kW)) @ 9300 RPM |
| Torque | 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 6200 RPM |
| Compression | 11.0:1 |
| Bore X Stroke | 85.0 x 71.4 mm (3.3 x 2.8 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Shaft drive (cardan) |
| Clutch | Wet. multi-plate |
| Fuel Consumption | 4.90 litres/100 km (20.4 km/l or 48.00 mpg) |
| Greenhouse Gases | 113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Emission Details | Euro 4 |
| Exhaust System | Stainless steel 3 into 1 side mounted stainless steel silencer |
| Frame Type | Tubular steel trellis frame. Single-sided, cast aluminium alloy swing arm with shaft drive. |
| Front Brakes | Double disc. Floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS |
| Front Brakes Diameter | 305 mm (12.0 inches) |
| Front Suspension | WP 48 mm upside down forks, electronically adjustable damping, |
| Front Tyre | 120/70-R19 |
| Front Wheel Travel | 190 mm (7.5 inches) |
| Rake | 23.1° |
| Rear Brakes | Single disc. Nissin 2-piston sliding caliper, Switchable ABS |
| Rear Brakes Diameter | 282 mm (11.1 inches) |
| Rear Suspension | WP monoshock, electronically adjustable semi active damping, |
| Rear Tyre | 170/60-R17 |
| Rear Wheel Travel | 193 mm (7.6 inches) |
| Seat | Heated rider and passenger seat |
| Trail | 99 mm (3.9 inches) |
| Wheels | Cast aluminium alloy 10-spoke |
| Alternate Seat Height | 857 mm (33.7 inches) If adjustable, highest setting. |
| Dry Weight | 254.0 kg (560.0 pounds) |
| Fuel Capacity | 20.00 litres (5.28 gallons) |
| Oil Capacity | 4.00 litres (0.26 quarts) |
| Overall Height | 1,470 mm (57.9 inches) |
| Overall Width | 885 mm (34.8 inches) |
| Power Weight Ratio | 0.5472 HP/kg |
| Seat Height | 837 mm (33.0 inches) If adjustable, lowest setting. |
| Color Options | Red, blue, white |
| Comments | Windscreen. Auxiliary lights. Engine protection bars. Cruise Control. Hand Guards. Heated Grips. Inertial Measurement Unit (IMU). Electrically adjustable Touring screen. |
| Factory Warranty | 24 months unlimited mileage |
| Instruments | LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system |
| Starter | Electric |
