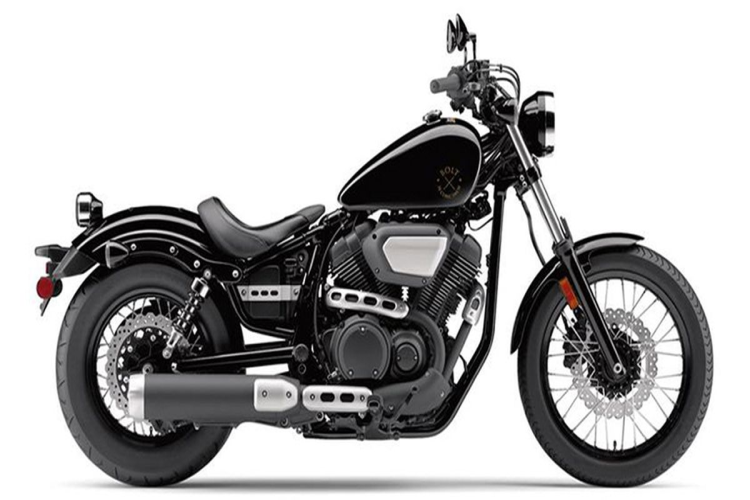

Yamaha Bolt 2018 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 942.00 ccm (57.48 cubic inches) |
| Engine Details | V2, four-stroke |
| Compression | 9.0:1 |
| Bore X Stroke | 85.0 x 83.0 mm (3.3 x 3.3 inches) |
| Valves Per Cylinder | 2 |
| Fuel System | Injection. Twin-Bore electronic fuel injection; throttle position sensor |
| Ignition | TCI (Transistor Controlled Ignition) |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multiplate wet clutch |
| Fuel Consumption | 4.61 litres/100 km (21.7 km/l or 51.02 mpg) |
| Greenhouse Gases | 107.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Frame Type | Aluminum double-cradle |
| Front Brakes | Single disc |
| Front Brakes Diameter | 298 mm (11.7 inches) |
| Front Suspension | Telescopic fork |
| Front Tyre | 100/90-M19 |
| Front Wheel Travel | 119 mm (4.7 inches) |
| Rake | 29.0° |
| Rear Brakes | Single disc |
| Rear Brakes Diameter | 298 mm (11.7 inches) |
| Rear Suspension | Dual shocks |
| Rear Tyre | 150/80-M16 |
| Rear Wheel Travel | 71 mm (2.8 inches) |
| Trail | 130 mm (5.1 inches) |
| Wheels | Wire spoked |
| Fuel Capacity | 12.87 litres (3.40 gallons) |
| Ground Clearance | 130 mm (5.1 inches) |
| Overall Height | 1,120 mm (44.1 inches) |
| Overall Length | 2,291 mm (90.2 inches) |
| Overall Width | 945 mm (37.2 inches) |
| Seat Height | 691 mm (27.2 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 245.9 kg (542.0 pounds) |
| Color Options | Raven |
| Factory Warranty | 1 Year Limited |
| Starter | Electric |

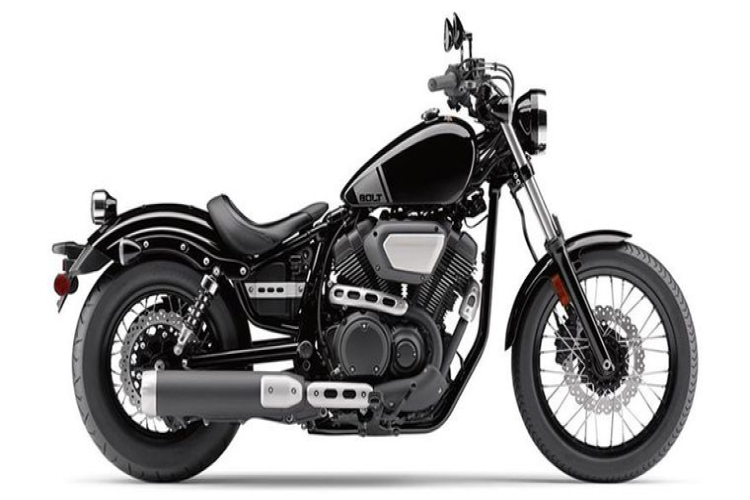

| Comments | Model also called 2017 Star Bolt. |
| Modifications Compared To Previous Model | Flangeless fuel tank design. Wire-spoked aluminum rims. |

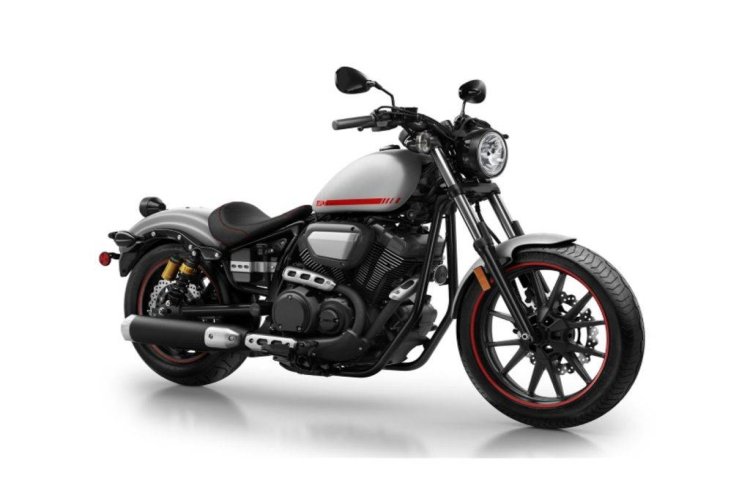

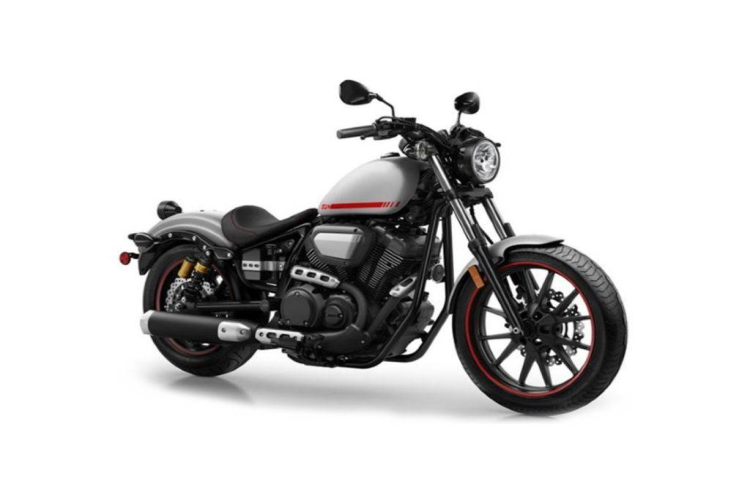

Other Yamaha Bolt variants
