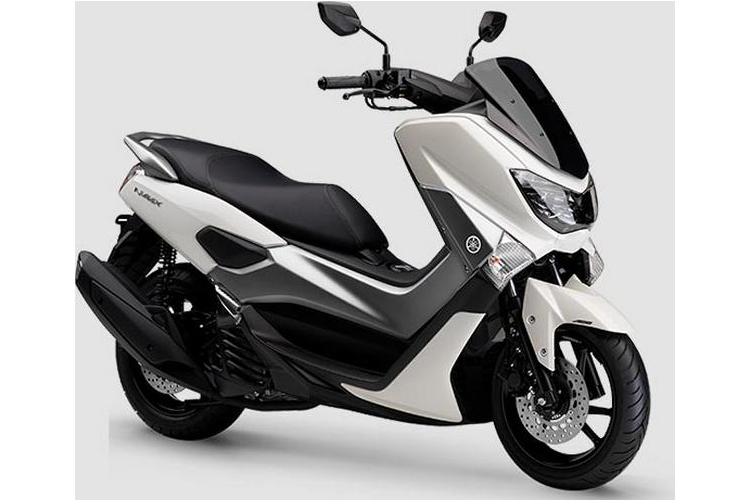

Yamaha NMAX 160 2021 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 155.0 ccm (9.46 cubic inches) |
| Engine Type | Single cylinder, four-stroke |
| Power | 15.4 HP (11.2 kW)) @ 8000 RPM |
| Torque | 14.0 Nm (1.4 kgf-m or 10.3 ft.lbs) @ 6500 RPM |
| Compression | 11.6:1 |
| Bore X Stroke | 58.0 x 58.7 mm (2.3 x 2.3 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection |
| Ignition | Transistorised |
| Lubrication System | Wet sump |
| Cooling System | Liquid |
| Gearbox | Automatic |
| Transmission Type Final Drive | Belt (final drive) |
| Clutch | Dry centrifugal |
| Driveline | V-Belt Automatic |
| Frame Type | Backbone |
| Front Brakes | Single disc. Hydraulic. ABS. |
| Front Brakes Diameter | 230 mm (9.1 inches) |
| Front Suspension | Telescopic fork |
| Front Tyre | 110/70-13 |
| Front Wheel Travel | 110 mm (4.3 inches) |
| Rake | 26.0° |
| Rear Brakes | Single disc. ABS. |
| Rear Brakes Diameter | 230 mm (9.1 inches) |
| Rear Suspension | Unit Swing, monoshock |
| Rear Tyre | 130/70-13 |
| Rear Wheel Travel | 84 mm (3.3 inches) |
| Trail | 92 mm (3.6 inches) |
| Fuel Capacity | 6.60 litres (1.74 US gallons) |
| Ground Clearance | 135 mm (5.3 inches) |
| Oil Capacity | 1.00 litres (1.06 US quarts) |
| Overall Height | 1115 mm (43.9 inches) |
| Overall Length | 1955 mm (77.0 inches) |
| Overall Width | 740 mm (29.1 inches) |
| Seat Height | 765 mm (30.1 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 127.0 kg (280.0 pounds) |
| Carrying Capacity | Underseat storage |
| Color Options | Navy Blue, S-White, Matt Black |
| Starter | Electric |
