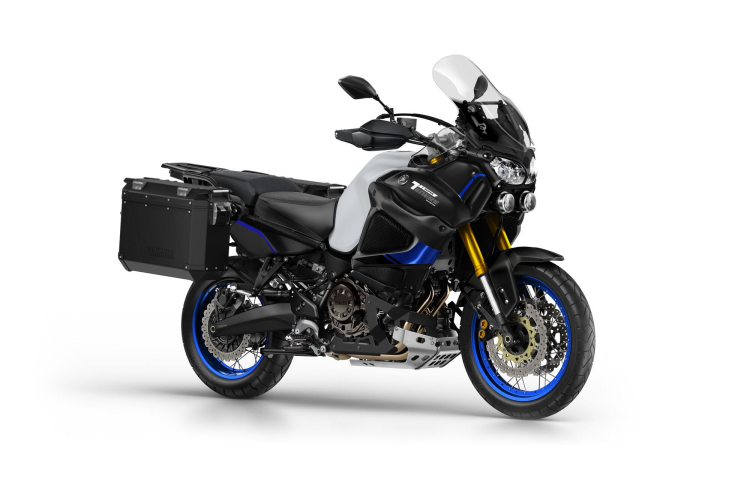

Yamaha Super Tenere 1200ZE Raid Edition 2020 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1199.0 ccm (73.16 cubic inches) |
| Engine Type | Twin, four-stroke |
| Power | 112.0 HP (81.8 kW)) @ 7250 RPM |
| Torque | 117.0 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 6000 RPM |
| Compression | 11.0:1 |
| Bore X Stroke | 98.0 x 79.5 mm (3.9 x 3.1 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Fuel Injection with YCC-T |
| Ignition | Transistor Controlled Ignition |
| Lubrication System | Dry sump |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Shaft drive (cardan) (final drive) |
| Clutch | Multi-plate wet clutch |
| Driveline | Constant mesh |
| Fuel Consumption | 5.47 litres/100 km (18.3 km/l or 43.00 mpg) |
| Greenhouse Gases | 126.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Rear Brakes | Single disc. Antilock Braking System (ABS) and Unified Braking System (UBS) |
| Rear Brakes Diameter | 282 mm (11.1 inches) |
| Rear Suspension | Swing Arm |
| Rear Tyre | 150/70-R17 |
| Rear Wheel Travel | 190 mm (7.5 inches) |
| Trail | 126 mm (5.0 inches) |
| Frame Type | Steel tube backbone |
| Front Brakes | Double disc. Antilock Braking System (ABS) and Unified Braking System (UBS) |
| Front Brakes Diameter | 310 mm (12.2 inches) |
| Front Suspension | 43mm inverted fork; electronically adjustable compression and rebound damping; |
| Front Tyre | 110/80-R19 |
| Front Wheel Travel | 190 mm (7.5 inches) |
| Rake | 28.0° |
| Fuel Capacity | 23.00 litres (6.08 US gallons) |
| Ground Clearance | 190 mm (7.5 inches) |
| Oil Capacity | 4.20 litres (4.44 US quarts) |
| Overall Height | 1410 mm (55.5 inches) |
| Overall Length | 2255 mm (88.8 inches) |
| Overall Width | 980 mm (38.6 inches) |
| Seat Height | 846 mm (33.3 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 264.9 kg (584.0 pounds) |
| Color Options | Yamaha Blue |
| Factory Warranty | 1 Year Limited Factory Warranty |
| Starter | Electric |
