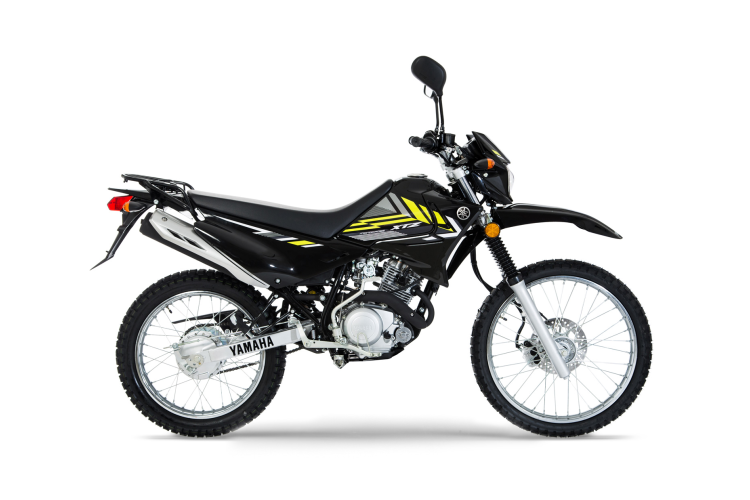

Yamaha XTZ125 2022 specs

Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.

Displacement 124.0 ccm (7.57 cubic inches)
Engine Type Single cylinder, four-stroke
Power 10.2 HP (7.4 kW)) @ 7500 RPM
Torque 9.9 Nm (1.0 kgf-m or 7.3 ft.lbs) @ 5500 RPM
Compression 10.0:1
Bore X Stroke 54.0 x 54.0 mm (2.1 x 2.1 inches)
Valves Per Cylinder 2
Fuel System Carburettor
Ignition CDI
Lubrication System Wet sump
Cooling System Air
Gearbox 5-speed
Transmission Type Final Drive Chain (final drive)
Clutch Wet, multiple-disc coil spring

Frame Type Diamond
Front Brakes Single disc
Front Brakes Diameter 245 mm (9.6 inches)
Front Suspension Telescopic forks
Front Tyre 80/90-21
Front Wheel Travel 180 mm (7.1 inches)
Rear Brakes Expanding brake (drum brake)
Rear Brakes Diameter 130 mm (5.1 inches)
Rear Suspension Swingarm
Rear Tyre 110/80-18
Rear Wheel Travel 180 mm (7.1 inches)
Seat Dual seat and passenger grab rails

Fuel Capacity 11.00 litres (2.91 US gallons)
Ground Clearance 260 mm (10.2 inches)
Oil Capacity 1.20 litres (1.27 US quarts)
Overall Height 1115 mm (43.9 inches)
Overall Length 2090 mm (82.3 inches)
Overall Width 830 mm (32.7 inches)
Seat Height 840 mm (33.1 inches) If adjustable, lowest setting.
Weight Incl Oil Gas Etc 118.0 kg (260.1 pounds)

Color Options Power Black, Yamaha Blue
Comments Sold in Asia.
Instruments Analogue
Starter Electric
