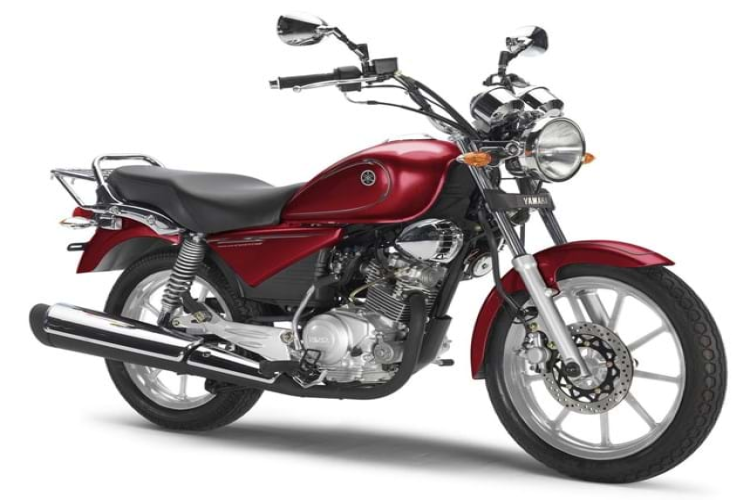

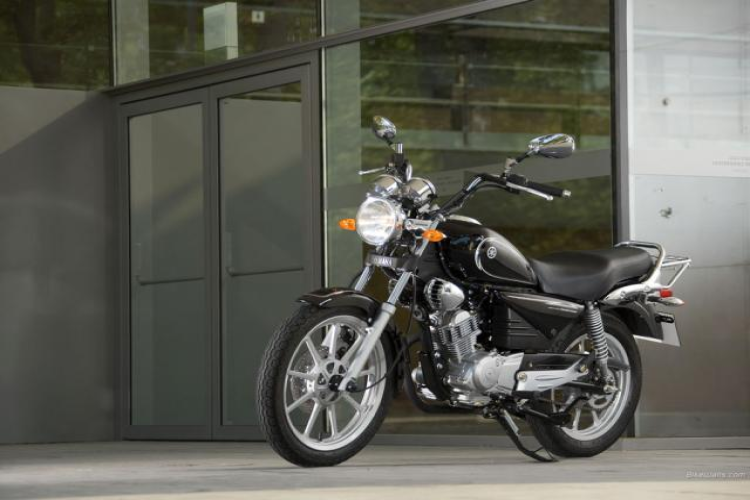

Yamaha YBR125 Custom 2016 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 124.00 ccm (7.57 cubic inches) |
| Engine Type | Forward-inclined single cylinder |
| Engine Details | Single cylinder, four-stroke |
| Power | 10.00 HP (7.3 kW)) @ 7800 RPM |
| Torque | 9.60 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 6000 RPM |
| Compression | 10.0:1 |
| Bore X Stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Valves Per Cylinder | 2 |
| Fuel System | Injection. EFI |
| Ignition | TCI |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Wet, multiple-disc coil spring |
| Driveline | Constant mesh |
| Exhaust System | Chrome-plated slash-cut muffler |
| Emission Details | EU 3 |
| Lubrication System | Wet sump |
| Rear Wheel Travel | 105 mm (4.1 inches) |
| Trail | 90 mm (3.5 inches) |
| Frame Type | Diamond Shaped, steel |
| Front Brakes | Double disc. Hydraulic |
| Front Brakes Diameter | 245 mm (9.6 inches) |
| Front Suspension | Telescopic forks |
| Front Tyre | 3.00-18 |
| Front Wheel Travel | 120 mm (4.7 inches) |
| Rake | 26.0° |
| Rear Brakes | Expanding brake (drum brake) |
| Rear Brakes Diameter | 130 mm (5.1 inches) |
| Rear Suspension | Link suspension |
| Rear Tyre | 3.50-16 |
| Fuel Capacity | 12.00 litres (3.17 gallons) |
| Ground Clearance | 140 mm (5.5 inches) |
| Oil Capacity | 1.20 litres (0.08 quarts) |
| Overall Length | 2,055 mm (80.9 inches) |
| Overall Width | 845 mm (33.3 inches) |
| Seat Height | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 129.0 kg (284.4 pounds) |
| Overall Height | 1,125 mm (44.3 inches) |
| Dry Weight | 118.0 kg (260.1 pounds) |
| Power Weight Ratio | 0.0852 HP/kg |
| Carrying Capacity | Rear rack. |
| Color Options | Light gray, red, black |
| Comments | Chrome styling and raised handlebars. Custom-style teardrop fuel tank. Ultra-low slung seat for comfortable riding |
| Starter | Electric & kick |

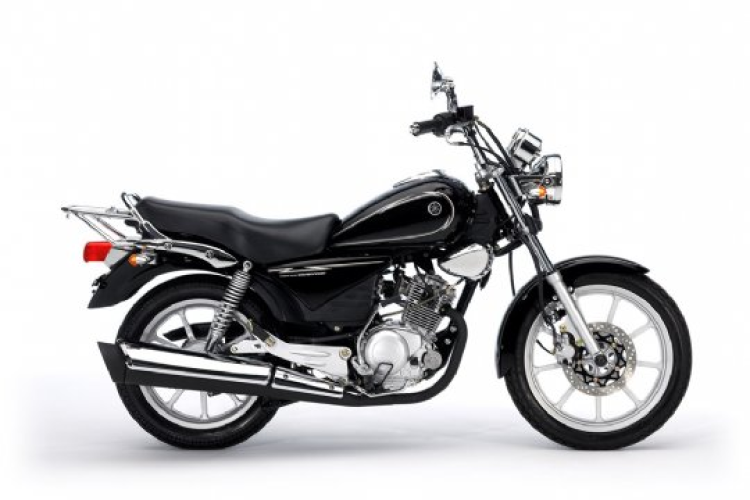

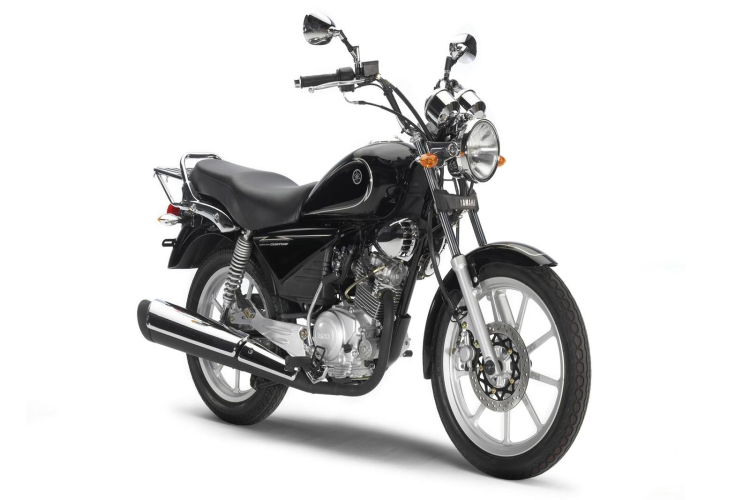

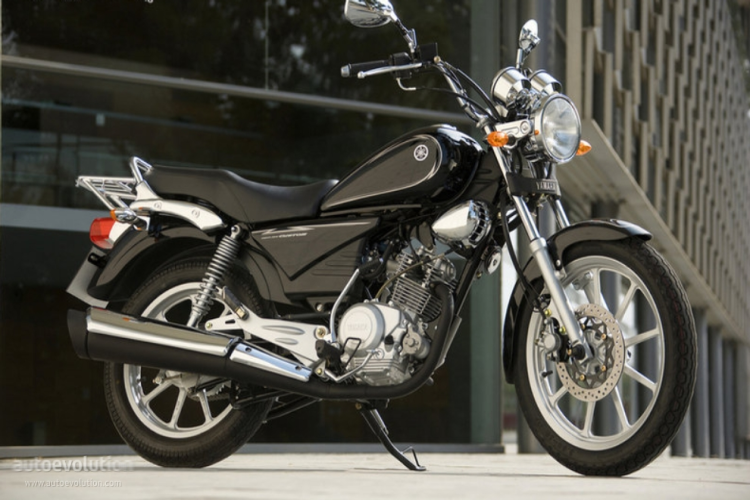

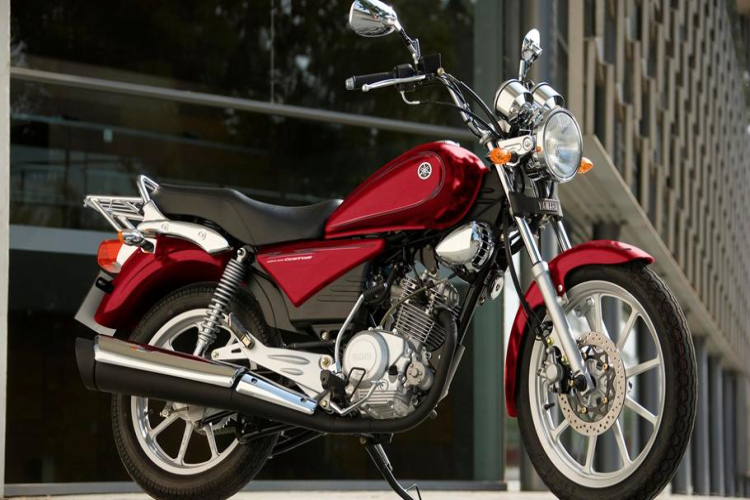

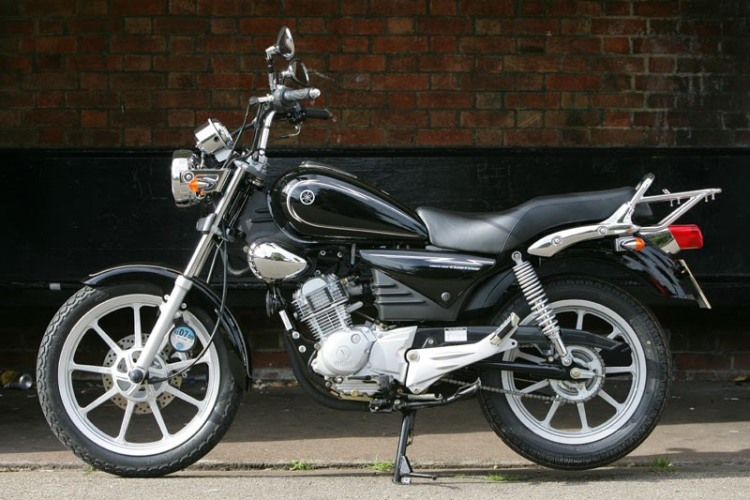

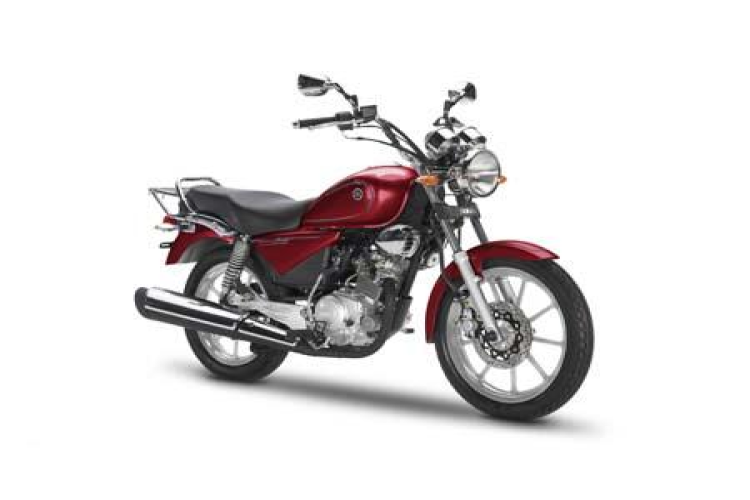

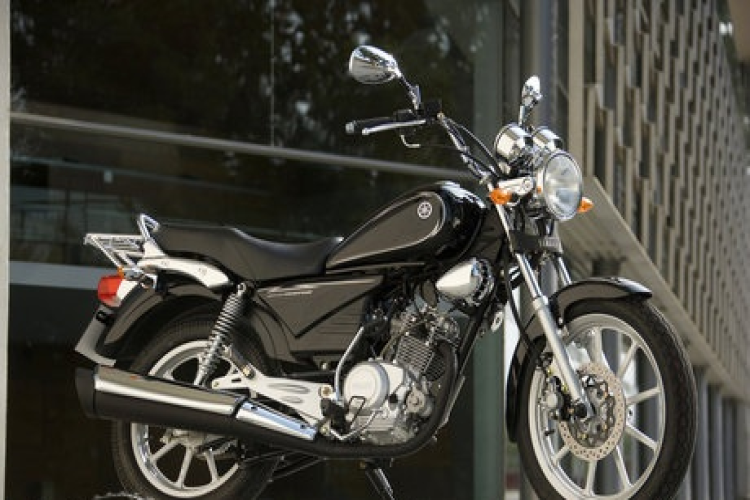

Other Yamaha YBR125 Custom variants
