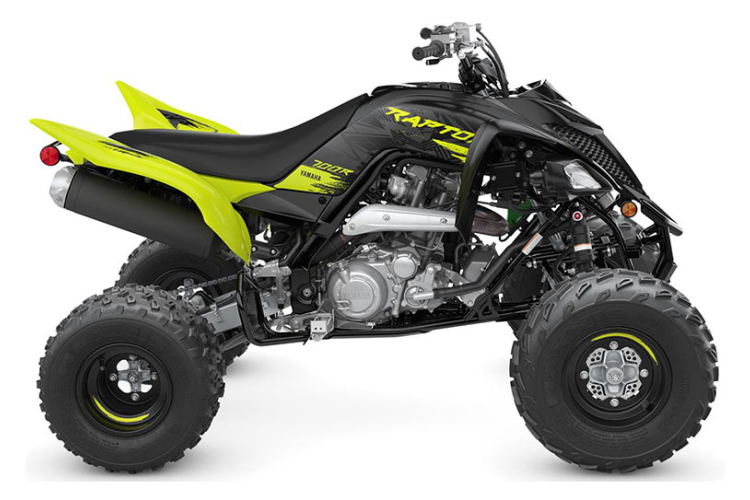

Yamaha YFM 700R SE 2022 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 686.0 ccm (41.86 cubic inches) |
| Engine Type | Single cylinder, four-stroke |
| Compression | 9.2:1 |
| Bore X Stroke | 102.0 x 84.0 mm (4.0 x 3.3 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Yamaha Fuel Injection (YFI), 44mm |
| Ignition | TCI |
| Lubrication System | Dry sump |
| Cooling System | Liquid |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Chain (final drive) |
| Driveline | X-ring chain; 2WD |
| Front Brakes | Double disc. 2-piston calipers |
| Front Brakes Diameter | 161 mm (6.3 inches) |
| Front Suspension | KYB Piggy Back with Hi and Low speed compression and single rebound adjustment, Independent double wishbone, threaded preload adjustable spring |
| Front Tyre | 21/7-10 |
| Front Wheel Travel | 230 mm (9.1 inches) |
| Rear Brakes | Single disc |
| Rear Brakes Diameter | 200 mm (7.9 inches) |
| Rear Suspension | KYB Piggy Back with Hi and Low speed compression and single rebound adjustment, threaded preload adjustable spring, Cast aluminium swingarm |
| Rear Tyre | 20/10-9 |
| Rear Wheel Travel | 256 mm (10.1 inches) |
| Wheels | Maxxis tires. |
| Fuel Capacity | 11.00 litres (2.91 US gallons) |
| Ground Clearance | 113 mm (4.4 inches) |
| Overall Height | 1130 mm (44.5 inches) |
| Overall Length | 1845 mm (72.6 inches) |
| Overall Width | 1170 mm (46.1 inches) |
| Seat Height | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 192.0 kg (423.3 pounds) |
| Color Options | Yamaha Black/Yellow, Racing Blue |
| Comments | SE features: Painted Body, Piggy back 3 way adjustable shock specs, wheel trim |
| Factory Warranty | 6 month limited warranty |
| Starter | Electric |
