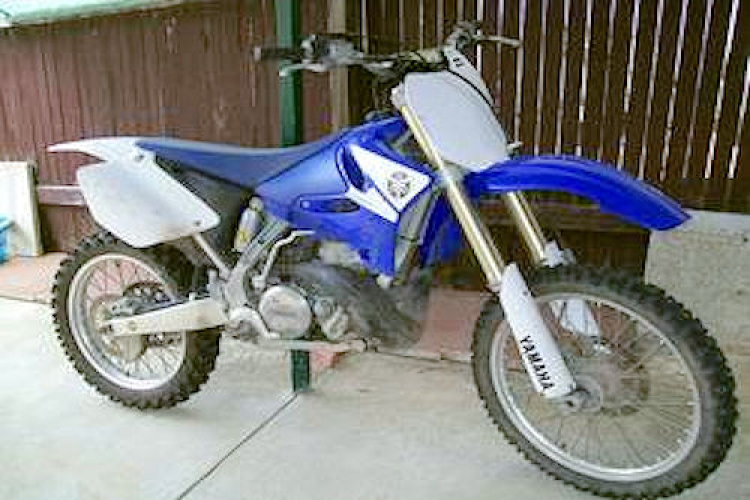

Yamaha YZ 250 2005 specs

Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.

Displacement 249.00 ccm (15.19 cubic inches)
Engine Details Single cylinder, two-stroke
Compression 9.2:1
Bore X Stroke 66.4 x 72.0 mm (2.6 x 2.8 inches)
Ignition CDI
Cooling System Liquid
Gearbox 5-speed
Transmission Type Final Drive Chain
Fuel System Carburettor. Keihin PWK38S/1
Lubrication System Premix
Clutch Wet, multiple-disc
Valves Per Cylinder 1

Front Brakes Single disc
Front Brakes Diameter 250 mm (9.8 inches)
Front Suspension Telescopic Fork, Coil spring/oil damper, 11.8ยด
Front Tyre 80/80-M21
Rear Brakes Single disc
Rear Brakes Diameter 245 mm (9.6 inches)
Rear Suspension Swingarm (link, suspension), coil spring/gas-oil damper, 12.4ยด
Rear Tyre 110/90-M19
Front Wheel Travel 300 mm (11.8 inches)
Rear Wheel Travel 125 mm (4.9 inches)

Dry Weight 96.0 kg (211.6 pounds)
Fuel Capacity 7.94 litres (2.10 gallons)
Ground Clearance 381 mm (15.0 inches)
Overall Height 1,306 mm (51.4 inches)
Overall Length 2,177 mm (85.7 inches)
Overall Width 828 mm (32.6 inches)
Seat Height 993 mm (39.1 inches) If adjustable, lowest setting.

Starter Kick
Color Options Team Yamaha Blue/White

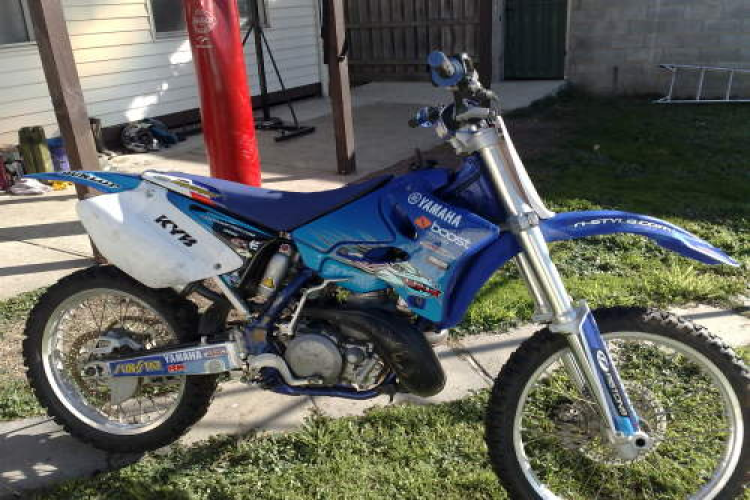

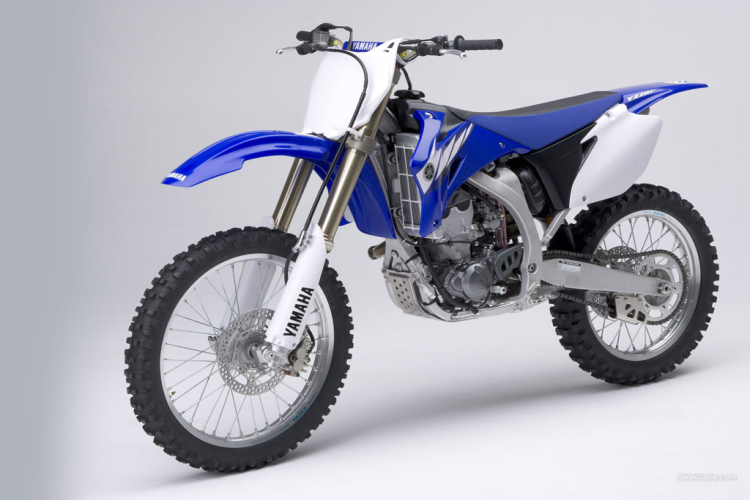

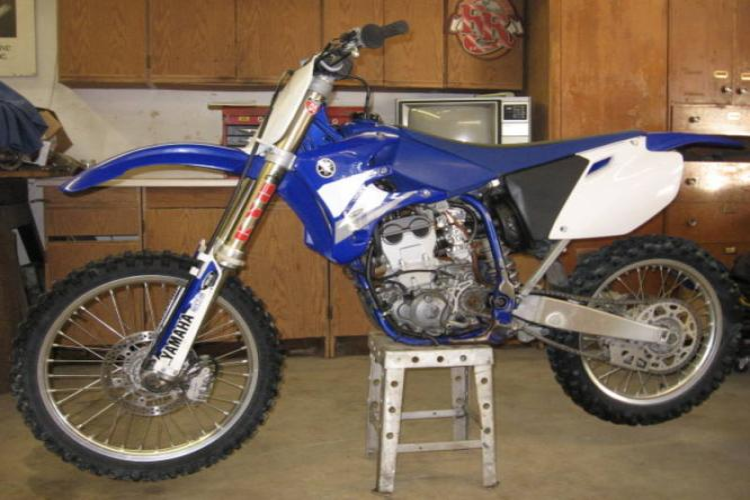

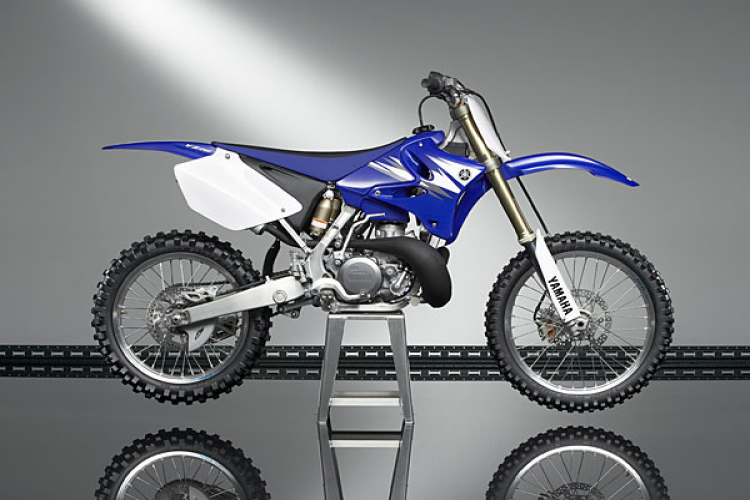

Other Yamaha YZ 250 variants
