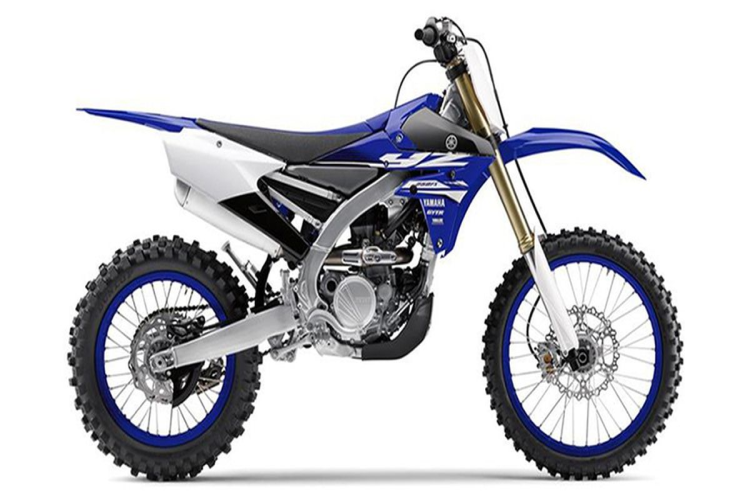

Yamaha YZ250FX 2018 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 250.00 ccm (15.26 cubic inches) |
| Engine Type | Titanium valves |
| Engine Details | Single cylinder, four-stroke |
| Compression | 13.8:1 |
| Bore X Stroke | 77.0 x 53.6 mm (3.0 x 2.1 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Keihin® 44mm |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Multiplate wet clutch |
| Driveline | O-ring chain |
| Rear Brakes | Single disc. Hydraulic. |
| Rear Suspension | KYB® single shock; full adjustable |
| Rear Tyre | 110/100-18 |
| Rear Wheel Travel | 318 mm (12.5 inches) |
| Trail | 117 mm (4.6 inches) |
| Wheels | Dunlop® MX3S® tyres |
| Frame Type | Bilateral beam frame |
| Front Brakes | Single disc. Hydraulic. |
| Front Brakes Diameter | 270 mm (10.6 inches) |
| Front Suspension | KYB® spring-type fork with speed sensitive damping; fully adjustable |
| Front Tyre | 80/90-21 |
| Front Wheel Travel | 310 mm (12.2 inches) |
| Rake | 27.2° |
| Rear Brakes Diameter | 245 mm (9.6 inches) |
| Fuel Capacity | 8.33 litres (2.20 gallons) |
| Ground Clearance | 320 mm (12.6 inches) |
| Oil Capacity | 1.50 litres (1.59 US quarts) |
| Overall Height | 1270 mm (50.0 inches) |
| Overall Length | 2174 mm (85.6 inches) |
| Overall Width | 826 mm (32.5 inches) |
| Seat Height | 955 mm (37.6 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 111.1 kg (245.0 pounds) |
| Factory Warranty | 30 Day Limited Factory Warranty |
| Starter | Electric |
| Color Options | Team Yamaha Blue |
| Comments | Power Tuner app |
| Modifications Compared To Previous Model | From fender to fender, the YZ250FX is all-new. New engine, improved electronics, new frame, revised suspension, a thinner and lower body, and more—this machine is ready to put riders on top of the podium. |

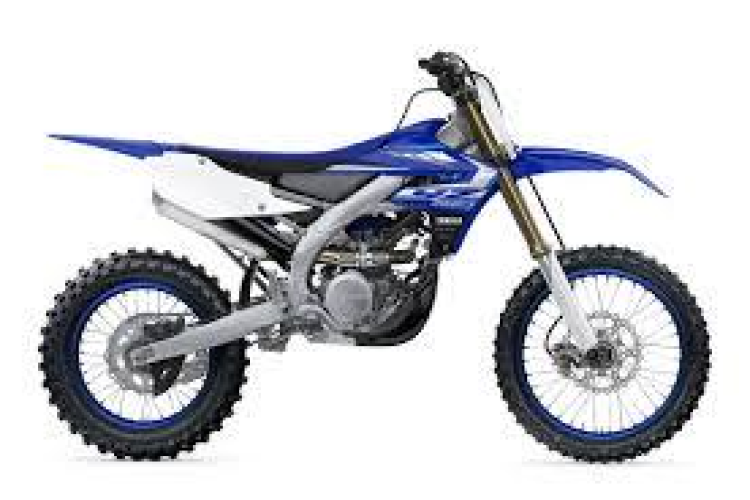

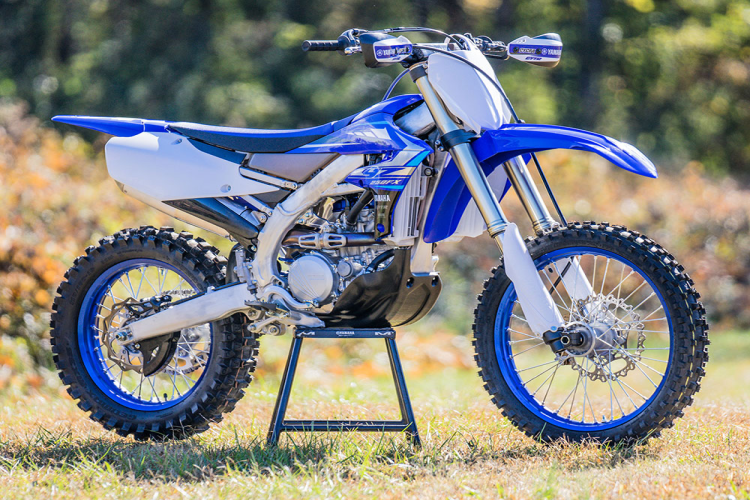

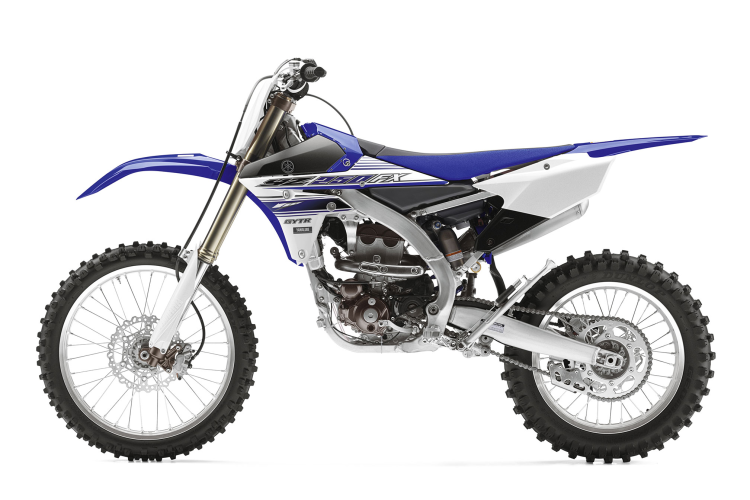

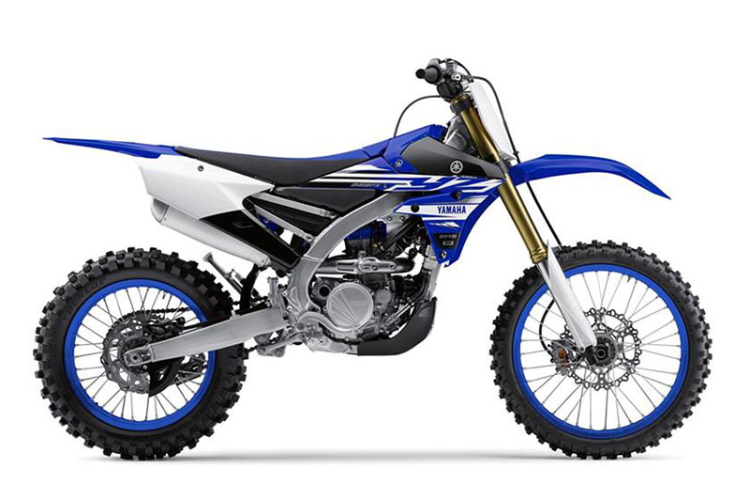

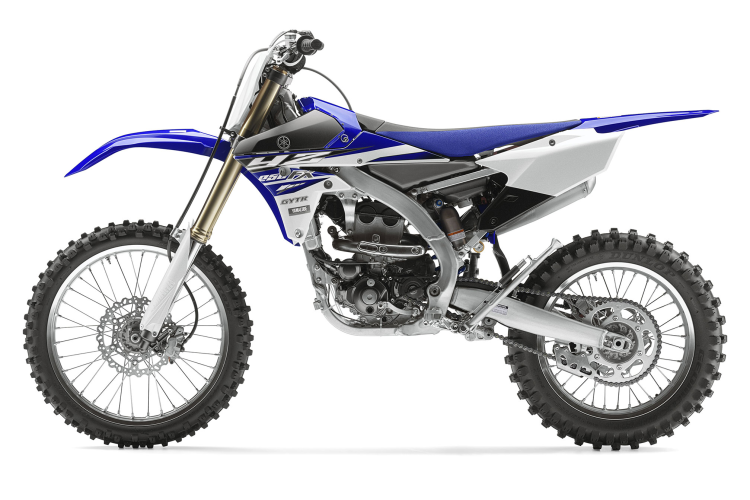

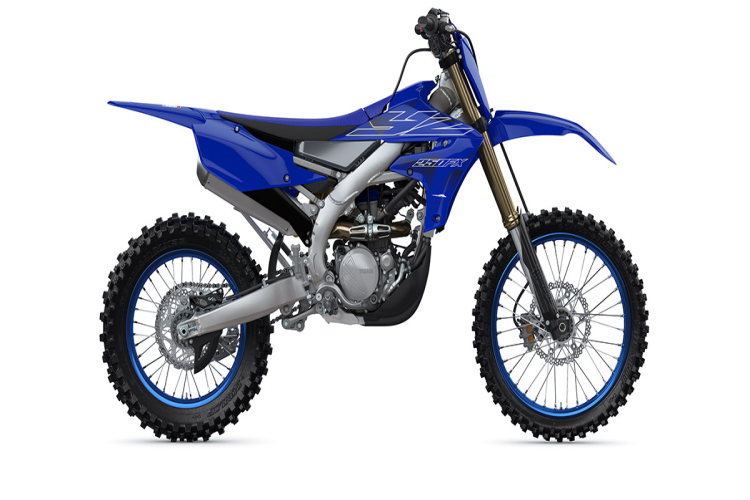

Other Yamaha YZ250FX variants
