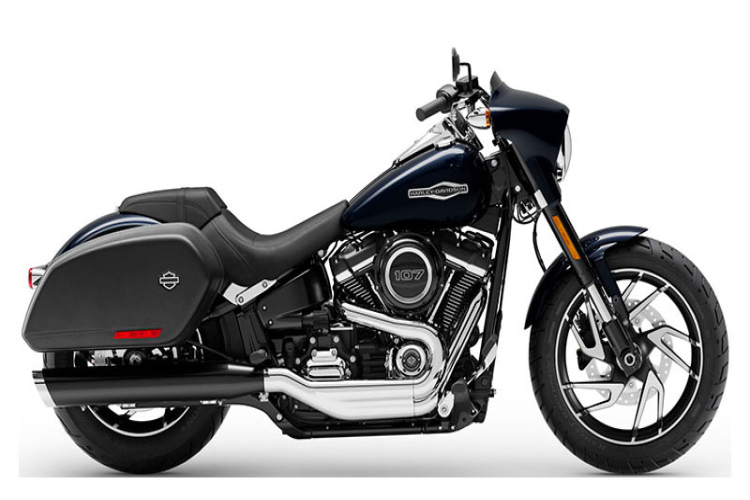

Harley-Davidson Sport Glide 2020 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1746.00 ccm (106.54 cubic inches) |
| Engine Type | Milwaukee-Eight® 107 |
| Engine Details | V2, four-stroke |
| Power | 86.00 HP (62.8 kW)) @ 5020 RPM |
| Torque | 145.00 Nm (14.8 kgf-m or 107.0 ft.lbs) @ 3000 RPM |
| Compression | 10.0:1 |
| Bore X Stroke | 100.0 x 111.1 mm (3.9 x 4.4 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection |
| Cooling System | Air |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Primary chain, 34/46 ratio |
| Fuel Consumption | 5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
| Greenhouse Gases | 116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | 2-into-1; catalyst in muffler |
| Front Brakes | Double disc. 4-piston. ABS. |
| Front Suspension | Telescopic fork |
| Front Tyre | 130/70-B18 |
| Rake | 30.0° |
| Rear Brakes | Single disc. 2-piston. ABS. |
| Rear Suspension | Twin shocks |
| Rear Tyre | 180/70-B16 |
| Trail | 150 mm (5.9 inches) |
| Wheels | Black, machine highlighted, Mantis cast aluminium |
| Alternate Seat Height | 673 mm (26.5 inches) If adjustable, highest setting. |
| Dry Weight | 304.0 kg (670.2 pounds) |
| Fuel Capacity | 18.93 litres (5.00 gallons) |
| Ground Clearance | 120 mm (4.7 inches) |
| Oil Capacity | 4.70 litres (0.31 quarts) |
| Overall Length | 2,324 mm (91.5 inches) |
| Power Weight Ratio | 0.2829 HP/kg |
| Seat Height | 653 mm (25.7 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 317.0 kg (698.9 pounds) |
| Color Options | Vivid Black, Midnight Blue, River Rock Grey Denim, Performance Orange, Tahitian Teal, Scorched Orange/Silver Flux |
| Light | High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings |
| Starter | Electric |
| Carrying Capacity | Saddle bags |
| Instruments | 5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication |
