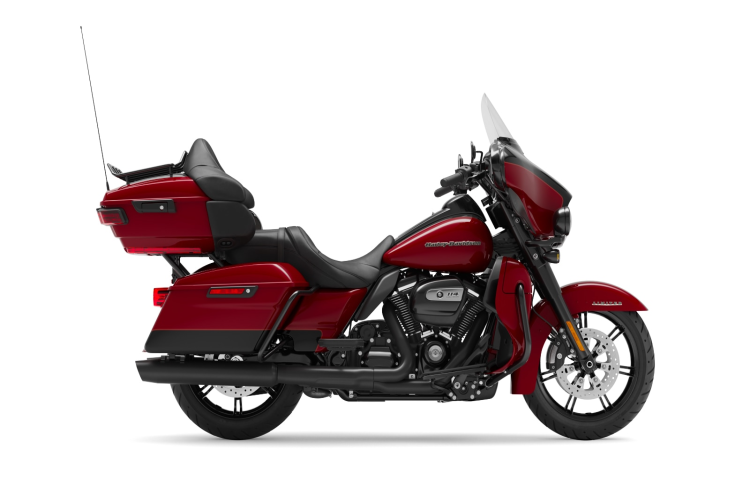

Harley-Davidson Ultra Limited 2021 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Power | 100.0 HP (73.0 kW)) @ 5000 RPM |
| Torque | 165.4 Nm (16.9 kgf-m or 122.0 ft.lbs) @ 3000 RPM |
| Compression | 10.5:1 |
| Bore X Stroke | 102.0 x 114.0 mm (4.0 x 4.5 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication System | Dry sump |
| Cooling System | Oil & air |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Belt (final drive) |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Chain, 34/46 ratio primary drive |
| Fuel Consumption | 5.47 litres/100 km (18.3 km/l or 43.00 mpg) |
| Greenhouse Gases | 126.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | 2-1-2 dual exhaust with tapered mufflers |
| Displacement | 1868.00 ccm (113.99 cubic inches) |
| Engine Type | Twin-Cooled™ Milwaukee-Eight® 114 |
| Engine Details | V2, four-stroke |
| Rear Tyre | 180/55-B18 |
| Trail | 170 mm (6.7 inches) |
| Wheels | Slicer II cast aluminum with clear coat |
| Front Brakes | Double disc. ABS. 4-piston |
| Front Suspension | Telescopic fork, 49mm dual bending valve |
| Front Tyre | 130/70-B18 |
| Rake | 26.0° |
| Rear Brakes | Single disc. ABS. 4-piston |
| Rear Suspension | Twin shocks, premium low hand-adjustable |
| Dry Weight | 398.0 kg (877.4 pounds) |
| Fuel Capacity | 22.71 litres (6.00 gallons) |
| Ground Clearance | 135 mm (5.3 inches) |
| Oil Capacity | 4.70 litres (0.31 quarts) |
| Overall Length | 2,600 mm (102.4 inches) |
| Power Weight Ratio | 0.2513 HP/kg |
| Seat Height | 699 mm (27.5 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 413.0 kg (910.5 pounds) |
| Carrying Capacity | Saddle bags, top box |
| Color Options | Vivid Black, Barracuda Silver, River Rock Gray/Vivid Black, Midnight Blue/Barracuda Silver, Silver Pine/Spruce, Stiletto Red, Tahitian Teal, Vivid Black (with Black Finish), River Rock Gray (with Black Finish), Barracuda Silver Denim/Black Denim (with Bla |
| Comments | Windshield. Infotainment. USB. Bluetooth. |
| Instruments | Large speedometer and tachometer with wide numbers; large fuel and volt gauges with wide numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators |
| Light | High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS |
| Starter | Electric |
