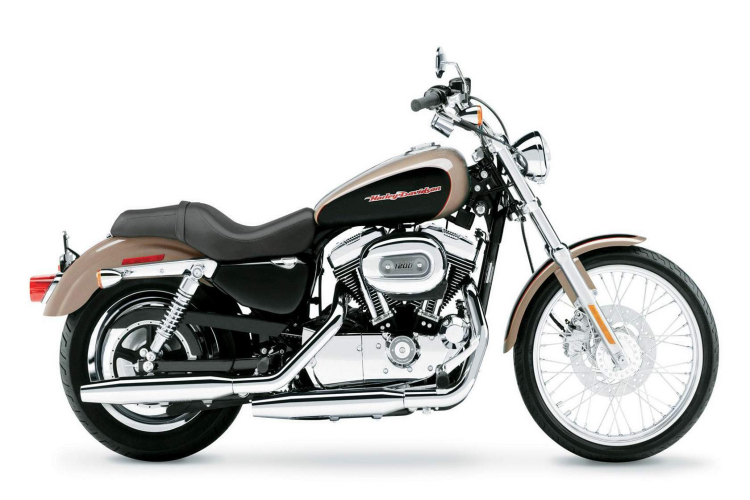

Harley-Davidson XL 1200 C Sportster Custom 2005 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1199.00 ccm (73.16 cubic inches) |
| Engine Details | V2, four-stroke |
| Torque | 69.00 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4200 RPM |
| Bore X Stroke | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Valves Per Cylinder | 2 |
| Fuel System | Carburettor |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate clutch with diaphragm spring in oil bath. |
| Exhaust System | Staggered shorty duals |
| Compression | 10.0:1 |
| Power | 58.00 HP (42.3 kW)) @ 5200 RPM |
| Top Speed | 175.0 km/h (108.7 mph) |
| Front Brakes | Single disc |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Tyre | MH90-21 |
| Rake | 30.1° |
| Rear Brakes | Single disc |
| Rear Brakes Diameter | 292 mm (11.5 inches) |
| Rear Tyre | 150/80-16 |
| Trail | 119 mm (4.7 inches) |
| Dry Weight | 255.0 kg (562.2 pounds) |
| Fuel Capacity | 17.40 litres (4.60 gallons) |
| Ground Clearance | 112 mm (4.4 inches) |
| Overall Length | 2,275 mm (89.6 inches) |
| Seat Height | 673 mm (26.5 inches) If adjustable, lowest setting. |
| Reserve Fuel Capacity | 17.00 litres (4.49 gallons) |
| Power Weight Ratio | 0.2367 HP/kg |
| Color Options | Vivid black, brilliant silver pearl, sierra red pearl, black cherry pearl, glacier white pearl, rich sunglo blue, yellow pearl, two-tone rich sunglo blue and chopper blue pearl, two-tone chopper blue pearl and brilliant silver pearl, two-tone sierra red p |
| Comments | Black powder-coated engine with chrome covers; 17-liter fuel tank; laced front wheel, slotted chrome disc rear wheel; forward foot controls; chrome pull-back riser; chrome bullet headlight; high compression, high flow cylinder heads; performance cams |
