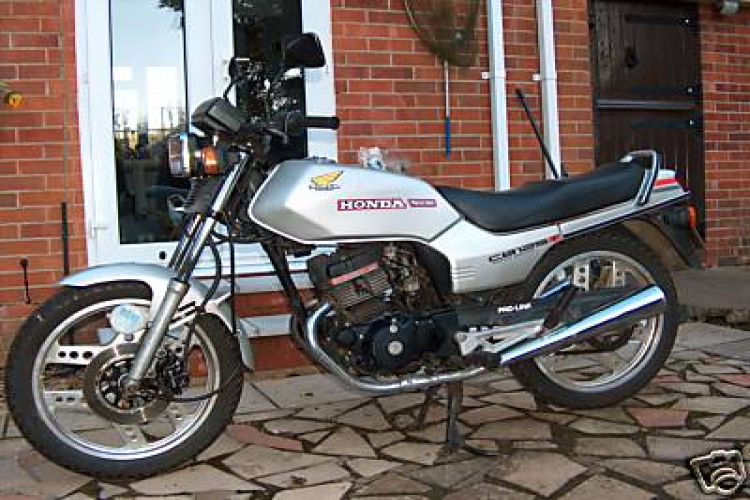

Honda CB 125 TD-C 1983 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 124.00 ccm (7.57 cubic inches) |
| Engine Details | Twin, four-stroke |
| Power | 15.00 HP (10.9 kW)) @ 11000 RPM |
| Torque | 10.00 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 8500 RPM |
| Top Speed | 113.0 km/h (70.2 mph) |
| Max Rpm | 13000 |
| Compression | 9.4:1 |
| Bore X Stroke | 44.0 x 41.0 mm (1.7 x 1.6 inches) |
| Valves Per Cylinder | 2 |
| Fuel System | Carburettor. Keihin |
| Ignition | CDI (Capacitor Discharge Ignition) |
| Lubrication System | Wet sump, force fed |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Wet ,multiplate |
| Fuel Consumption | 2.35 litres/100 km (42.6 km/l or 100.09 mpg) |
| Greenhouse Gases | 54.5 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Double stainless steel pipes |
| Frame Type | Open diamond, engine used as stressed member |
| Front Brakes | Single disc. Disk, hydraulic (two pot) |
| Front Suspension | Oil damped telescopic |
| Front Wheel Travel | 140 mm (5.5 inches) |
| Rear Brakes | Expanding brake (drum brake). Expanding brake (Drum brake) |
| Rear Suspension | Pivoted fork, ´Pro-Link´ rising rate suspension system |
| Rear Wheel Travel | 95 mm (3.7 inches) |
| Alternate Seat Height | 775 mm (30.5 inches) If adjustable, highest setting. |
| Dry Weight | 124.0 kg (273.4 pounds) |
| Fuel Capacity | 14.00 litres (3.70 gallons) |
| Ground Clearance | 180 mm (7.1 inches) |
| Overall Height | 1,070 mm (42.1 inches) |
| Overall Length | 2,060 mm (81.1 inches) |
| Overall Width | 730 mm (28.7 inches) |
| Power Weight Ratio | 0.1210 HP/kg |
| Reserve Fuel Capacity | 1.50 litres (0.40 gallons) |
| Seat Height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Color Options | Pretty much any colour |
| Starter | Electric |
