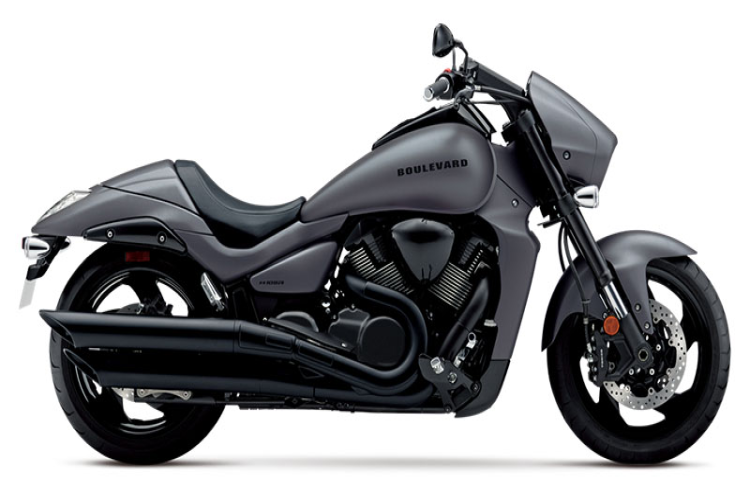

Suzuki Boulevard M109R 2017 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1783.00 ccm (108.80 cubic inches) |
| Engine Type | 54° V-twin |
| Engine Details | V2, four-stroke |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Suzuki Fuel Injection |
| Ignition | Electronic ignition (Transistorized) |
| Cooling System | Liquid |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Shaft drive (cardan) |
| Exhaust System | 2-into-1-into-2 stainless steel chromed |
| Compression | 10.5:1 |
| Bore X Stroke | 112.0 x 90.5 mm (4.4 x 3.6 inches) |
| Lubrication System | Semi-dry sump |
| Power | 125.00 HP (91.2 kW)) @ 6200 RPM |
| Torque | 160.00 Nm (16.3 kgf-m or 118.0 ft.lbs) @ 3200 RPM |
| Driveline | Constant mesh |
| Clutch | Wet multi-plate |
| Front Suspension | Telescopic, coil spring, oil damped |
| Front Tyre | 150/80-R16 |
| Front Wheel Travel | 130 mm (5.1 inches) |
| Rear Brakes | Single disc |
| Rear Suspension | Link type, coil spring, oil damped |
| Rear Tyre | 240/55-R16 |
| Frame Type | A high-tensile double cradle steel frame is built to comfortably handle all the power and torque while delivering agile handling and a plush smooth ride. |
| Front Brakes | Double disc |
| Front Brakes Diameter | 310 mm (12.2 inches) |
| Rear Brakes Diameter | 275 mm (10.8 inches) |
| Rear Wheel Travel | 120 mm (4.7 inches) |
| Fuel Capacity | 19.50 litres (5.15 gallons) |
| Ground Clearance | 130 mm (5.1 inches) |
| Overall Length | 2,450 mm (96.5 inches) |
| Overall Width | 875 mm (34.4 inches) |
| Seat Height | 705 mm (27.8 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 347.0 kg (765.0 pounds) |
| Overall Height | 1,185 mm (46.7 inches) |
| Dry Weight | 319.0 kg (703.3 pounds) |
| Color Options | Glass Sparkle Black |
| Factory Warranty | 12 month unlimited mileage limited |
| Starter | Electric |
| Comments | Model id: VZR1800L8. |
| Instruments | Tank-mounted analog speedometer and LCD odometer, dual tripmeters, fuel gauge and clock. |

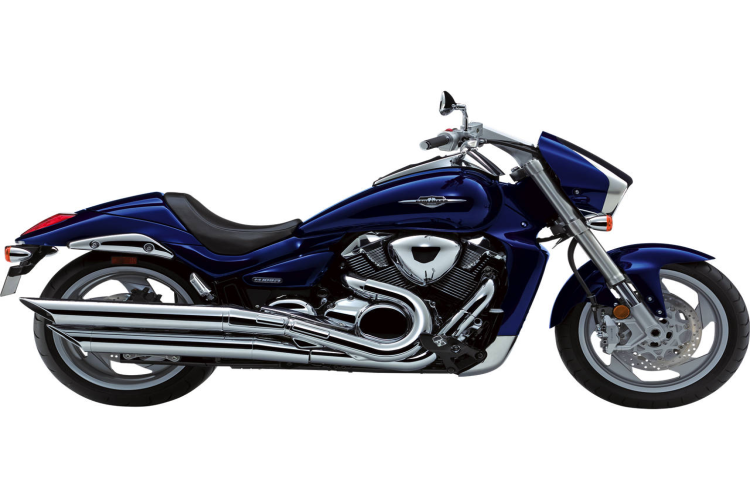

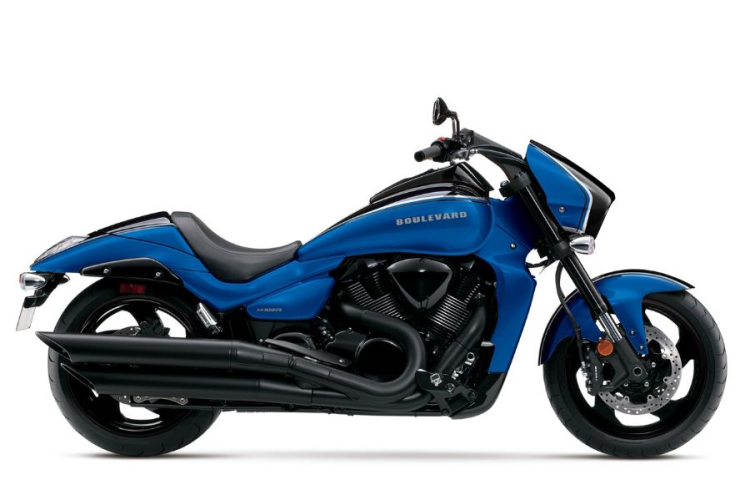

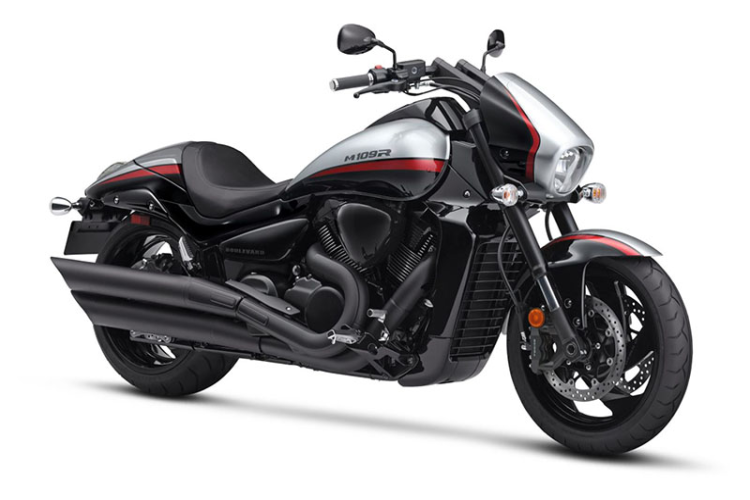

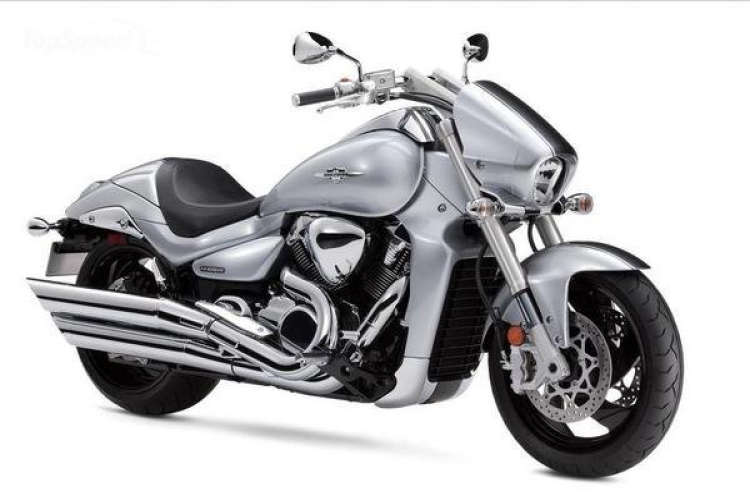

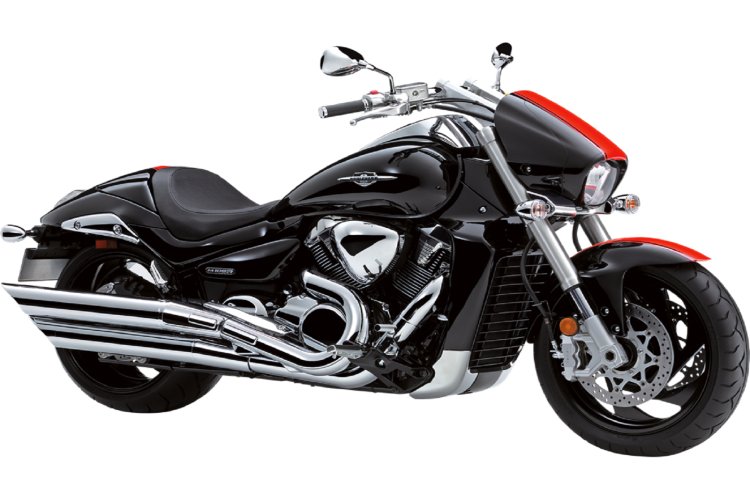

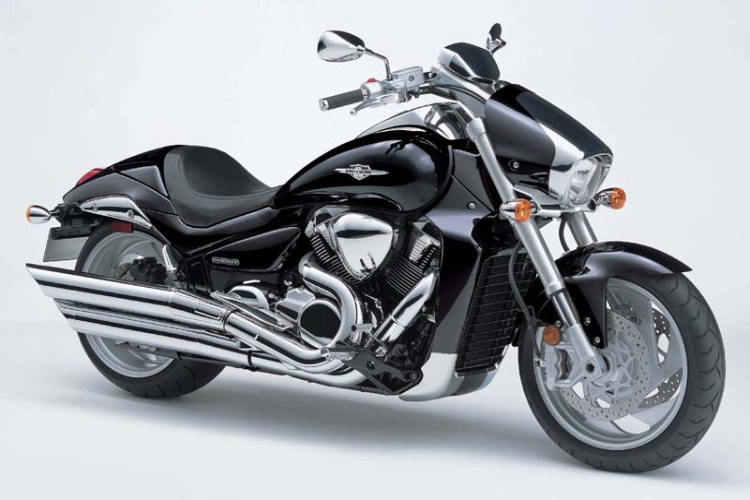

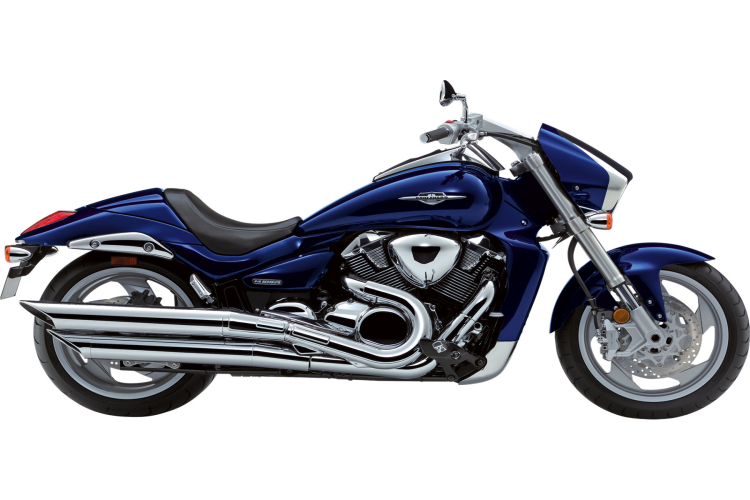

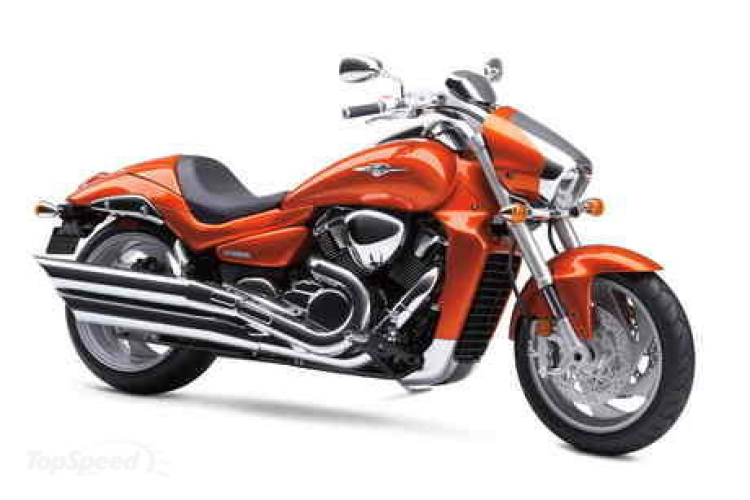

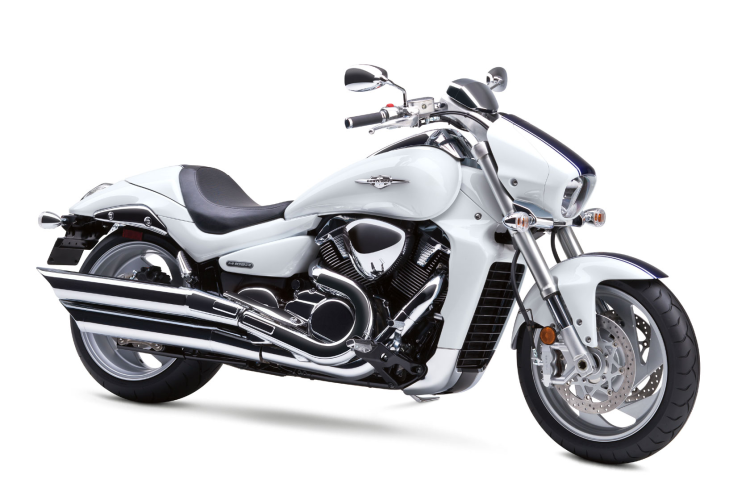

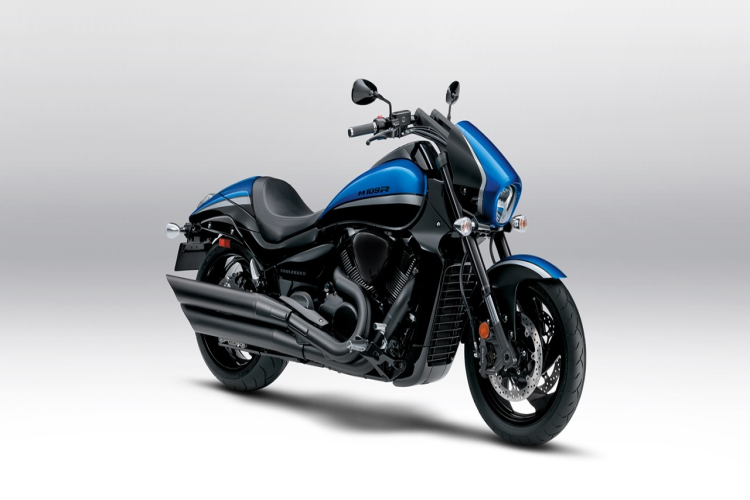

Other Suzuki Boulevard M109R variants
