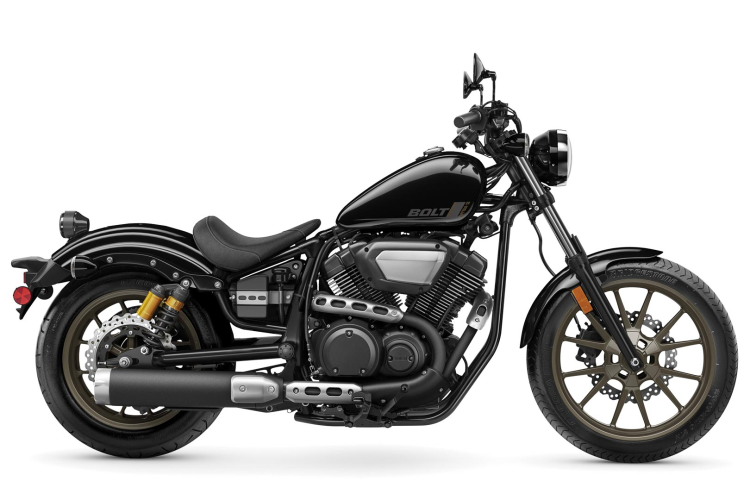

Yamaha Bolt R-Spec 2021 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 942.0 ccm (57.48 cubic inches) |
| Engine Type | V2, four-stroke |
| Torque | 80.4 Nm (8.2 kgf-m or 59.3 ft.lbs) @ 3000 RPM |
| Compression | 9.0:1 |
| Bore X Stroke | 85.0 x 83.0 mm (3.3 x 3.3 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection |
| Ignition | Transistor Controlled Ignition |
| Lubrication System | Wet sump |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt (final drive) |
| Clutch | Multiplate wet clutch |
| Fuel Consumption | 4.61 litres/100 km (21.7 km/l or 51.02 mpg) |
| Greenhouse Gases | 107.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | 2-into-1 exhaust pipe |
| Engine Details | V2, four-stroke |
| Frame Type | Aluminum double-cradle |
| Front Brakes | Single disc. Wave-type disc |
| Front Brakes Diameter | 298 mm (11.7 inches) |
| Front Suspension | Telescopic fork 41mm |
| Front Tyre | 100/90-19 |
| Front Wheel Travel | 120 mm (4.7 inches) |
| Rake | 29.0° |
| Rear Brakes | Single disc. Wave-type disc |
| Rear Brakes Diameter | 298 mm (11.7 inches) |
| Rear Suspension | Dual piggyback shocks |
| Rear Tyre | 150/80-16 |
| Rear Wheel Travel | 70 mm (2.8 inches) |
| Seat | Solo saddle |
| Trail | 130 mm (5.1 inches) |
| Wheels | 12-spoke cast alloy. Bridgestone® EXEDRA G721 tires |
| Fuel Capacity | 12.11 litres (3.20 gallons) |
| Ground Clearance | 130 mm (5.1 inches) |
| Overall Height | 1120 mm (44.1 inches) |
| Overall Length | 2290 mm (90.2 inches) |
| Overall Width | 945 mm (37.2 inches) |
| Seat Height | 690 mm (27.2 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 248.0 kg (546.7 pounds) |
| Color Options | Raven |
| Factory Warranty | 1 Year Limited Factory Warranty |

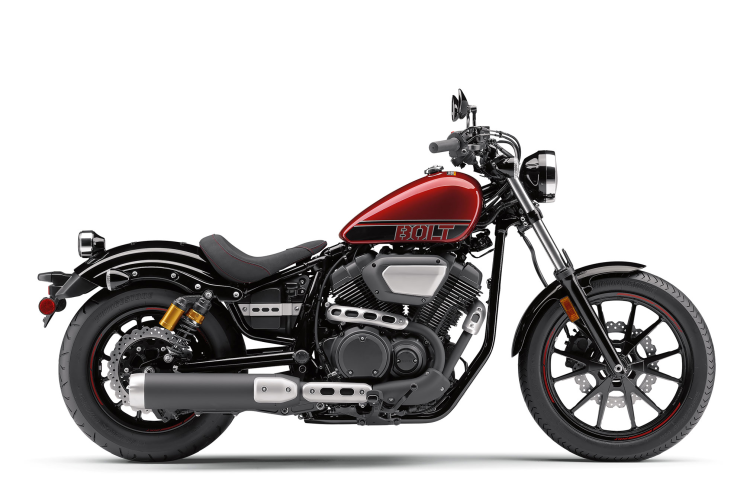

| Comments | Model also called 2017 Star Bolt R-Spec. |
| Instruments | Digital LCD |
| Starter | Electric |
