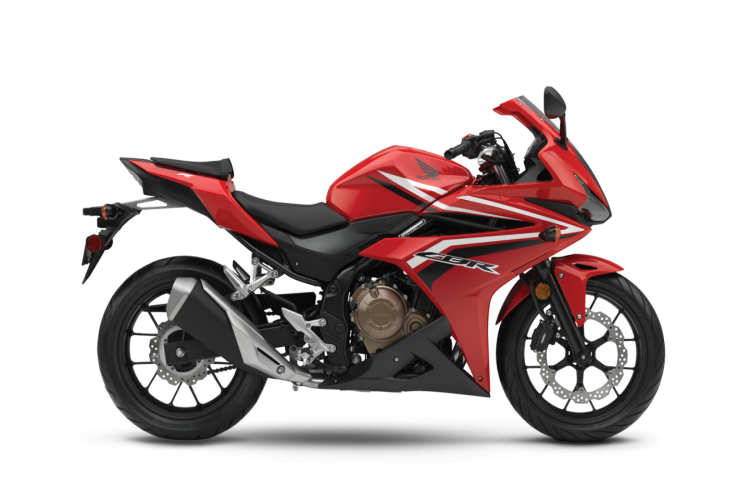

Atlas Honda CBR500 2015 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 500.00 ccm (30.51 cubic inches) |
| Engine Details | In-line four, four-stroke |
| Compression | 10.7:1 |
| Bore X Stroke | 67.0 x 66.8 mm (2.6 x 2.6 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. PGM-FI with 34mm throttle bodies |
| Ignition | Computer-controlled digital transistorized with electronic advance |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain |
| Driveline | O-ring-sealed chain |
| Rear Tyre | 160/60-17 |
| Rear Wheel Travel | 104 mm (4.1 inches) |
| Trail | 103 mm (4.1 inches) |
| Front Brakes | Double disc. Wave disc. Two-piston calipers. |
| Front Brakes Diameter | 320 mm (12.6 inches) |
| Front Suspension | 41mm fork |
| Front Tyre | 120/70-17 |
| Front Wheel Travel | 122 mm (4.8 inches) |
| Rake | 25.5° |
| Rear Brakes | Single disc. Wave disc. Single-piston caliper. |
| Rear Brakes Diameter | 240 mm (9.4 inches) |
| Rear Suspension | Pro-Link single shock with nine-position spring preload adjustability |
| Fuel Capacity | 15.52 litres (4.10 gallons) |
| Reserve Fuel Capacity | 2.00 litres (0.53 gallons) |
| Seat Height | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 194.0 kg (427.7 pounds) |
| Color Options | Black, White/Blue/Red, Red |
| Comments | Sold in Pakistan. |
| Starter | Electric |
