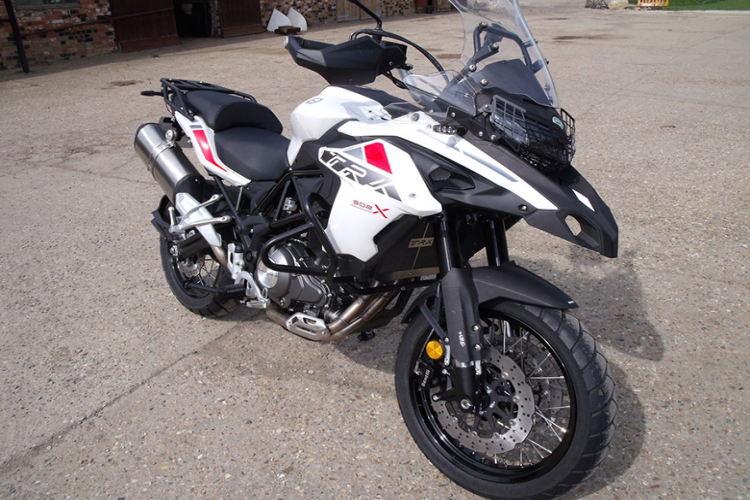

Benelli TRK 502 X ABS 2019 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 500.00 ccm (30.51 cubic inches) |
| Engine Details | Twin, four-stroke |
| Power | 47.60 HP (34.7 kW)) @ 8500 RPM |
| Torque | 45.00 Nm (4.6 kgf-m or 33.2 ft.lbs) @ 5000 RPM |
| Compression | 11.5:1 |
| Bore X Stroke | 69.0 x 66.8 mm (2.7 x 2.6 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection |
| Ignition | TLI |
| Lubrication System | Forced with wet sump |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Wet |
| Fuel Consumption | 3.90 litres/100 km (25.6 km/l or 60.31 mpg) |
| Greenhouse Gases | 90.5 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Emission Details | Euro 4. Catalytic converter and oxygen sensors. |
| Rear Brakes | Single disc. Single piston calliper, ABS |
| Rear Brakes Diameter | 260 mm (10.2 inches) |
| Rear Suspension | Rear swing arm with central shock absorber spring preload adjustable |
| Rear Tyre | 150/70-R17 |
| Rear Wheel Travel | 50 mm (2.0 inches) |
| Wheels | Aluminum alloy (optional aluminium rim spoked ) |
| Frame Type | Trestle in steel tubes |
| Front Brakes | Double disc. 4-piston, ABS |
| Front Brakes Diameter | 320 mm (12.6 inches) |
| Front Suspension | Upside-down forks 50mm |
| Front Tyre | 110/80-R19 |
| Front Wheel Travel | 145 mm (5.7 inches) |
| Alternate Seat Height | 825 mm (32.5 inches) If adjustable, highest setting. |
| Dry Weight | 213.0 kg (469.6 pounds) |
| Fuel Capacity | 20.00 litres (5.28 gallons) |
| Ground Clearance | 220 mm (8.7 inches) |
| Overall Height | 1,480 mm (58.3 inches) |
| Overall Length | 2,220 mm (87.4 inches) |
| Overall Width | 915 mm (36.0 inches) |
| Power Weight Ratio | 0.2235 HP/kg |
| Reserve Fuel Capacity | 3.00 litres (0.79 gallons) |
| Seat Height | 840 mm (33.1 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 235.0 kg (518.1 pounds) |
| Color Options | Red, white, black |
| Starter | Electric |
