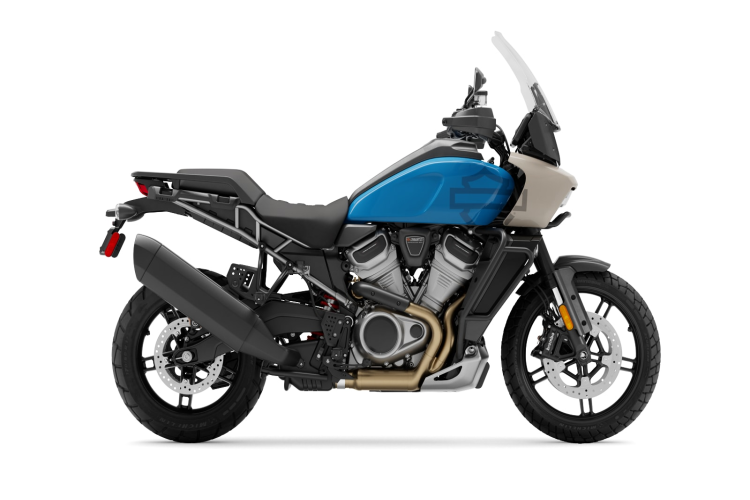

Harley-Davidson Pan America 1250 Special 2022 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1250.4 ccm (76.30 cubic inches) |
| Engine Type | V2, four-stroke |
| Engine Details | Revolution® Max 1250 engine. Variable Valve Timing (VVT). |
| Power | 150.0 HP (109.5 kW)) @ 9000 RPM |
| Torque | 127.5 Nm (13.0 kgf-m or 94.0 ft.lbs) @ 6750 RPM |
| Compression | 13.0:1 |
| Bore X Stroke | 104.9 x 72.4 mm (4.1 x 2.9 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection |
| Lubrication System | Dry sump |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain (final drive) |
| Fuel Consumption | 5.11 litres/100 km (19.6 km/l or 46.03 mpg) |
| Greenhouse Gases | 118.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | 2-into-1-into-1; catalyst in header |
| Front Brakes | Double disc. Radially mounted, monoblock, 4-piston caliper. ABS. |
| Front Suspension | 47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps. |
| Front Tyre | 120/70-R19 |
| Front Wheel Travel | 190 mm (7.5 inches) |
| Rake | 25.0° |
| Rear Brakes | Single disc. Floating, single piston caliper. ABS. |
| Rear Suspension | Linkage-mounted monoshock with automatic electronic preload control and semi-active compression and rebound damping |
| Rear Tyre | 170/60-R17 |
| Seat | Two-up seat. |
| Trail | 109 mm (4.3 inches) |
| Wheels | Aluminum cast, satin black. Michelin® Scorcher® “Adventure”, Radial tires. |
| Dry Weight | 242.2 kg (534.0 pounds) |
| Fuel Capacity | 21.20 litres (5.60 US gallons) |
| Ground Clearance | 175 mm (6.9 inches) |
| Oil Capacity | 4.50 litres (4.76 US quarts) |
| Overall Length | 2271 mm (89.4 inches) |
| Power Weight Ratio | 0.6193 HP/kg |
| Seat Height | 813 mm (32.0 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 258.1 kg (569.0 pounds) |
| Color Options | Vivid Black, Gauntlet Gry Metallic, Fastback Blue/White Sand, |
| Comments | Windscreen, optional adaptive ride height, cruise control, six-axis IMU, customizable ride modes, USB-C, Bluetooth connectivity and moving map navigation. |
| Instruments | 6.8 inch TFT color display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer |
| Light | Daymaker Signature Adaptive Headlamp |
| Starter | Electric |
