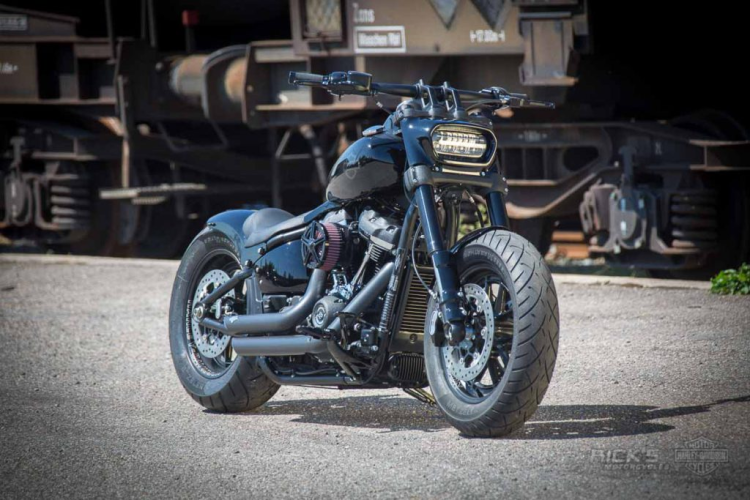

Harley-Davidson Softail Fat Bob Dark Custom 2018 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1690.00 ccm (103.12 cubic inches) |
| Engine Type | Twin Cam 103™ |
| Engine Details | V2, four-stroke |
| Power | 80.00 HP (58.4 kW)) @ 5020 RPM |
| Torque | 135.00 Nm (13.8 kgf-m or 99.6 ft.lbs) @ 3750 RPM |
| Compression | 9.6:1 |
| Bore X Stroke | 98.4 x 111.1 mm (3.9 x 4.4 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection |
| Cooling System | Air |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Primary chain, 34/46 ratio |
| Fuel Consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse Gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Chrome, “Tommy Gun” 2-1-2 collector exhaust with dual mufflers |
| Front Brakes | Double disc. ABS. 4-piston. |
| Front Suspension | Telescopic fork |
| Front Tyre | 130/90-B16 |
| Rake | 28.0° |
| Rear Brakes | Single disc. ABS. 2-piston. |
| Rear Suspension | Twin shocks |
| Rear Tyre | 180/70-B16 |
| Trail | 132 mm (5.2 inches) |
| Wheels | Gloss Black Cast Aluminum Wheel w/ Laser Etched Graphics |
| Dry Weight | 305.0 kg (672.4 pounds) |
| Fuel Capacity | 18.90 litres (4.99 gallons) |
| Ground Clearance | 120 mm (4.7 inches) |
| Oil Capacity | 2.80 litres (0.18 quarts) |
| Overall Length | 2,400 mm (94.5 inches) |
| Power Weight Ratio | 0.2623 HP/kg |
| Seat Height | 590 mm (23.2 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 320.0 kg (705.5 pounds) |
| Color Options | Vivid Black, Black Denim, Red Iron Denim, Crushed Ice Denim, Laguna Orange |
| Instruments | Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
| Light | High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings |
| Starter | Electric |
