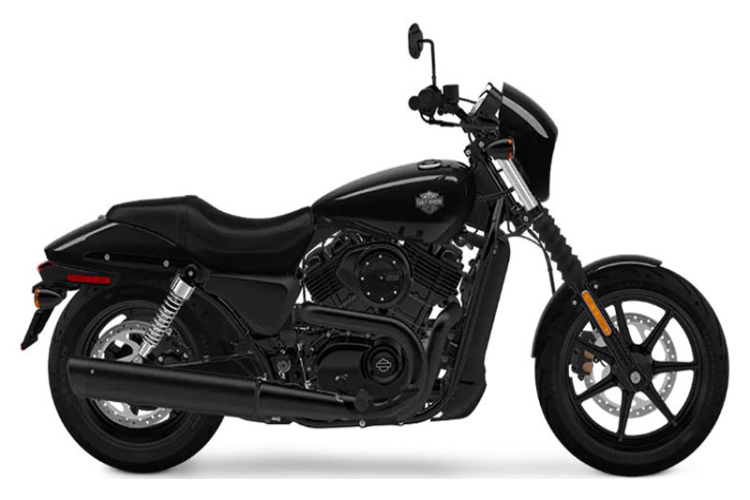

Harley-Davidson Street 500 Dark Custom 2018 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 491.64 ccm (30.00 cubic inches) |
| Engine Type | Liquid-cooled, Revolution X™ V-Twin |
| Engine Details | V2, four-stroke |
| Torque | 40.00 Nm (4.1 kgf-m or 29.5 ft.lbs) @ 3500 RPM |
| Zero To One Hundred | 4.600 seconds |
| Compression | 11.0:1 |
| Bore X Stroke | 69.1 x 66.0 mm (2.7 x 2.6 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Mikuni Single Port Fuel Injection, 35 mm bore. |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Gear, 36/68 ratio primary drive |
| Fuel Consumption | 3.68 litres/100 km (27.2 km/l or 63.92 mpg) |
| Greenhouse Gases | 85.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Black Two-into-one |
| Front Brakes | Single disc. Twin piston, floating caliper, optional ABS |
| Front Suspension | Telescopic fork |
| Front Tyre | 100/80-R17 |
| Rake | 32.0° |
| Rear Brakes | Single disc. Twin piston, floating caliper, optional ABS |
| Rear Suspension | Dual shocks |
| Rear Tyre | 140/75-R15 |
| Seat | Two-up seat |
| Trail | 114 mm (4.5 inches) |
| Wheels | Black 7-spoke cast aluminum |
| Dry Weight | 206.4 kg (455.0 pounds) |
| Fuel Capacity | 13.25 litres (3.50 gallons) |
| Ground Clearance | 145 mm (5.7 inches) |
| Oil Capacity | 3.10 litres (0.20 quarts) |
| Overall Length | 2,225 mm (87.6 inches) |
| Seat Height | 653 mm (25.7 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 222.0 kg (489.4 pounds) |
| Color Options | Vivid Black, Black Denim, Superior Blue, Velocity Red Sunglo |
| Light | High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning |
| Starter | Electric |
