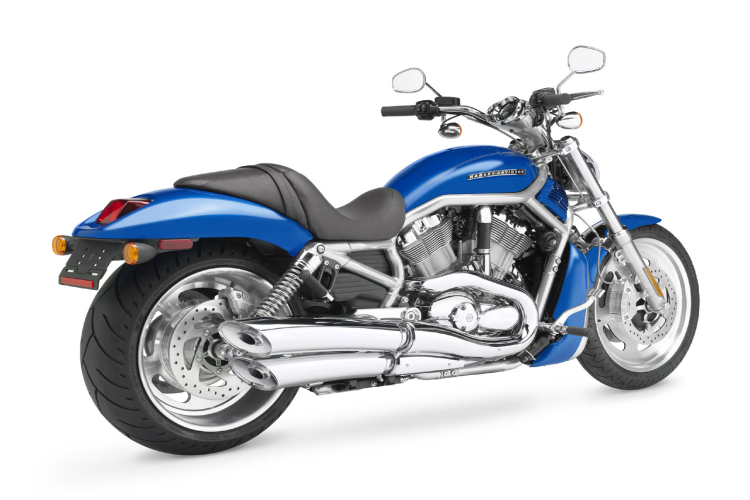

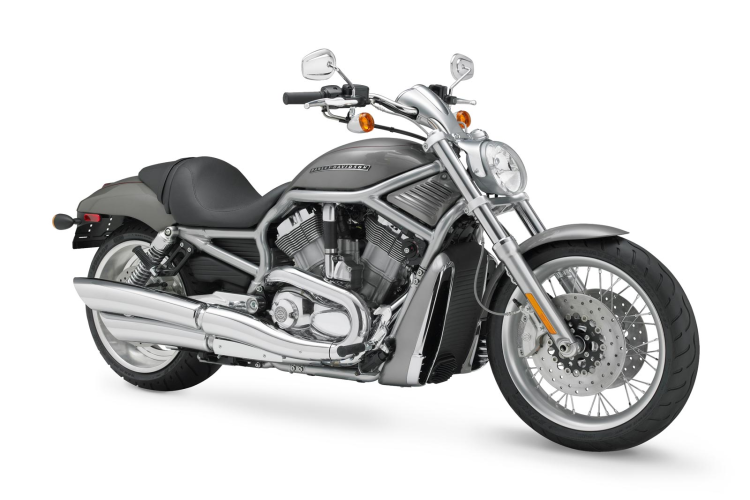

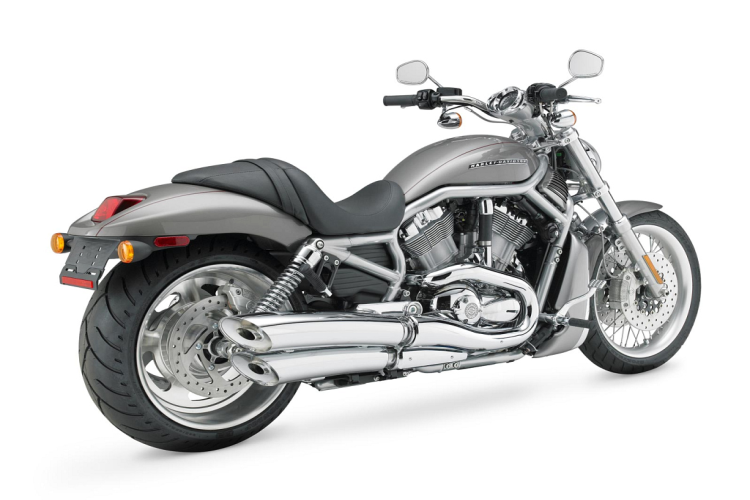

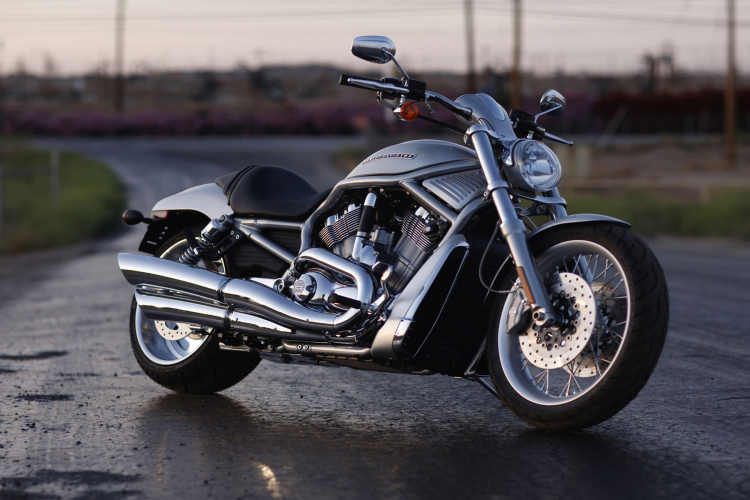

Harley-Davidson VRSCAW V-Rod 2009 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Engine Details | V2, four-stroke |
| Torque | 113.90 Nm (11.6 kgf-m or 84.0 ft.lbs) @ 7000 RPM |
| Compression | 11.5:1 |
| Bore X Stroke | 104.9 x 71.9 mm (4.1 x 2.8 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Fuel Consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse Gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Chrome, slash-cut exhaust with dual mufflers |
| Displacement | 1573.00 ccm (95.98 cubic inches) |
| Cooling System | Liquid |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Valves Per Cylinder | 4 |
| Front Brakes | Single disc. 4-piston calipers |
| Front Tyre | 120/70-ZR19 |
| Rake | 34.0° |
| Rear Brakes | Single disc. 2-piston torque-free calipers |
| Rear Tyre | 240/40-R18 |
| Trail | 114 mm (4.5 inches) |
| Frame Type | Steel perimeter upper frame with hydroformed main rails; and bolt-on lower frame rails, MIG welded |
| Front Brakes Diameter | 300 mm (11.8 inches) |
| Front Suspension | Wide, 49mm custom fork |
| Front Wheel Travel | 102 mm (4.0 inches) |
| Rear Brakes Diameter | 300 mm (11.8 inches) |
| Rear Suspension | Preload adjustable |
| Rear Wheel Travel | 102 mm (4.0 inches) |
| Dry Weight | 288.9 kg (637.0 pounds) |
| Fuel Capacity | 18.92 litres (5.00 gallons) |
| Ground Clearance | 127 mm (5.0 inches) |
| Overall Length | 2,398 mm (94.4 inches) |
| Seat Height | 688 mm (27.1 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 303.9 kg (670.0 pounds) |
| Oil Capacity | 4.40 litres (0.29 quarts) |
| Color Options | Vivid Black, Black Pearl, Pewter Pearl, Dark Blue Pearl (New), Candy Red Sunglo (New), Two-Tone Pacific Blue Pearl/Vivid Black (New), 105th Anniversary Copper Pearl/Vivid Black, Purple Haze (Custom), Copperhead Pearl and Red Hot (Custom), Golden Glow and |
| Comments | Two-toned, silver and charcoal powertrain with chrome covers (annivesary model features black powertrain with chrome covers); steel frame with leafy aluminum clear coat paint (annivesary model features steel fram with Vivid Black paint); welded handlebar with clamshell instrumentation; Low 26-in. seat height; 240mm wide rear tire; forward-mounted foot controls |
| Starter | Electric |
