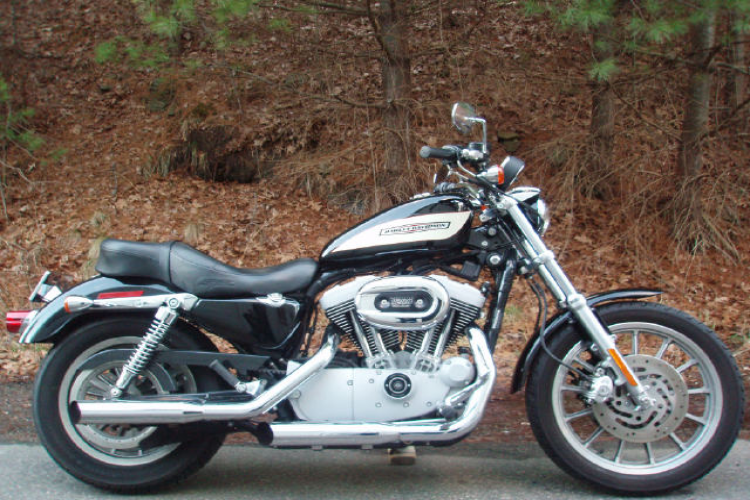

Harley-Davidson XL 1200 R Sportster Roadster 2004 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Valves Per Cylinder | 2 |
| Fuel System | Carburettor |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Displacement | 1202.00 ccm (73.35 cubic inches) |
| Engine Details | V2, four-stroke |
| Torque | 93.00 Nm (9.5 kgf-m or 68.6 ft.lbs) @ 3300 RPM |
| Compression | 10.0:1 |
| Bore X Stroke | 88.8 x 96.8 mm (3.5 x 3.8 inches) |
| Front Brakes | Double disc |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Tyre | 100/90-19 |
| Rake | 29.6° |
| Rear Brakes | Single disc |
| Rear Brakes Diameter | 292 mm (11.5 inches) |
| Rear Tyre | 150/80-16 |
| Trail | 117 mm (4.6 inches) |
| Dry Weight | 251.0 kg (553.4 pounds) |
| Fuel Capacity | 12.90 litres (3.41 gallons) |
| Ground Clearance | 112 mm (4.4 inches) |
| Overall Length | 2,245 mm (88.4 inches) |
| Overall Width | 713 mm (28.1 inches) |
| Seat Height | 713 mm (28.1 inches) If adjustable, lowest setting. |
| Color Options | Vivid black, brilliant silver, luxury teal, smokey gold, real red, impact blue, lava red sunglo, racing orange |
| Comments | Silver powder-coated engine and covers with black powder-coated cylinders and cylinder heads; triple-disc brakes; tachometer; high compression, high flow cylinder heads; performance cams; wide polished handlebars; chrome headlight visor |
