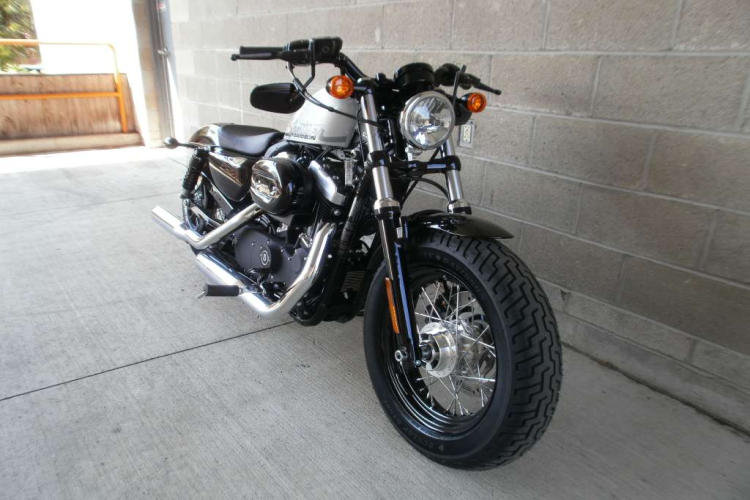

Harley-Davidson XL 1200X Sportster Forty-Eight 2010 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1200.00 ccm (73.22 cubic inches) |
| Engine Details | V2, four-stroke |
| Torque | 107.00 Nm (10.9 kgf-m or 78.9 ft.lbs) @ 4000 RPM |
| Compression | 9.7:1 |
| Bore X Stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication System | Dry sump |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate, wet |
| Fuel Consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse Gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Chrome, shorty dual exhaust with slash-cut mufflers |
| Front Brakes | Single disc. Dual Piston |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Suspension | 39mm |
| Front Tyre | MT90-B16 |
| Front Wheel Travel | 92 mm (3.6 inches) |
| Rake | 29.9° |
| Rear Brakes | Single disc. Single piston |
| Rear Brakes Diameter | 292 mm (11.5 inches) |
| Rear Suspension | Coil-over, preload dual adjustments |
| Rear Tyre | 150/80-B16 |
| Rear Wheel Travel | 41 mm (1.6 inches) |
| Trail | 119 mm (4.7 inches) |
| Dry Weight | 247.0 kg (544.5 pounds) |
| Fuel Capacity | 8.00 litres (2.11 gallons) |
| Ground Clearance | 99 mm (3.9 inches) |
| Oil Capacity | 2.60 litres (0.17 quarts) |
| Overall Height | 1,067 mm (42.0 inches) |
| Overall Length | 2,250 mm (88.6 inches) |
| Overall Width | 831 mm (32.7 inches) |
| Seat Height | 680 mm (26.8 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 257.0 kg (566.6 pounds) |
| Color Options | Vivid Black, Brilliant Silver, Mirage Orange |
| Comments | Peanut fuel tank. Solo seat. Bobbed fenders. A blacked-out engine. Low handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, LED indicator lights. |
| Starter | Electric |
